7 P&P and TWIN Heads
7.1 Overview
NOTE:
The following descriptions for the D3 TWIN Head also apply correspondingly for the D1 P&P
head.
The D1 P&P head corresponds to one of the two D3 TWIN segments.

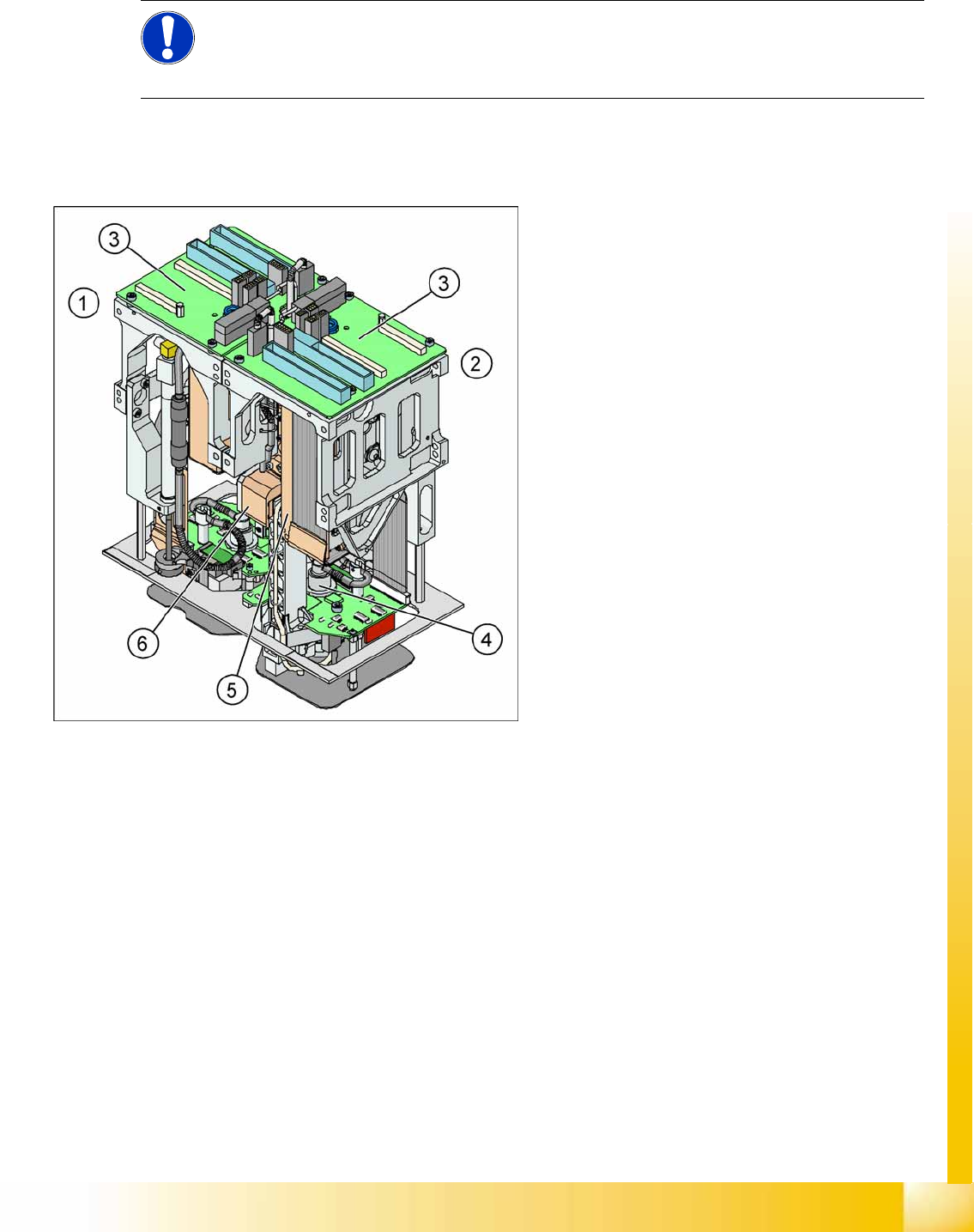

Legend
1. Module 1
2. Module 2, rotate by 180 ° compared to module
1.
3. Main board on module 1 and module 2
4. D axis.
5. Linear motor Z-axis
6. Z-axis incremental measurement system
The TWIN Head consists of two identical modules
which work according to the Pick&Place principle.
The second P&P head is rotated 180 degrees.
New nozzles have been developed for the TWIN
Head (type 5xx). However, the nozzles of the
Pick&Place head type 4xx and the nozzles of the
Collect&Place heads type 8xx and 9xx can still be
used with an adapter.
P&P and TWIN Heads
Overview Technical Data TWIN Head
Student Guide Advanced Level 1 SIPLACE D-Series
P&P and TWIN Heads EN 05/2007
7-2
7.1.1 Technical Data TWIN Head
Placement accuracy (X/Y) 35µm by 4 sigma with IC camera
Placement accuracy (X/Y) 30µm by 4 sigma with FC camera
Placement accuracy (angle) 0.07° by 4 sigma
Placement speed 3500 comp./h
Maximum component size: 50 up to 40 mm (single measurement on both segments)
69 up to 10 mm (multiple measurement on both segments)
125 up to 10mm (multiple measurement on one segment)
200 up to 125mm (multiple measurement with restrictions on one
segment)
Max. component height 25 mm
Placement force 1 - 15 N
D-axis / resolution Direct drive / 0.001 degrees
Z-axis / resolution Linear motor / 0.5 µm
Travel range Z-axis app. 60 mm
Nozzle types 5xx (4xx, 8xx, 9xx with adapter)
Distance between the segments app. 71.00 mm
Max. weight of component 100 g
Option - high force TWIN Head placement
force
max. 30 N (X-series only)
