P&P and TWIN Heads Functions Room for Your Sketches and Notes S tude nt Guide Advanced Level 1 SIPLACE D-Series EN 05/2007 P&P and TWIN Heads 7-15 7.5 Room for Y our Sketches and Notes
P&P and TWIN Heads
Nozzle Changer Position and Assembly Functions
Student Guide Advanced Level 1 SIPLACE D-Series
P&P and TWIN Heads EN 05/2007
7-14

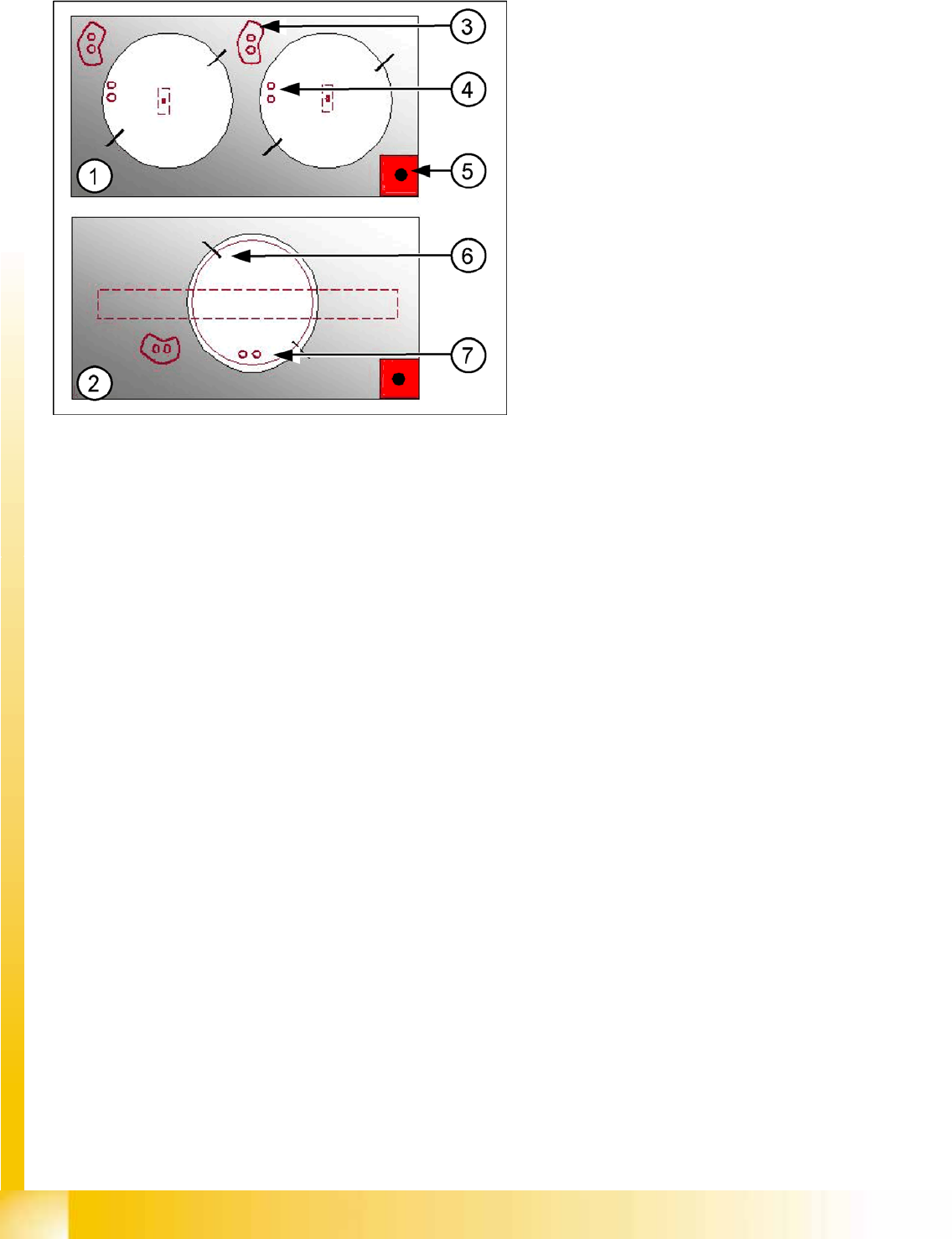

Position of the nozzle in the magazines
There is another special nozzle for the Twin head, the so-called low force nozzle. This requires a special
garage, which is not listed here.
Legend
1. Double magazine for standard nozzles (pickup
angle SW 505 = 184°)
2. Magazine for special nozzles or grippers
(pickup angle SW 505 = 275°)
3. Index pins for correct positioning of nozzles in
magazine
4. Position of nozzle with the holes for the index
pins.
5. Calibration fiducial for determining the
magazine position
6. Nozzle centering pins
7. The magazines for the special nozzles are
turned by 90° degrees.
P&P and TWIN Heads
Functions Room for Your Sketches and Notes
Student Guide Advanced Level 1 SIPLACE D-Series
EN 05/2007 P&P and TWIN Heads
7-15
7.5 Room for Your Sketches and Notes
P&P and TWIN Heads
Room for Your Sketches and Notes Functions
Student Guide Advanced Level 1 SIPLACE D-Series
P&P and TWIN Heads EN 05/2007
7-16
