Component Handling
Docking and Undocking the Changeover Table Overview
Student Guide Advanced Level 1 SIPLACE D-Series
EN 05/2007 Component Handling
8-5
8-2: Component trolley - swinging up the handles for pushing the trolley
Legend
X Use both hands to pull the component trolley out of the machine by the handles.
X Press the button to lower the changeover table (2). This ensures that the component trolley does not
tip over so easily, when outside the machine.
Docking the component trolley
X Check whether the contact surface for the changeover table plate is clean.
X Carefully push the component trolley near to the machine.
X Plug the component trolley connection cable into the machine.
X Open the cover flap over the pushbutton for lifting the changeover table.
X If the "lower table only with connected compressed air supply" option is installed at the changeover
table, raise the table.
X Press the pneumatic button on the machine frame until the changeover table plate has reached its
top position.
X Carefully push the component trolley into the machine, as far as the end stopper.
X Check whether the centering holes in the changeover table plate are positioned exactly over the
centering bolts of the machine.
X Press the button to lower the changeover table plate.
1 Handle 2 Switch for lowering the changeover table
NOTE:
Shorten the tapes at the front end of the S feeder modules to around 3 cm, before you dock the
component trolley.
CAUTION:
Check whether the placement head is outside the component trolley travel range.
DANGER:
When lowering the changeover table plate, never reach into the gap between the feeder
modules and the empty tape duct.
Component Handling
Overview Docking and Undocking the Changeover Table
Student Guide Advanced Level 1 SIPLACE D-Series
Component Handling EN 05/2007
8-6
X Make sure that the centering bolts engage with the centering holes in the changeover table plate and
that the changeover table plate has been fully lowered.
X Close the cover flap on the pushbutton.
X Close the protective hood.
X Press the START button to start the machine.
X Pull the tube (1) upwards at both handles and then swing the handles down (2).
8-3: Component trolley - swinging down the handles for pushing the trolley
Legend
Safety Instructions for Moving the Component Trolley
1 Pulling the tube upwards 2 Swinging the handles down
WARNING:
To prevent accidents, ALWAYS follow the rules listed below when you move the component
trolley.
X Always hold the handles with both hands when you want to move the component trolley.
X Remember that a component trolley with the full complement of feeder modules can tip over
sideways or forwards on gradients of 20 or more.
X Make sure that the surface on which the trolley is moved has a significantly smaller gradient.
X Be careful not to collide with obstacles. The trolley could tip forward if it is traveling fast
enough.
X Before the component trolley is moved, make sure that it has been lowered.
Component Handling
Optional Extension on the COT Changeover Table
Student Guide Advanced Level 1 SIPLACE D-Series
EN 05/2007 Component Handling
8-7
8.2 Changeover Table
8.2.1 Optional Extension on the COT
8.2.1.1 Holder for the Third Tape Reel on 3x8mm S Feeder Modules
The following parts are needed for the middle tape reel:
An adapter plate to hold the tape reel holder (1)
One tape reel holder for every two feeder modules (2).
The adapter plate is fixed with four fillister head screws to the component trolley, while the tape reel
holder is plugged into the square openings in the adapter plate.

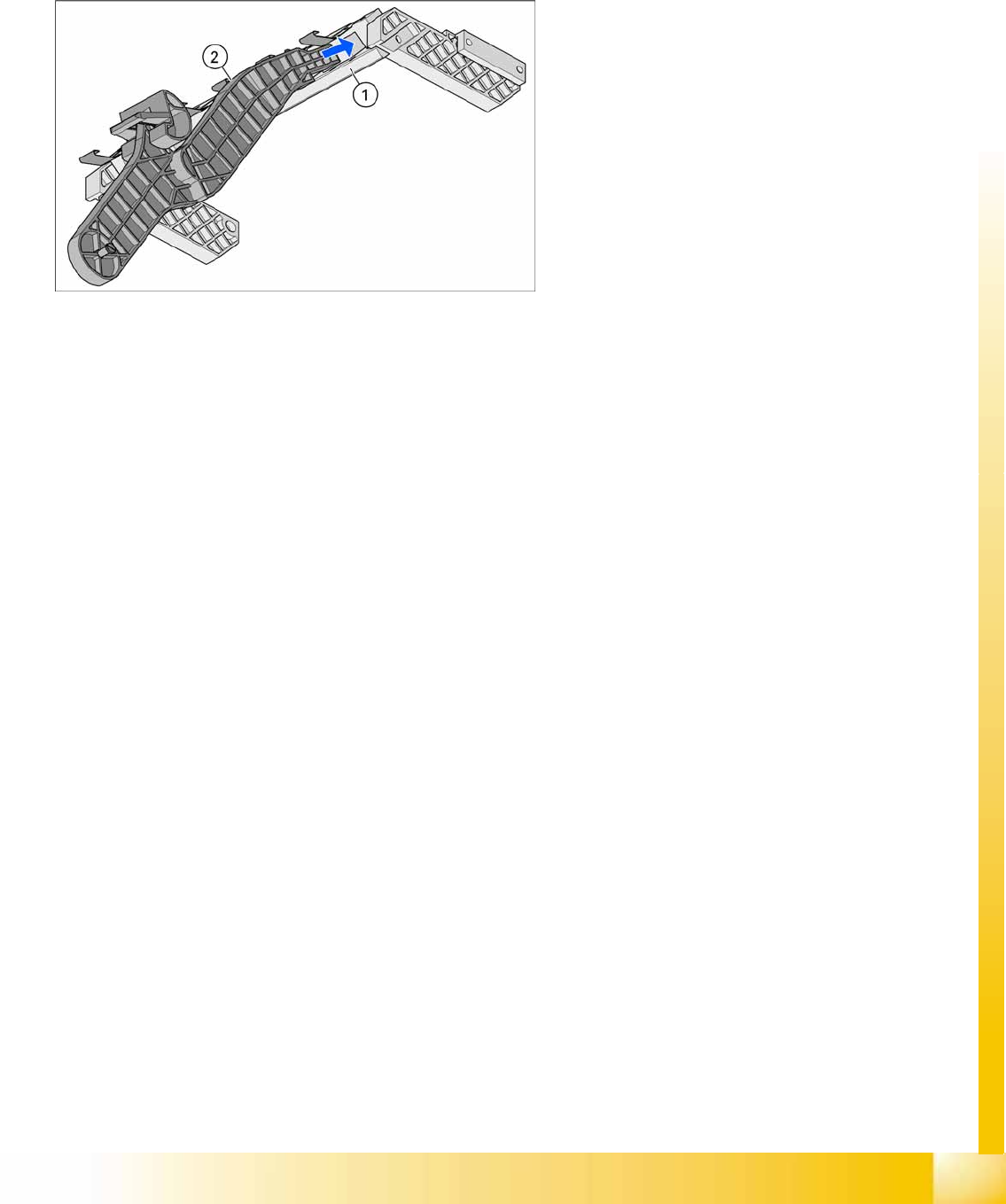

8-4: Holder for middle tape reel in 3 x 8 mm S feeder modules, with D3 shown
as example (the diagram does not show the actual installation position in the
changeover table - the side part of the adapter plate (1) is vertical there).
Legend
1. Adapter plate
2. Tape reel holder
Feeder modules of type 3 x 8 mm-S transport
components in three feeder tracks to the pickup
position. The tape reels on the two outer tracks are
located between the divider sheets in the tape
container. The middle tape reel is located above
the two tape reels for the outer tracks.
