Component Handling Optional Extension on the COT Changeover Table S tude nt Guide Advanced Level 1 SIPLACE D-Series EN 05/2007 Comp onent Handling 8-9 8.2.1.2 External Power Supply To keep the time for setup changeover s…
Component Handling
Changeover Table Optional Extension on the COT
Student Guide Advanced Level 1 SIPLACE D-Series
Component Handling EN 05/2007
8-8

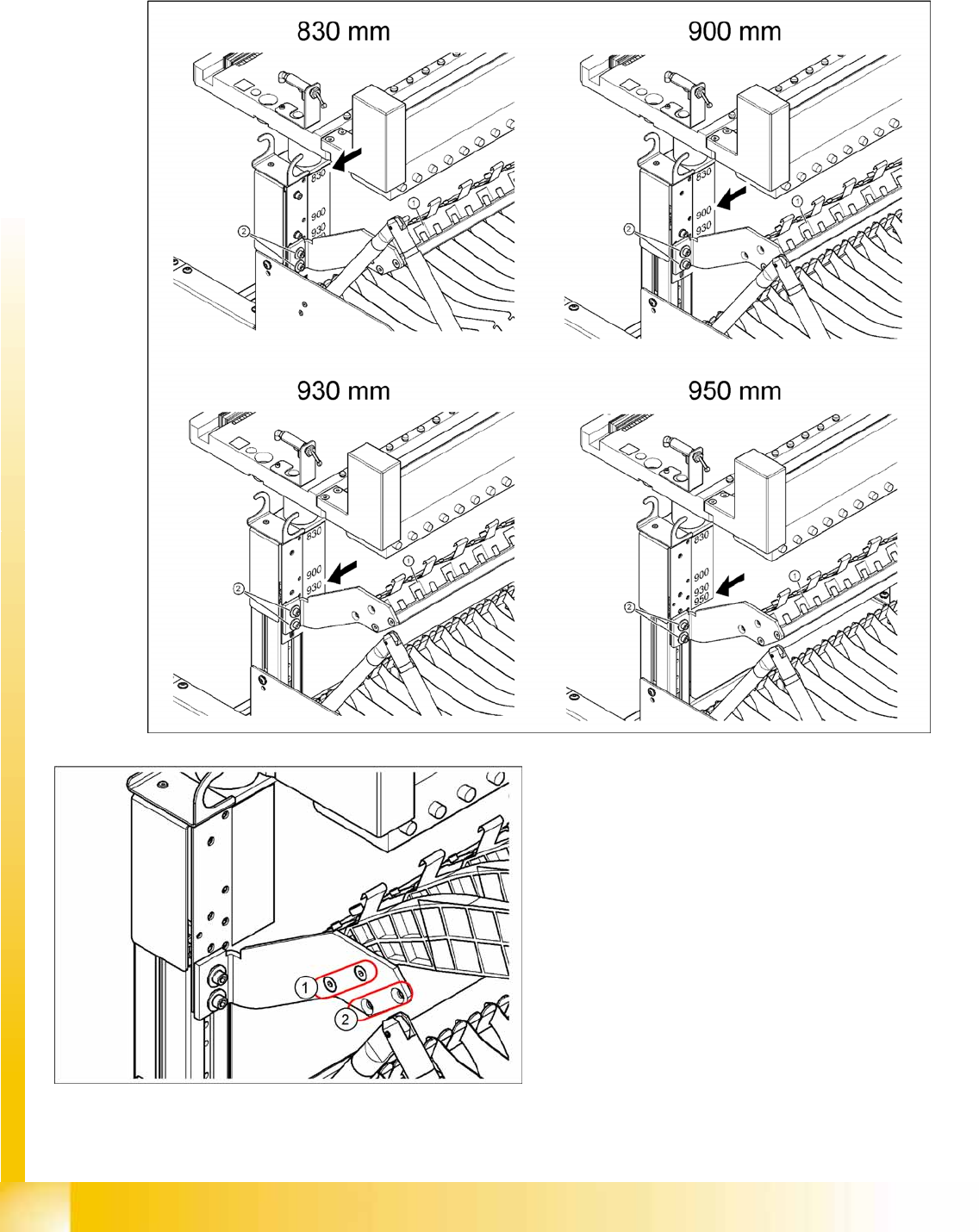

Installation position of adapter plate
Due to the various machine heights, D machines have four different installation positions for the holder
of the third tape reel (adapter plate).
Legend
1. Adapter plate installation position without
splice detection
2. Adapter plate installation position with splice
detection
Component Handling
Optional Extension on the COT Changeover Table
Student Guide Advanced Level 1 SIPLACE D-Series
EN 05/2007 Component Handling
8-9
8.2.1.2 External Power Supply
To keep the time for setup changeovers to a minimum, the component trolleys can be set up at an
external setup location. The feeder module functions and settings can also be checked there as part of
the preparations for operation. An external power supply unit is available for this purpose. The
component trolley is supplied with the required operating voltage and compressed air via a supply cable.
Technical data
Scope of delivery
Voltage supply
Power supply cables (European and US standards)
Connection cables for the three machine types D1/D2, D3 and D4
Max. tape reel size Installation position of 3rd
holder
830 mm without splice detection 43.2 mm (17") Up
830 mm with splice detection 38.1 mm (15") Down
900 mm with splice detection 48.3 mm (19") Up
900 mm without splice detection 48.3 mm (19") Down
930 / 950 mm with or without splice detection 48.3 mm (19") Either
NOTE:
For further details, refer to the installation guide for the "Adapter 3rd tape reel".
Line voltage 230 V~ ±5 %
120 V~ ±5 %
Compressed air connection max. 1.0 MPa (10 bar)
Output pressure Adjustable via valve
Component Handling
Changeover Table Optional Extension on the COT
Student Guide Advanced Level 1 SIPLACE D-Series
Component Handling EN 05/2007
8-10
8.2.1.3 Compressed Air Supply for Bulkcase Feeders
8.2.1.4 Fixtures for S-Feeders
8-5: Compressed air supply for bulkcase feeders
Legend
1. Compressed air distributor
2. 2 x screw DIN 912, M8x20
3. Feeder table plate
4. Brackets
5. Compressed air connections for bulkcase
feeders
Bulkcase feeders require compressed air. The
optional compressed air supply for bulkcase
feeders is available for this purpose.
Installation is easy. The compressed air distributor
(1) is fixed with two screws (2) to the changeover
table (3). The compressed air distributor is then
connected to the component trolley compressed
air supply. At the back of the compressed air
distributor, there is a row of brackets (4). These fix
the bulkcase feeder modules to the changeover
table, ensuring optimum compressed air supply.
8-6: Feeder fixtures (HF shown as example)
Legend
1. Feeder fixtures
2. Changeover Table
The Feeder-Fixing is an additional mechanical
safety precaution. It prevents accidental
movement of the feeder on the changeover table.
It excludes a head crash risk with a wrong
positioned feeder. The feeder-fixation is mounted
on the front side of the changeover table. The
claws fix the feeder feet. A feeder clamp can be
installed for each of the component trolleys.
