SITEST
Head Mapping (C&P Head) Calibration Basics
Student Guide Advanced Level 1 SIPLACE D-Series
EN 05/2007 SITEST
9-15
9-8: Result of PCB mapping
The results will be saved in the file
MAPP_xy.MA
(x= gantry number, y= conveyor lane).
9.3.6 Head Mapping (C&P Head)
Head mapping measures the linearity of the C&P head X/Y guidance.
The C&P head places the calibration tool precisely on the default positions of the mapping plate. The
PCB-camera measure the placement accuracy of this placements for the whole placement area.
After the PCB mapping the placement head place at the theoretical positions of the PCB-mapping
the calibration tool.
The PCB camera measures the placement accuracy with the help of the 4 calibration tool fiducials
on the calibration tool upper side.
NOTE:
All described automatically calibration steps above, can you do manually step by step under the
sub menus (see chapter 12.1).
SITEST
Calibration Basics New Functions in SITEST
Student Guide Advanced Level 1 SIPLACE D-Series
SITEST EN 05/2007
9-16
9.3.7 New Functions in SITEST
9.3.7.1 Transport Menu

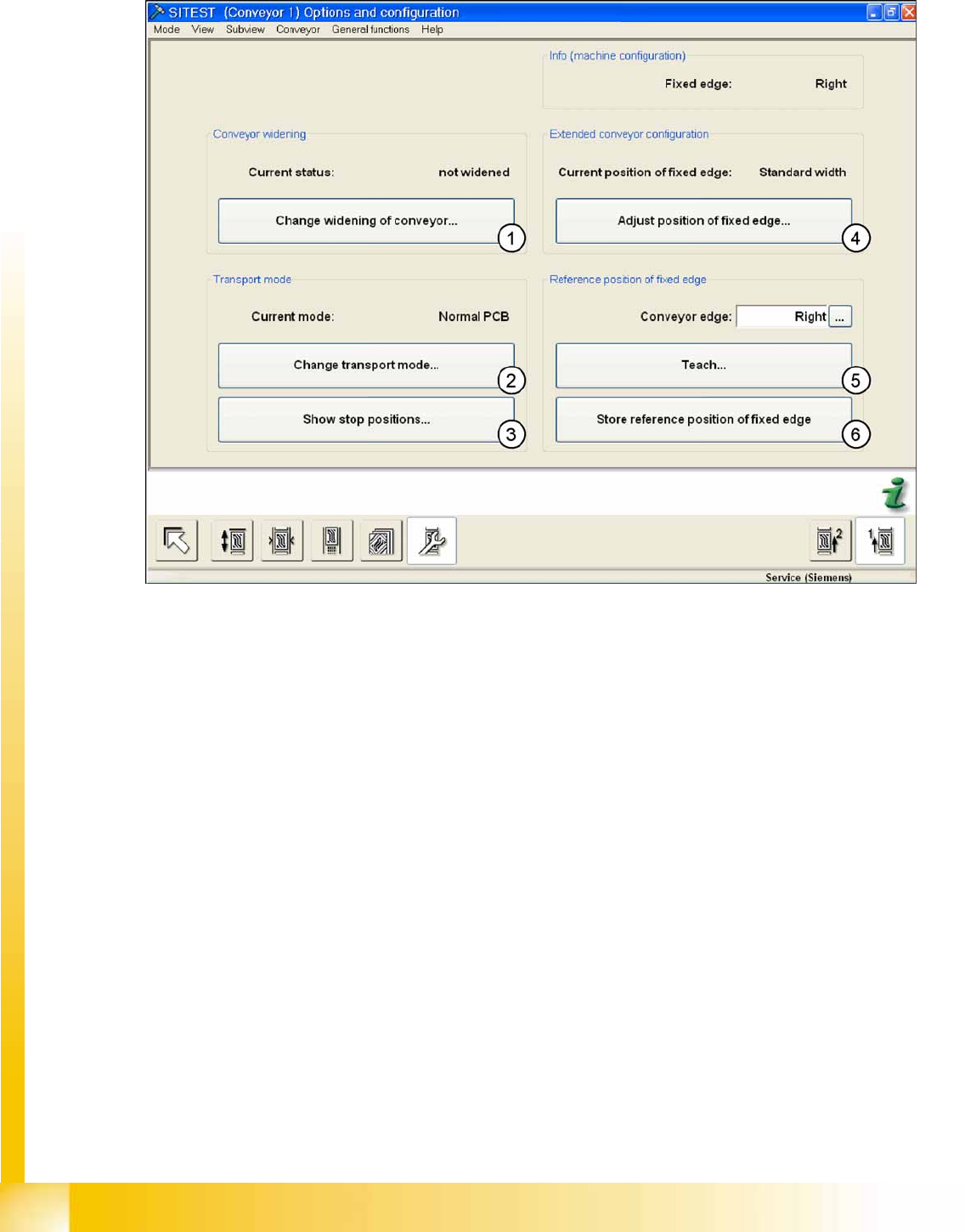

9-9: Transport - option and configuration
Legend
1.
Changing the conveyor width
(only for lane 1, if dual conveyor):
You will see a submenu, in which you can select
Widened
or
Not widened
(standard width).
Widened means that lane 2 is moved together (to the limit switch), while the fixed side for lane 1
remains in its position. (max. width of lane 1 = 380 mm)
If point 4 is selected first (extra wide) this gives a max. width for lane 1 of 430 mm.
2.
Change transport mode
:
This function is used to configure the option
Long Board
.
Next menu:
normal PCB/ long PCB
3.
Show stop positions
:
shows the number of position in PA 1 and PA2, additional the offset depend on the standard position
(PCB Reference- corner). The offset for the option
Long Board
is set by SIPLACE Pro.
4. This enables you to move the fixed conveyor side in its standard position to accommodate standard
or extra wide boards (values from the conveyor control machine data).
Extra wide means that the fixed side is moved up to 26 mm. (dual conveyor lane 1 and lane 2 =
242 mm, flexible dual conveyor lane 1 = 430 mm, single conveyor = 508 mm)
5. Point 5 and 6 only with Siemens Service password active! The fixed conveyor side (
left, right
) can
be taught.
6. Save the teach data from point 5.
SITEST
New Functions in SITEST Calibration Basics
Student Guide Advanced Level 1 SIPLACE D-Series
EN 05/2007 SITEST
9-17
9.3.7.2 Function Firmware Download
X , select
Settings
from the SITEST menu and then
FirmwareDownload
.
9-10: Overview of firmware download
NOTE:
For versions up to SC/MC SW 603, this function is only available to SIEMENS service
personnel.
From SC/MC SW 604, the downloads performed with SITEST to all components can also be
executed by customer service technicians.
