SIPLACE Vision Room for Your Sketches and Notes Error Processing at Fiducial Recognition Du ring Placement Op erations S tuden t Guide Advanced Level 1 SIPLACE D-Series SIPLACE Vision EN 05/2007 10-18
SIPLACE Vision
Error Processing at Fiducial Recognition During Placement Operations Room for Your Sketches and Notes
Student Guide Advanced Level 1 SIPLACE D-Series
EN 05/2007 SIPLACE Vision
10-17
10.2 Room for Your Sketches and Notes
SIPLACE Vision
Room for Your Sketches and Notes Error Processing at Fiducial Recognition During Placement Operations
Student Guide Advanced Level 1 SIPLACE D-Series
SIPLACE Vision EN 05/2007
10-18
SIPLACE Measuring Tools
Axis Test Box (Old Version) and Adapter Board
Student Guide Advanced Level 1 SIPLACE D-Series
EN 05/2007 SIPLACE Measuring Tools
11-1
11 SIPLACE Measuring Tools
11.1 Axis Test Box (Old Version) and Adapter Board
Item No.: Axis test box, including adapter board [00303430-06]
Item No.: Axis test box [00328041-05]
Item No.: Cable [00304771-03]
Item No.: Adapter board [00328040-01]
Application:
Compare the axis dynamics of the placement head and gantry axes.

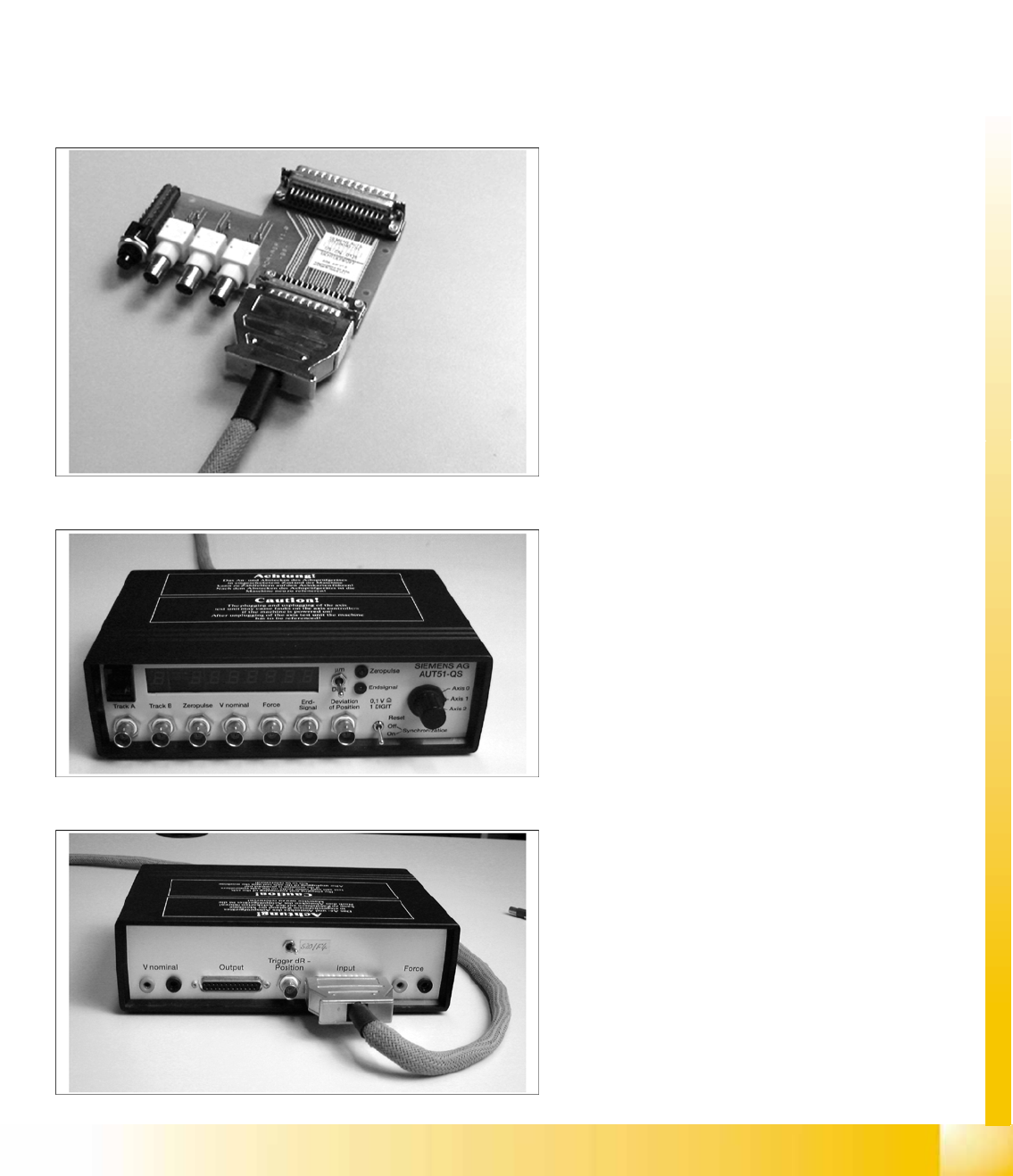

Adapter board for axis text box
Item No.: [00328040-01]
Axis test box SIPLACE – front
Item No.: [00328041-05]
Axis test box SIPLACE – back
Item No.: [00328041-05]
