Overview
Sectors Assemblies
Student Guide Advanced Level 1 SIPLACE D-Series
EN 05/2007 Overview
3-9
3.4.2 Sectors
Sector 1:
Transport control TSP 301
CAN interface CAN Bus baudrate 500 KBit/s for S tables
Assembly A3 CAN terminating resistor for S table location 1
Vision DC/DC converter illumination digital camera gantry 1 - 4 (03002280-02)
Terminal X100 power supply
Pneumatic switch for changeover table 1
Sector 2:
CAN I/O module 2 with CAN interface 500 KBit/s for S tables
Assembly A3 CAN terminating resistor for S table location 2
2x fuse 24 V
Relay K1 station – compressed air shutoff
Terminal X200 power supply
Pneumatic switch for changeover table 2
Sector 3:
CAN interface CAN Bus baudrate 500 KBit/s for S tables
Assembly A3 CAN terminating resistor for S table location 3
Terminal X300 power supply
Pneumatic switch for changeover table 1
Sector 4:
CAN I/O module 2 with CAN interface 500 KBit/s for S tables
Assembly A3 CAN terminating resistor for S table location 4
2x fuse 24 V
Terminal X400 power supply

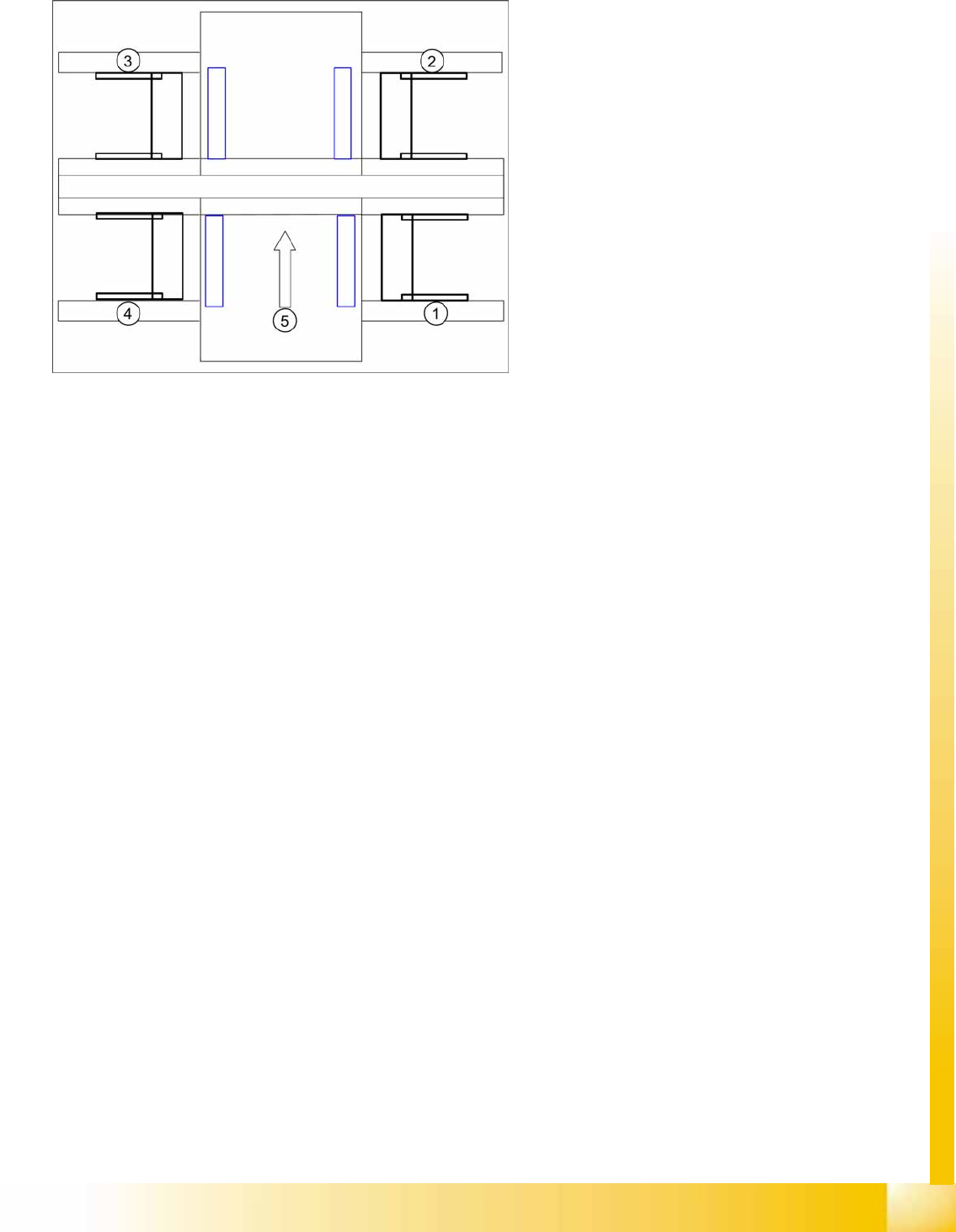

3-4: SIPLACE D4 sectors
Legend
1. Sector 1
2. Sector 2
3. Sector 3
4. Sector 4
5. Transport direction
Overview
Assemblies Axis Unit and Computer Unit
Student Guide Advanced Level 1 SIPLACE D-Series
Overview EN 05/2007
3-10
Pneumatic switch for changeover table 1
3.4.3 Axis Unit and Computer Unit
Axis unit 1 – installation set on the PCB input side:
Servo board X, Y, star, Z, DP for PA1
3x Axis board A364
2x power supply 5V/15A, +/-15V
Computer unit
Box PC with CD-ROM drive (SR, SIPLACE Vision)
Micro Box PC (MC)
Multiplexer
USB hub
Axis unit 2 – installation set on the PCB output side:
Servo board X, Y, star, Z, DP for PA2
3x Axis board A364
2x power supply 5V/15A, +/-15V
Ballast circuit

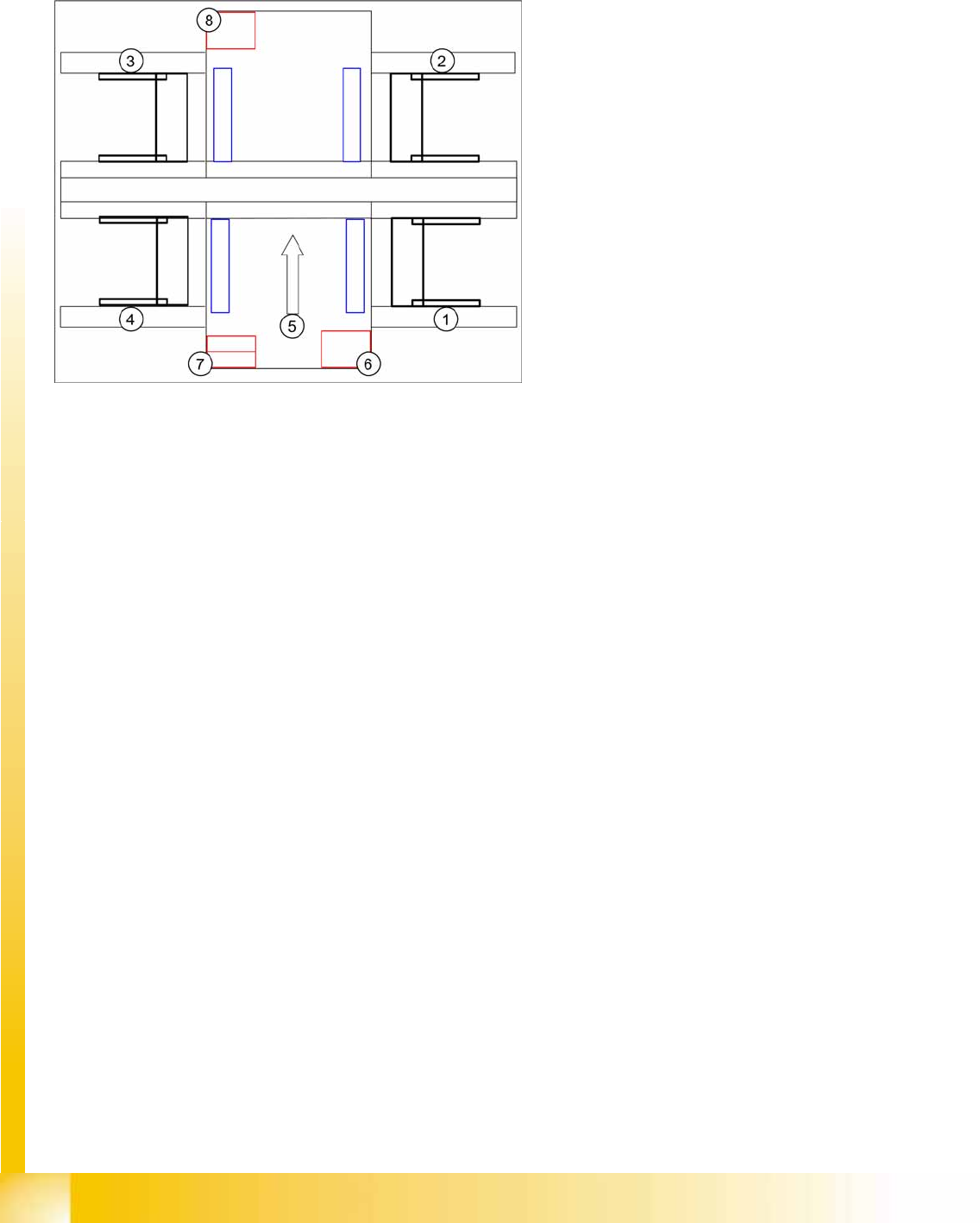

3-5: Axis unit and computer unit
1. Sector 1
2. Sector 2
3. Sector 3
4. Sector 4
5. Transport direction
6. Axis unit 1
7. Computer Unit
8. Axis unit 2
Overview
Axis Unit and Computer Unit Assemblies
Student Guide Advanced Level 1 SIPLACE D-Series
EN 05/2007 Overview
3-11
3.4.3.1 Computer Unit
1. Station computer Siemens Simatic Box PC (SR-SW, SIPLACE Vision SW)
2x Hotlink boards for SIPLACE Vision, connected to the digital cameras
4x USB port
2x LAN Ethernet (LAN 1 connected to MC, LAN 2 hub or SIPLACE Pro)
1x VGA connection, connected to Multiplexer (monitor)
Voltage supply 24 V DC
The status display and the H1/H2 are active on the computer counterpart, while the BIOS is loaded.
2. Machine controller Siemens Simatic Micro Box PC (RMOS SW)
2x LAN Ethernet (LAN 1 (2c) connected to SC, LAN 2 - not in use)
4x USB port
1x VGA connection, connected to Multiplexer (monitor)
COM assembly – CAN 1 (2a) for PA1– CAN 2 (2b) for PA2
Voltage supply 24 V DC
3. Multiplexer (switch over between SR and MC)
4. USB hub 2.0 – 4 port (or 7 port)
Voltage supply connection
USB input from station computer
4x (7x) USB outputs - 2x keyboard, 2x touchscreen (3x free)
5. External CD-ROM drive with USB interface (also for MC)

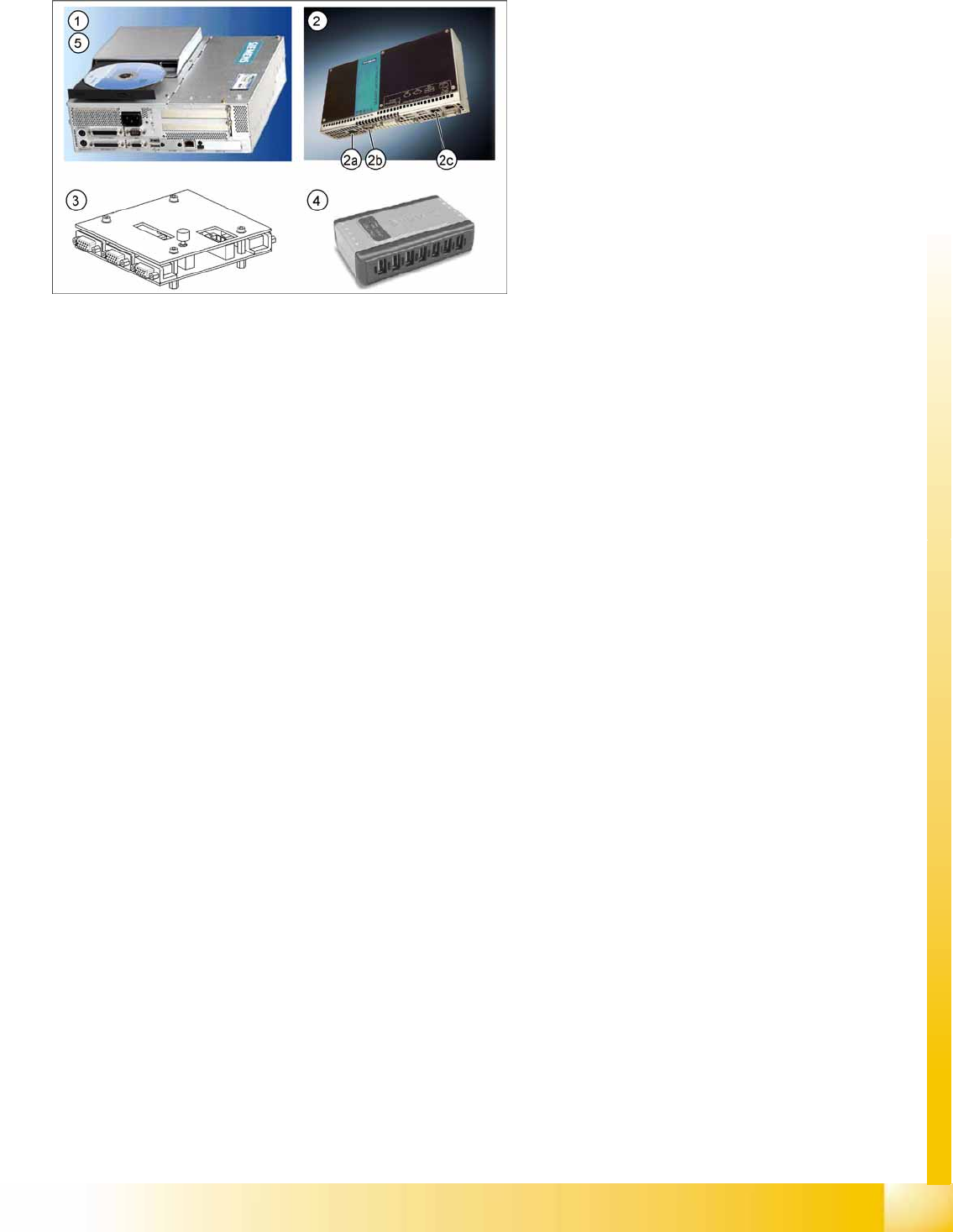

3-6: Computer unit D4
Legend
1. Station computer Siemens Simatic Box PC
2. Machine controller Siemens Simatic Micro Box
PC
3. Multiplexer
4. USB hub
5. USB CD-ROM drive
