Overview Assemblies Axis Unit and Computer Unit S tuden t Guide Advanced Level 1 SIPLACE D-Series Overview EN 05/2007 3-14 Servo Positions D4 /D2 Axis Controller Boards 3-8: Axis controller boards Servo positions for eac…
Overview
Axis Unit and Computer Unit Assemblies
Student Guide Advanced Level 1 SIPLACE D-Series
EN 05/2007 Overview
3-13
3.4.3.3 Axis Unit
The axis unit contains the servo boards, axis controller boards, power supply (+/-15V,+5V) and the
ballast circuit (only in axis unit 2). The flexible axis unit is equipped with the correct servo and axis boards
for the machine type and head configuration concerned (with C&P12).
Overview of axis unit
D4 machine axis unit in PA1 for gantries 1 and 4 axis unit in PA2 for gantries 2 and 3

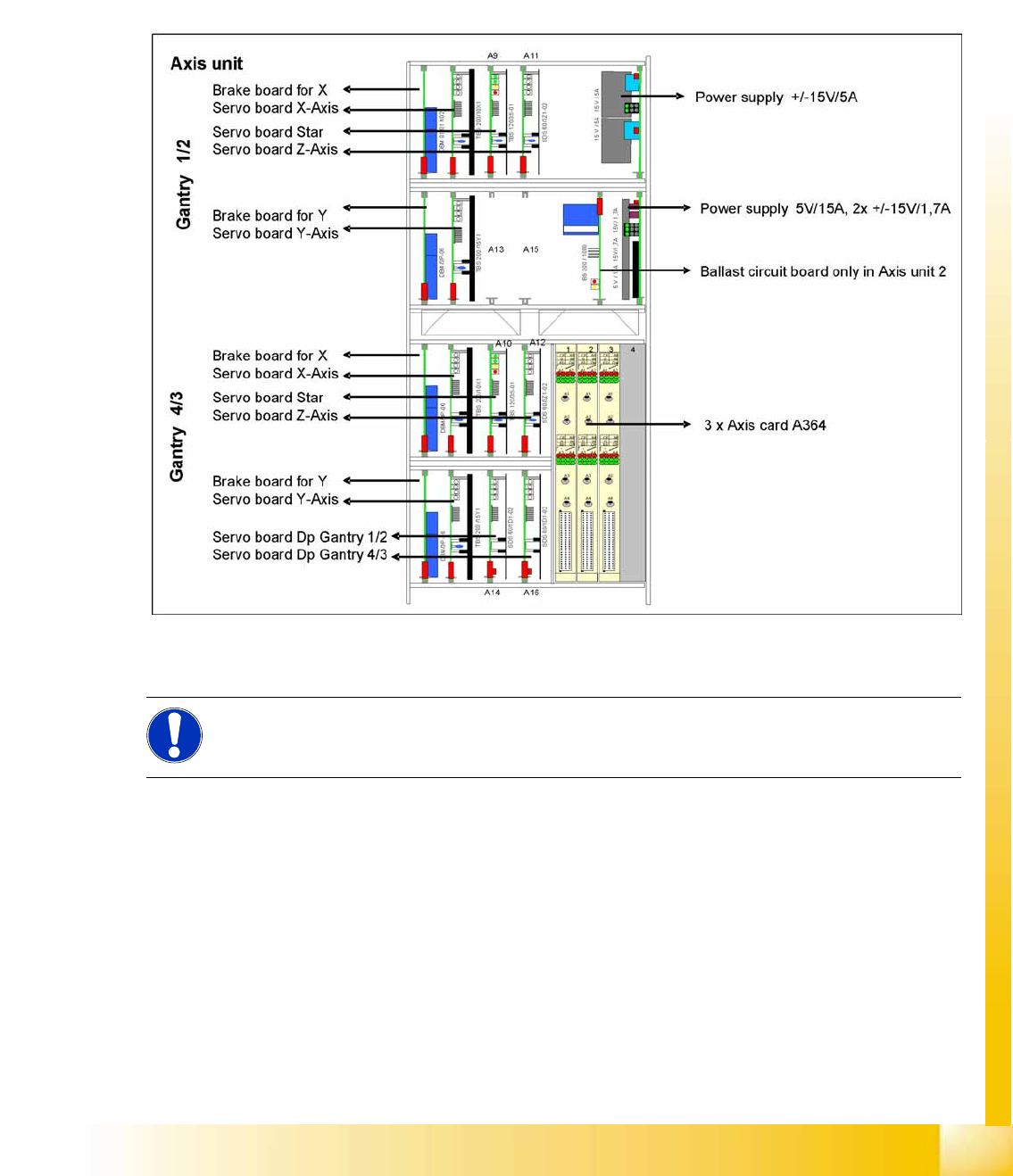

Axis Unit SIPLACE D4
3-7: Axis Unit
The axis unit is located near the PCB input or output.
NOTE:
The two power pack assemblies have a different version from 01/2007 and replace the
assemblies shown.
Overview
Assemblies Axis Unit and Computer Unit
Student Guide Advanced Level 1 SIPLACE D-Series
Overview EN 05/2007
3-14
Servo Positions D4/D2
Axis Controller Boards
3-8: Axis controller boards
Servo positions for
each level
D4 D2
C&P type
PA1
C&P type
PA2
C&P type P&P type (next
generation)
x Gantry 1 Gantry 2 Gantry 1 Gantry 1
A9 Star 1 Star 2 Star 1 Z-axis 1
A11 Z-axis 1 Z-axis 2 Z-axis 1 --
Y Gantry 1 Gantry 2 Gantry 1 Gantry 1
A13 -- -- -- D axis 1
A15 -- -- -- --
x Gantry 4 Gantry 3 Gantry 2 Gantry 2
A10 Star 4 Star 3 Star 2 Z-axis 2
A12 Z-axis 4 Z-axis 3 Z-axis 2 --
Y Gantry 4 Gantry 3 Gantry 2 Gantry 2
A14 DP axis G1 DP axis G2 DP axis G1 D axis 2
A16 DP axis G4 DP axis G3 DP axis G2 --
Servo Assignment D4/D2
Overview
Axis Unit and Computer Unit Assemblies
Student Guide Advanced Level 1 SIPLACE D-Series
EN 05/2007 Overview
3-15
Axis Board A364
3-9: D4 axis board
