1 - 11
www.asm-smt.com

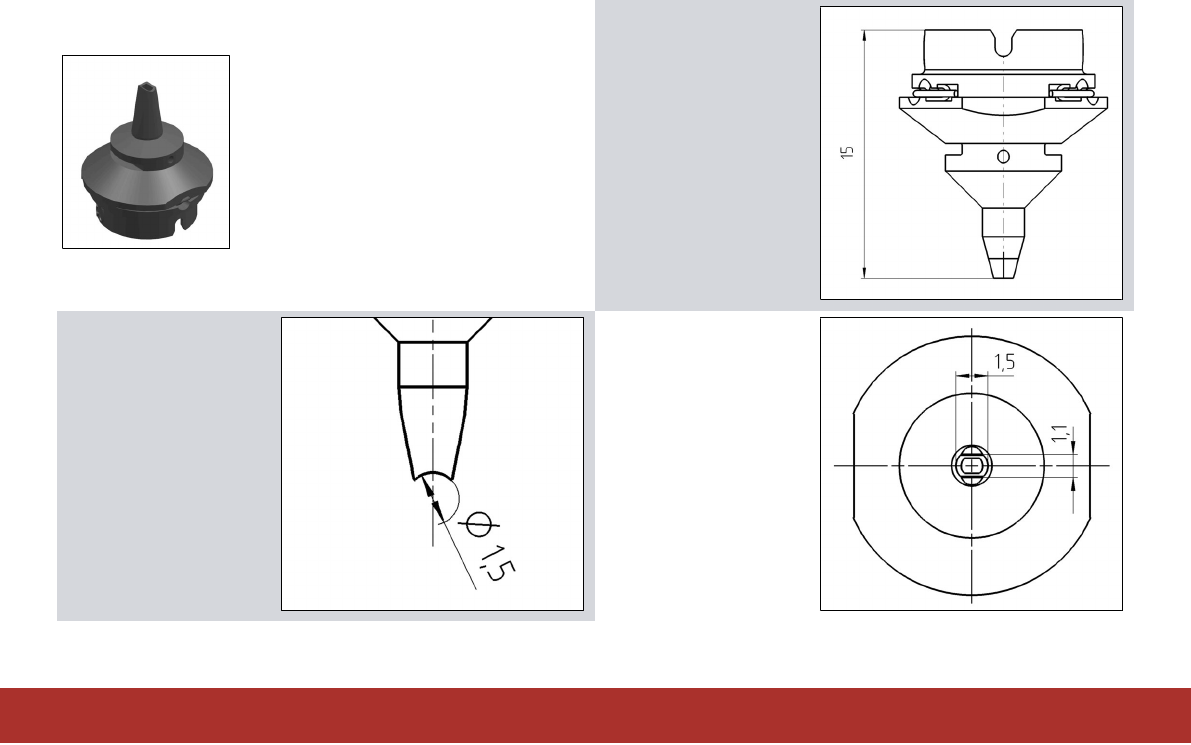

Nozzle Descriptions
Example:
L = 15.000 mm
r
tip
= 0.750 mm
Tip: 1.500 x 1.100 mm (LxB)
L shows the nozzle
length from the base
to the tip.
r
tip
shows the radius
of the nozzle tip for
cylindrical
components.
Example:
r
tip
= Ø 1.5 mm / 2
= 0.750 mm
Tip shows the length
and width or the
diameter of the
nozzle tip.
1 - 12
www.asm-smt.com

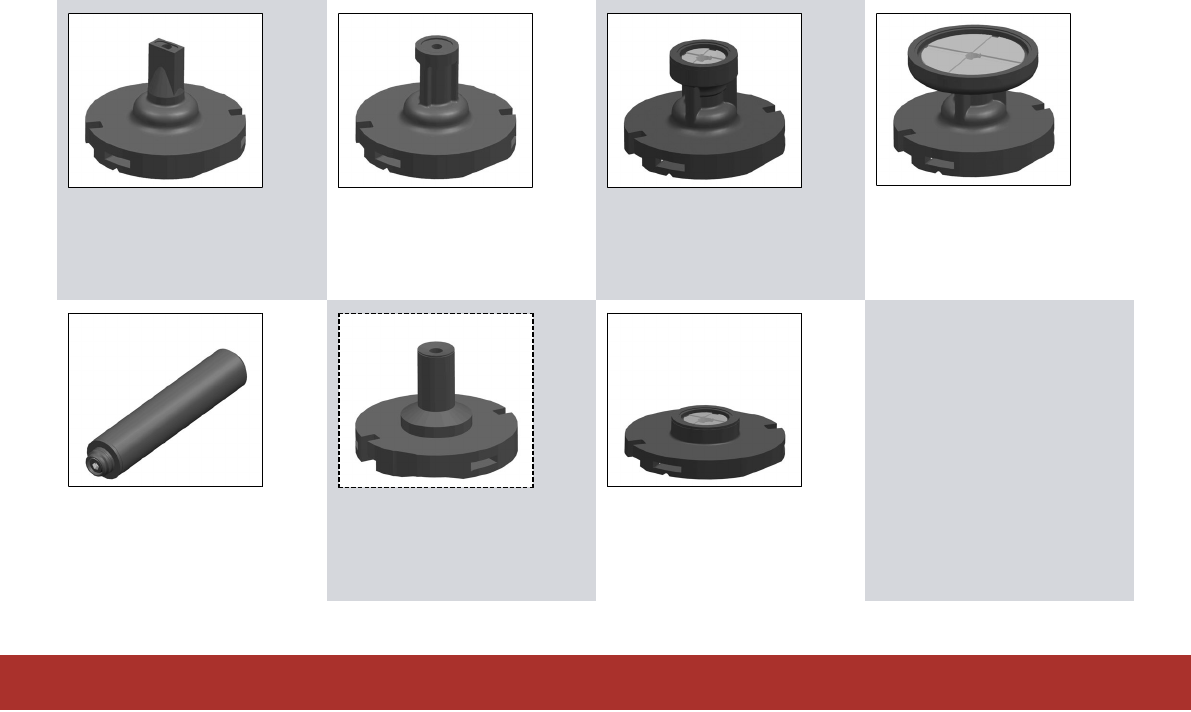

Nozzle Overview
Standard nozzles in the 5xx series
516 (TPU)
L = 20.000 mm
Tip: 6.000 x 3.000 mm (LxW)
Item no. 03012036
517 (TPU)
L = 20.000 mm
Tip: Ø 8.000 mm
Item no. 03012042
518 (TPU)
L = 18.700 mm
Tip: Ø 12.500 mm
Item no. 03012011
519 (TPU)
L = 18.700 mm
Tip: Ø 24.000 mm
Item no. 03012034
Nozzle removal tool
Type 5xx assembly
Item no. 03014091
513 (TPU)
L = 20.000 mm
Tip: Ø 6.800 mm
Item no. 03153861
508 (TPU)
L = 9.750 mm
Tip: Ø 12.500 mm
Item no. 03089064
You can order the nozzles
516, 517, 518 and 519 in a
set.
Item no. 03057554
Observe the section Nozzle
adapter [page 1 – 31].
1 - 13
www.asm-smt.com
Standard nozzles in the 1xx series
1001 (ceramic)
L = 9.800 mm
Tip: 1.400 x 0.900 mm (LxW)
Item no. 03013307
1002 (ceramic)
L = 10.400 mm
Tip: 0.350 x 0.175 (LxW)
Item no. 03117215
1003 (ceramic)
L = 9.800 mm
Tip: 0.900 x 0.500 mm (LxW)
Item no. 03015869
1005 (ceramic)
L = 10.400 mm
Tip: 0.400 x 0.200 mm (LxW)
Item no. 03056499
1006 (ceramic)
L = 10.400 mm
Tip: 0.440 x 0.350 mm (LxW)
Item no. 03015854
1007 (ceramic)
L = 9.800 mm
Tip: 1.400 x 0.660 mm (LxW)
Item no. 03054812
