1 - 23
www.asm-smt.com
Standard nozzles in the 20xx series

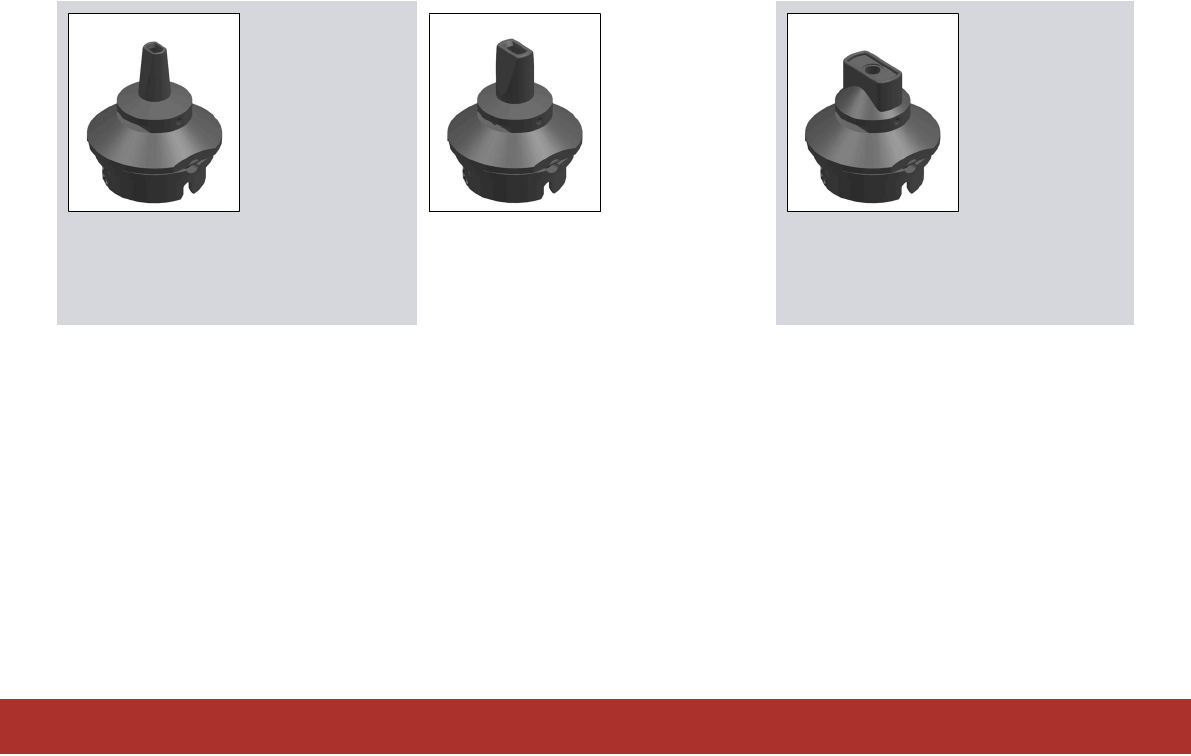

2033 (TPU)
L = 14.000 mm
Tip: 2.200 x 1.600 mm (LxW)
Item no. 03054923
2035 (TPU)
L = 14.000 mm
Tip: 3.500 x 1.900 mm (LxW)
Item no. 03057035
2037 (TPU)
L = 12.000 mm
Tip: 6.000 x 3.000 mm (LxW)
Item no. 03057033
1 - 24
www.asm-smt.com
Standard nozzles in the 28xx series
2817 (TPU)
L = 12.500 mm
Tip: 11.000 x 6.450 mm (LxW)
Item no. 03063484
2820 (TPU)
L = 10.600 mm
Tip: Ø 12.500 mm
Item no. 03056837
2821 (TPU)
L = 9.250 mm
Tip: Ø 19.000 mm
Item no. 03063336
1 - 25
www.asm-smt.com
Standard Nozzles in the 4xx/6xxx Series
4007 / 6007 (ceramic)
L = 9.800 mm
Tip: 1.400 x 0.660 mm (LxW)
Item no. 03099684
4028 / 6028 (ceramic)
L = 9.800 mm
Tip: Ø 0.600 mm
Item no. 03115821
4102 / 6102 (ceramic)
L = 11.000 mm
Tip: 0.350 x 0.175 (LxW)
Item no. 03133662
4103 / 6103 (ceramic)
L = 10.800 mm
Tip: 0.900 x 0.500 mm (LxW)
Item no. 03101981
4105 / 6105 (ceramic)
L = 11.000 mm
Tip: 0.400 x 0.200 mm (LxW)
Item no. 03102457
