1 - 32
www.asm-smt.com
Special nozzles (examples)

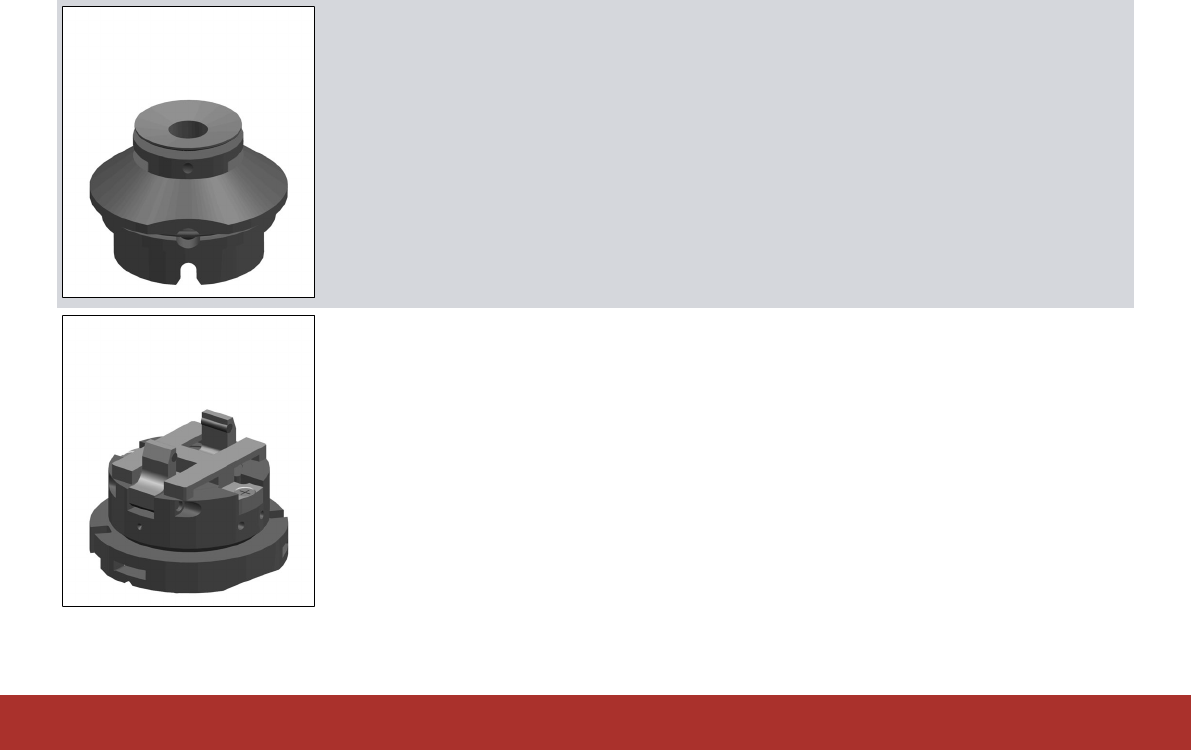

Nozzle type 2039 short with lip seal
Item no. 03085670
Shape: round
Usage:
– Aluminum-electrolytic capacitors Ø 6.3 mm, H: 7.7 mm
– Aluminum-electrolytic capacitors Ø 10.2 mm, H: 10.5 mm
Nozzle SOKO 4xx SSG from outside 13
Item no. 03103196
Shape: gripper
Usage:
– Connectors and other components with a typical width of 13 mm, which can not be
placed with nozzles.
1 - 33
www.asm-smt.com
Special nozzles (examples)
Nozzle SOKO 40xx
Item no. 03146571
Shape: round
Usage:
– Test points Ø 2.0 mm
– LED 1206 with lens
NOTICE!
Nozzles for customized components
Application-optimized nozzles for customized components can be found for all
placement heads using the Component Support Online Help at
www.asm-
smt.com.
If necessary, we can also provide special nozzles for your application.
Please contact your local sales partner or siplace.nozzles.de@asmpt.com
.
1 - 34
www.asm-smt.com
Nozzles for vacuum test
1069 (Vectra)
L = 9.400 mm
Tip: 1.700 x 1.200 mm (LxW)
Item no. 03094112
2069 (Vectra)
L = 15.000 mm
Tip: 1.700 x 1.200 mm (LxW)
Item no. 03094135
4069 / 6069 (Vectra)
L = 9.400 mm
Tip: 1.700 x 1.200 mm (LxW)
Item no. 03106244
