SOT/TO components C&P20A/M CPP C&P20P/M2/P2 Twin Head Component shape [LxWxH (mm)] CS file Nozzle types SOT 23 [2.9x2.3x1.1] 400 SOT 89 [4.5x4.1x1.5] 401 SOT 143 [3.0x2.5x1.1] 402 SOT 223 [6.5x7.0x1.8] 403 3 - …
3 - SOT/TO Components and Standard Nozzles
3 - 1
www.asm-smt.com
SOT/TO components C&P20A/M CPP C&P20P/M2/P2 Twin Head
Component shape
[LxWxH (mm)]
CS
file
Nozzle types
SOT 23
[2.9x2.3x1.1]
400
SOT 89
[4.5x4.1x1.5]
401
SOT 143
[3.0x2.5x1.1]
402
SOT 223
[6.5x7.0x1.8]
403
3 - 2
www.asm-smt.com

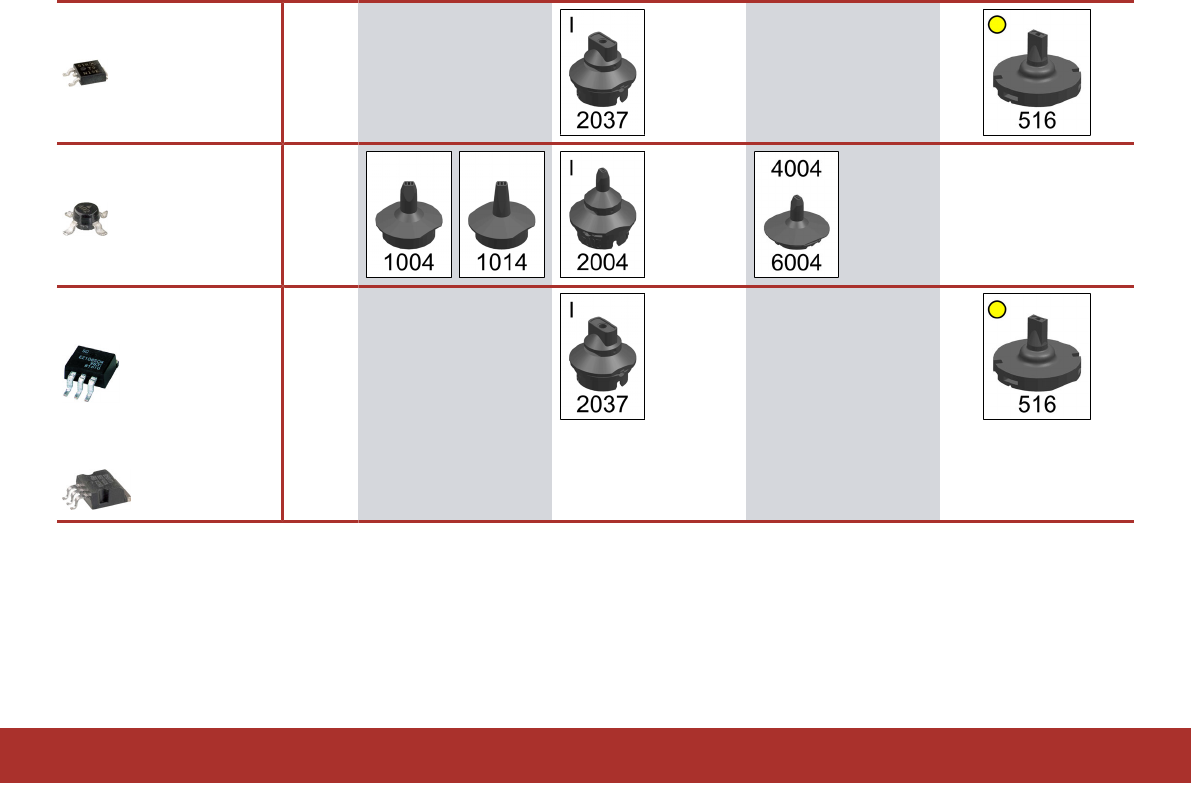

DPACK TO 252
[6.5x10.0x2.7]
404
TO 120 similar
[5.1x5.1x1.6]
405
D2PACK TO 263 AB
[10.0x15.2x4.4]
406
D2PACK TO 263 AA
[10.0x15.2x4.4]
407
3 - 3
www.asm-smt.com
