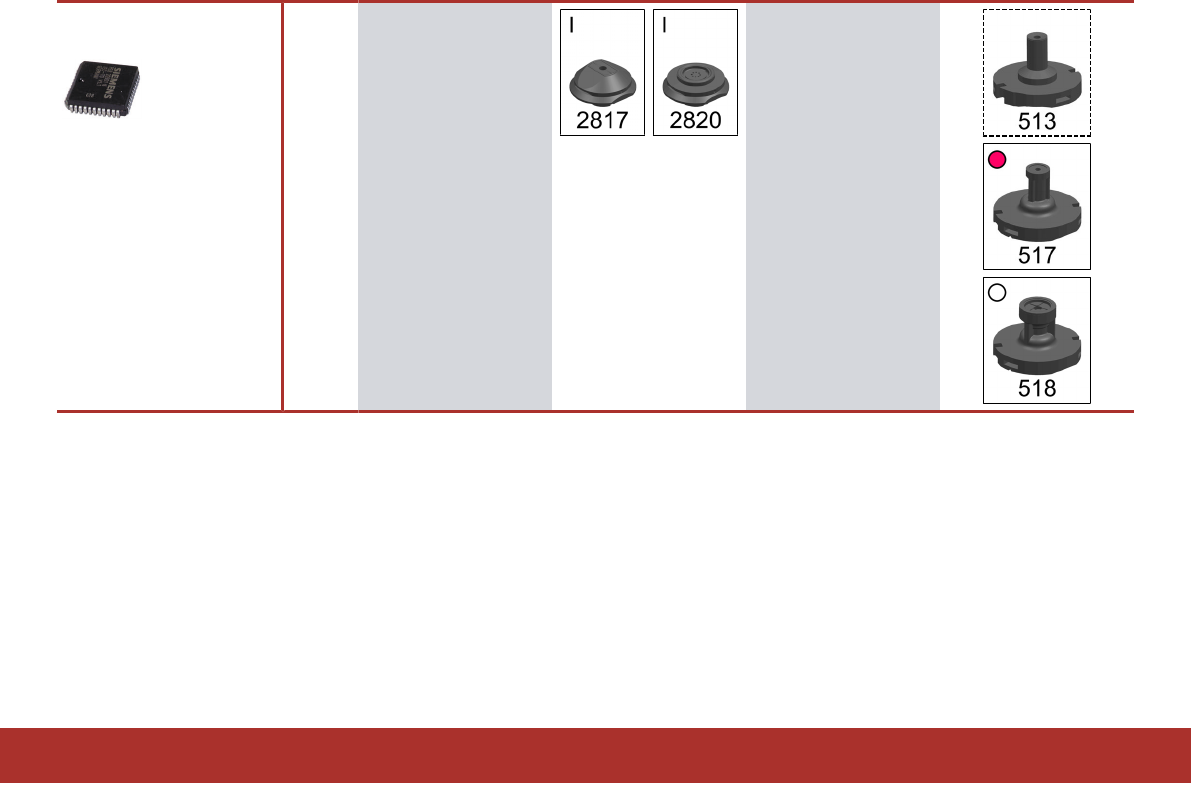

PLCC/SOJ components C&P20A/M CPP C&P20P/M2/P2 Twin Head Component shape [LxWxH (mm)] CS file Nozzle types PLCC 52 [20.05x20.05x4.6] 703 PLCC 68 [25.15x25.15x4.6] 704 5 - 4 www.asm-smt.com
PLCC 44
[17.55x17.55x4.35]
702
5 - 3
www.asm-smt.com
PLCC/SOJ components C&P20A/M CPP C&P20P/M2/P2 Twin Head
Component shape
[LxWxH (mm)]
CS
file
Nozzle types
PLCC 52
[20.05x20.05x4.6]
703
PLCC 68
[25.15x25.15x4.6]
704
5 - 4
www.asm-smt.com
PLCC 84
[30.23x30.23x4.6]
705
PLCC 100
[35.35x35.35x4.6]
706
PLCC 124
[42.95x42.95x4.6]
707
5 - 5
