1 - 4 www.asm-smt.com Nozzle Series and Color Coding The nozzles are classified in various nozzle series. The nozzle series can be recognized by the hundred or thousand digit of the type number. The nozzle series 5xx is …
1 - 3
www.asm-smt.com
NOTICE
When using the SIPLACE CPP, components can either be centered with the internal head camera or with an
external stationary camera (P&P mode). Centering with the internal head camera uses the camera type SST30
for components up to 27mmx27mm. The external stationary camera type SST33 is used for components up
to a size of 50mmx40mm.
Example of internal camera: Example of external camera:
For some nozzles you can use alternative nozzles. These are marked with a dashed frame.
Example standard nozzle: Example alternative nozzle:
1 - 4
www.asm-smt.com
Nozzle Series and Color Coding
The nozzles are classified in various nozzle series. The nozzle series can be recognized by the hundred or thousand digit
of the type number.
The nozzle series 5xx is marked by colored dots, everything else with engraved number codes.

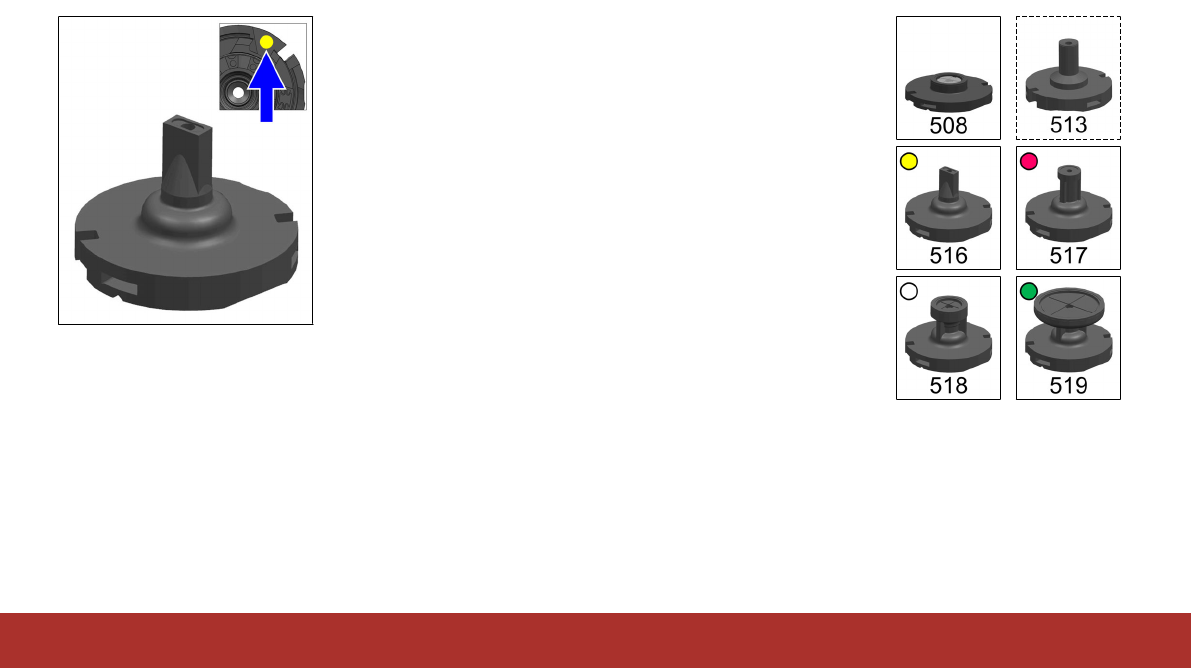

Nozzle series 5xx:
These nozzles are used on the SIPLACE Twin Head.
All nozzles in this series are fitted with an adapter.
The nozzles 516, 517, 518 and 519 are marked with a colored
dot on the top outer side.
1 - 5
www.asm-smt.com

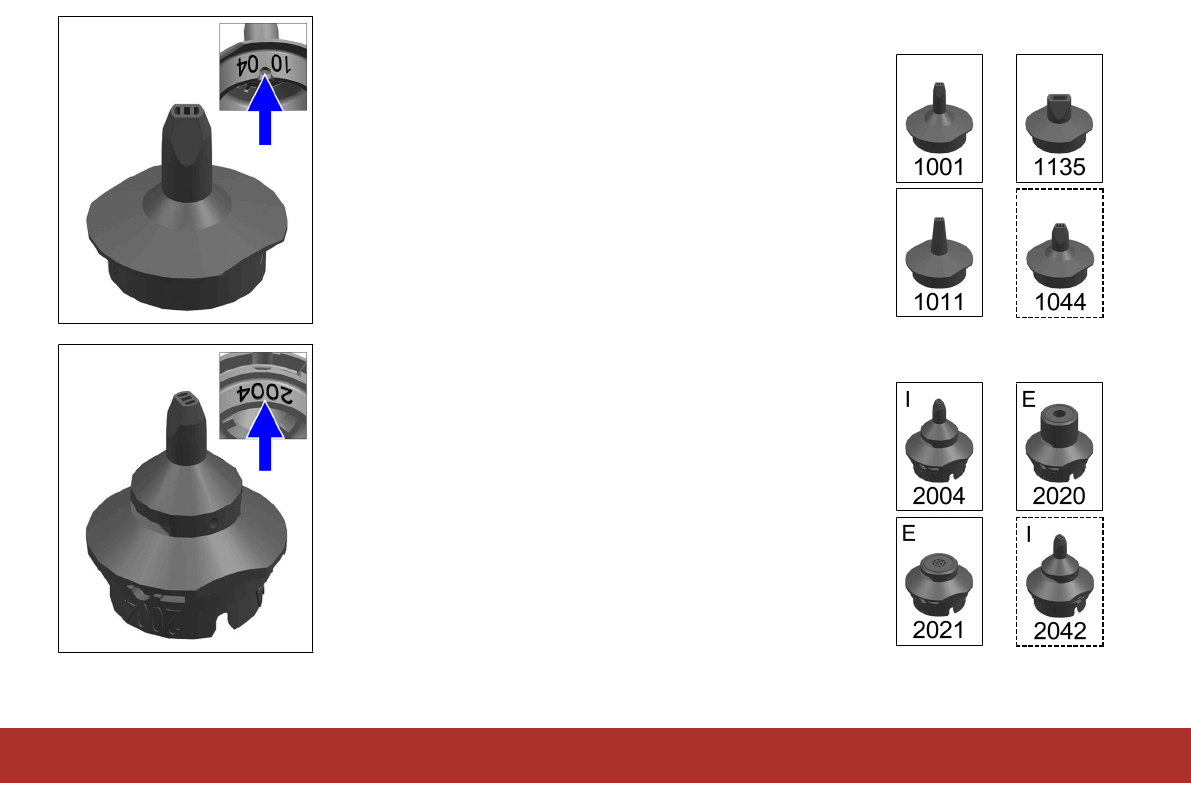

Nozzle series 1xxx:
These nozzles are used on the SIPLACE C&P20A/M.
All nozzles in this series have a 4-digit number code on the
top outer side.
Examples:
Nozzle series 20xx:
These nozzles are used on the SIPLACE CPP.
All nozzles in this series have a 4-digit number code on the
top outer side.
The letter I or E in the allocated GF name marks the use of a
head with an i
nternal or external camera.
Examples:
