深圳德森精密设备有限公司 Shenzhen Desen Pre cision Machine Co., Ltd. - 21 - 网框中心对准箭头指示处 S creen f ra me ’ s c enter a lig n with the p osition p ointed by arr ow 图 3-1 Fig ure 3-1 注： 本机器推荐用户使用规格为 650 × 550mm 的网框 （见 《 用户手册》 附 1 推荐使用的…
深圳德森精密设备有限公司
Shenzhen Desen Precision Machine Co., Ltd.
- 20 -
Inspect whether the cleaning paper has been well mounted and whether the liquid level of
alcohol tank is higher than the liquid level sensor;
检查机器的紧急制动开关是否弹起；
Inspect whether the emergency brake switch of printing machine is bounced; and
检查三色灯工作是否正常，检查机器前后罩盖是否盖好。
Inspect whether the three-color indicator light operates normally and whether the front and
back covers cover the printing machine well.
3.2
3.2
3.2
3.2
开始生产前准备
3.2
3.2
3.2
3.2
Preparations
Preparations
Preparations
Preparations
before
before
before
before
production
production
production
production
3.2.1
3.2.1
3.2.1
3.2.1
范本的准备
3.2.1
3.2.1
3.2.1
3.2.1
Preparation
Preparation
Preparation
Preparation
of
of
of
of
sample
sample
sample
sample
1)
模板基材厚度及窗口尺寸大小直接关系到焊膏印刷质量，从而影响到产品质量。范本
应具有耐磨、孔隙无毛刺无锯齿、孔壁平滑、焊膏渗透性好、网板拉伸小、回弹性好
等特点。
1) The formwork base material thickness and window size have a direct bearing on the printing
quality of solder paste and further the product quality. T he samples shall be friction resistant and
free from burr and saw teeth in pores and have other characteristics such as smooth pore walls,
good penetrability of solder paste, small stretching range of screen and sound rebound elasticity ;
and
2)
根据网框尺寸大小移动网框支承板，将网框前后、左右方向的中心对准印刷机前横梁
及左、右支承板上的标尺 “ 0 ” 刻度位置，居中摆放后，再将网板锁紧。
2) Move the screen frame bearing plates in accordance with the screen frame
’
s
size, make the
centers of screen frame in front, rear, left and right directions align with the front beam of printing
machine and the “ 0 ” scale positions on the left and right bearing plates. Place the bearing plates in
the center before locking the screen.
深圳德森精密设备有限公司
Shenzhen Desen Precision Machine Co., Ltd.
- 21 -

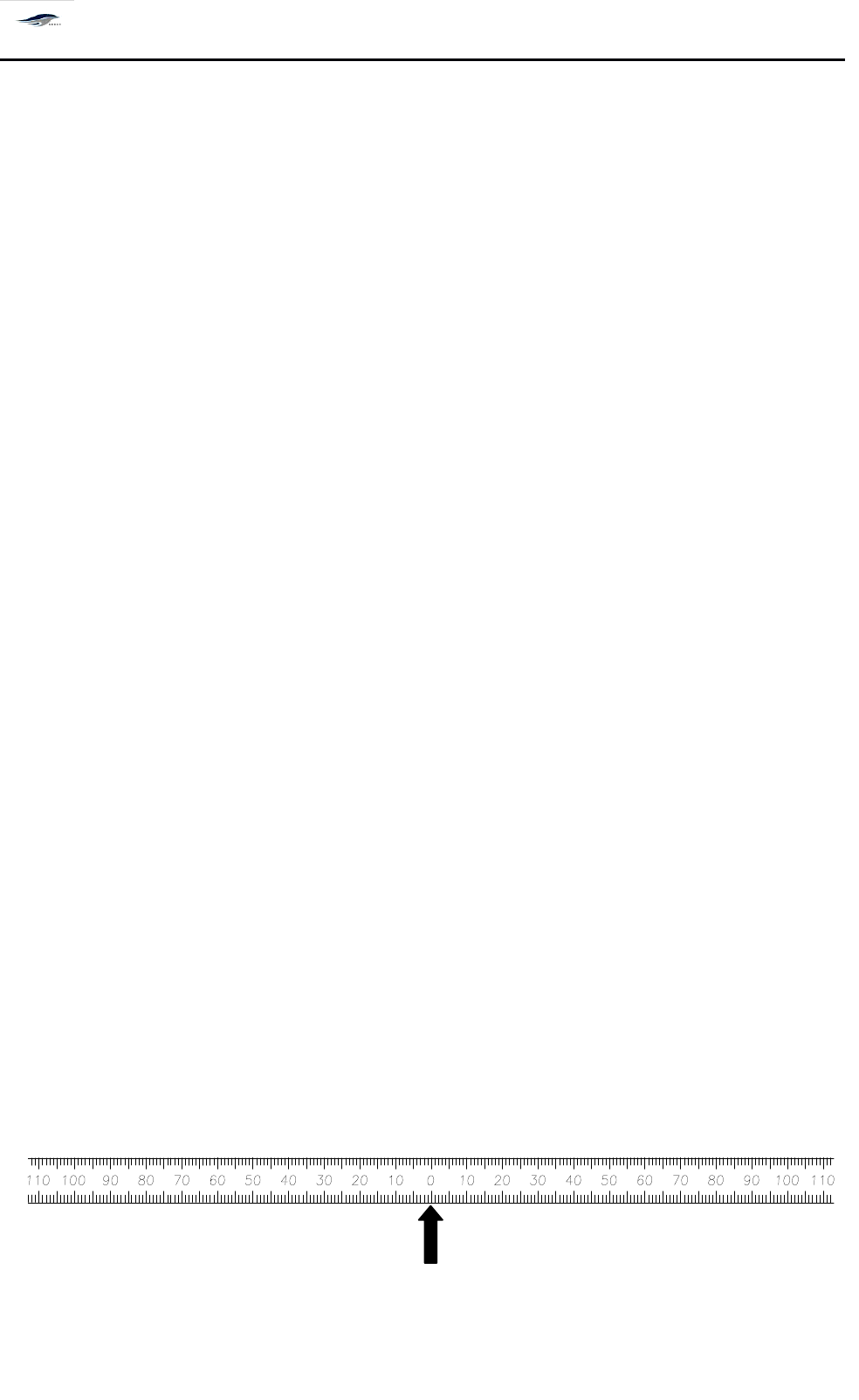

网框中心对准箭头指示处
Screen frame
’
s
center align with the position pointed by arrow
图 3-1
Figure 3-1
注： 本机器推荐用户使用规格为 650 × 550mm 的网框（见《用户手册》附 1 推荐使用的网 框
尺寸） 。
Note:
it
is recommended to use a screen frame of 650 × 550mm for this printing machine (see Annex
1 of User Manual for the recommended dimensions of screen frame).
3.2.2
3.2.2
3.2.2
3.2.2
锡膏准备
3.2.2
3.2.2
3.2.2
3.2.2
Preparation
Preparation
Preparation
Preparation
of
of
of
of
solder
solder
solder
solder
paste
paste
paste
paste
1)
在 SMT 中，焊膏的选择是影响产品质量的关键因素之一。不同的焊膏决定了允许印 刷
的最高速度，焊膏的粘度、润湿性和金属粉粒大小等性能参数都会影响最后的印刷质
量。
1) In SMT, the choosing of solder paste is one of the key factors affecting the product quality.
D ifferent types of solder paste determine the greatest printing speed. T he viscosity, wetting
property , size of metallic particles and other performance parameters shall all affect the ultimate
printing quality;
2)
对焊膏的选择应根据清洗方式、元器件及电路板的可焊性、焊盘的镀层、元器件引脚
间距、用户的需求等综合起来考虑。
2) Solder paste shall be chosen based on an integral consideration of cleaning manner , the
solderability of components and circuit board , clad layer of bonding pad , pin space of components
and demand of customers;
3)
锡膏选定后，应根据所选锡膏的使用说明书要求使用。
3) After being chosen, solder paste shall be used in compliance with the requirements of
corresponding use direction;
4)
在使用之前必须搅拌均匀，直至锡膏成浓浓的糊状并用刮刀挑起能够很自然的分段落
下即可使用。
4) Before use, solder paste must be stirred evenly till
it
becomes pasty , can be stirred up with a
squeegee and drop very naturally;
5)
锡膏从冰柜中取出不能直接使用，必须在室温 25 ℃ 左右回温（具体使用根据说明书而
定） ；锡膏温度应保持与室温相同才可开瓶使用
5) Solder paste shall not be used instantly after being taken out from a deep freezer but receive
深圳德森精密设备有限公司
Shenzhen Desen Precision Machine Co., Ltd.
- 22 -
annealing under a room temperature of 25 ℃ or so (the specific use shall be subject to the use
direction). T he temperature of solder paste shall become the same as room temperature before
being decapped for use; and
6)
使用时应将锡膏均匀地刮涂在刮刀前面的模板上，且超出模板开口位置，保证刮刀运
动时能将锡膏通过网板开口印到 PCB 板的所有焊盘上。
6)
When in use, solder paste shall be evenly pasted on the formwork in front of the squeegee to
the position further than the formwork so that the squeegee in operation can print the solder
paste onto the screen
’
s
opening to all bonding pad s.
3.2.3
3.2.3
3.2.3
3.2.3
PCB
PCB
PCB
PCB
定位调试
3.2.3
3.2.3
3.2.3
3.2.3
Positioning
Positioning
Positioning
Positioning
and
and
and
and
debugging
debugging
debugging
debugging
of
of
of
of
PCB
PCB
PCB
PCB
board
board
board
board
1.
打开机器主电源开关。
Turns on the main power switch of the machine .
2.
进入印刷机主画面。
Enters the main screen of print ing machine.
3.
单击 [ 归零 ] 菜单，让机器运动部件回到原点部位。
Click [ Reset ] in the menu, lets the machine movement part return to default.
4.
单击主菜单栏 [ 文件 / 新建 ] ，并键入新建文件名。
Click [document/new], and enters the newly built filename
5.
单击主工具栏 1 “ 生产编辑 ” 图标，在输入密码后进入 [ 生产编辑 ] 中，进行 PCB 设置
，
输入所要生产的 PCB 板名称、型号、 长、宽、 厚和运输速度参数， 再单击 “ 宽度调 节
”
将运输导轨自动调到适宜所要生产的 PCB
宽度。
（详见第四章介绍）
C lick the main toolbar 1 “ production edit ” icon, enters password and start [production
edit], start PCB setup , inputs PCB board name, model number , l e ng th , width,
thick ness and transporting speed , click “ width adjustment ” to adjust the conveyer
automatically. (See Chapter IV for details)
6.
在生产编辑菜单中输入所要生产 PCB 板的各项参数，如刮刀速度、压力、脱模长度 和
速度、清洗方式、时间间隔和速度以及取象方式等。
Inputs PCB board parameter s into the menu of production edit , such as the
squeegee speed, the pressure, the length and speed of demoulding , the cleaning
method , the rate and time interval of cleaning, image taking manner etc.
7.
单击 “ 挡板气缸移动 ” 使 CCD 移动到停板位置，进行 PCB 定位校正。
