深圳德森精密设备有限公司 Shenzhen Desen Pre cision Machine Co., Ltd. - 8 - 1.2.3 1.2.3 1.2.3 1.2.3 O ptical O ptical O ptical O ptical system system system system ( optically ( optically ( optically ( optically fi ducially fi ducial…
深圳德森精密设备有限公司
Shenzhen Desen Precision Machine Co., Ltd.
- 7 -
1.2.2
1.2.2
1.2.2
1.2.2
整机参数
1.2.2
1.2.2
1.2.2
1.2.2
Overall
Overall
Overall
Overall
parameters
parameters
parameters
parameters
1.2.3
1.2.3
1.2.3
1.2.3
光学系统（ Fiducially
Fiducially
Fiducially
Fiducially
mark
mark
mark
mark
光学对准标记）
Conveyor Direction
传送方向
左 - 右，右 - 左，左 - 左，右 - 右
L-R, R-L, L-L, R-R
Squeegee Pressure
刮刀压力
0.5~10Kgf/cm
2
Printing Speed
印刷速度
6~200mm/sec
Squeegee Angle
刮刀角度
60 ° 、 55( 标准 ) ° 、 45 °
60 ° , 55( standard ) ° , 45 °
Squeegee Type
刮刀类型
钢刮刀、胶刮刀
Steel squeegee and rubber squeegee
Cleaning System
清洗方式
干式、湿式、真空（可编程）
Dry type, wet type, vacuum type
(programmable)
Repeat Positioning Accuracy
重复定位精度
± 0.01mm
Printing Accuracy
印刷精度
± 0.025mm
Cycle Time
周期时间
＜ 1 0 s( 不包含印刷、清洗时间 )
＜ 1 0 s (exclusive of printing and cleaning
time)
Product Changeover
换线时间
<5Min
Air Required
使用空气
4.5~6Kgf/cm
2
Power Input
电 源
AC 220V ± 10% 50/60HZ 单相
AC 220V ± 10% , 50/60HZ , single
phase
Control Method
控制方法
PC Control
Machine Dimensions
设备尺寸
1 240 ( W ) × 136 0 ( L ) × 1 50 0(H)mm
Weight
重 量
约 10 00kg
About 10 00kg
深圳德森精密设备有限公司
Shenzhen Desen Precision Machine Co., Ltd.
- 8 -
1.2.3
1.2.3
1.2.3
1.2.3
Optical
Optical
Optical
Optical
system
system
system
system
(optically
(optically
(optically
(optically
fiducially
fiducially
fiducially
fiducially
mark)
mark)
mark)
mark)
1.3
1.3
1.3
1.3
机器外形尺寸
Fiducial Mark Detection
标记点探测
用一个 CCD camera 通过网板和基板上两 个
标志点进行识别
Perform identification for the two fiducial
marks on the screen and base board with a
CCD camera .
Alignment Mode
调整方式
用 camera 探测到 PCB 和网板位置， 通过 视
觉校正系统软件控制万向工作台作 X — Y —
角度方向修正，实现网板与基板的对准
Use a camera to detect the positions of PCB
and screen and correct the X — Y directions by
controlling the universal workbench through a
visual calibration system software, thereby
achieving the alignment of screen and base
board.
Fiducial Mark Shape
标记点形状
任何形状
Any shape
Fiducial Mark Size
标记点大小
可做成直径或边长为 1mm ～ 2.5mm 的各种
形状的孔，允许偏差 10%
Holes of different shapes with a diameter or
side length of 1mm ～ 2.5mm , allowing
deviation of 10%.
Fiducial Mark Type
标记点类型
透空型：周边用薄铜材料
Open type: thin copper arranged along rim
半透空型： 中间为透明或半透明涂层材料 可
用镍、青铜等
Semi-open type: The middle is a kind of
transparent or semi-transparent coating
material, such as nickel or bronze .
Fiducial Mark Requair
标记点要求
标志点涂层表面要求平且光滑
The coating surfaces of the fiducial marks
should be flat and smooth.
深圳德森精密设备有限公司
Shenzhen Desen Precision Machine Co., Ltd.
- 9 -
1.3
1.3
1.3
1.3
External
External
External
External
dimensions
dimensions
dimensions
dimensions
of
of
of
of
machine
machine
machine
machine
长 1360mm × 宽 1240mm × 高 1500mm
1360mm × 1240mm × 1500mm (L × W × H)

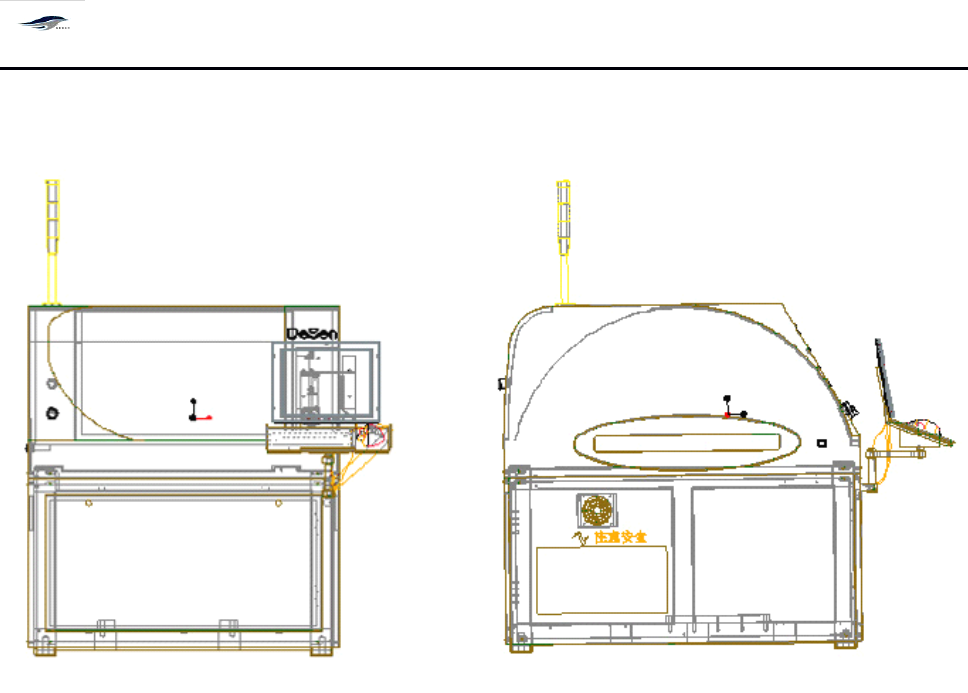

图 1-1 机器外形图
Figure 1-1 Outside View of Machine
1.4
1.4
1.4
1.4
主要系统
1.4
1.4
1.4
1.4
Main
Main
Main
Main
System
System
System
System
本机包括机械、电气两大部分。
The machine consists of a mechanical part and an electric part.
1.4.1
1.4.1
1.4.1
1.4.1
PCB
PCB
PCB
PCB
运输系统
1.4.1
1.4.1
1.4.1
1.4.1
PCB
PCB
PCB
PCB
Transport
Transport
Transport
Transport
System
System
System
System
包括运输导轨、运输带轮及皮带、步进电机、停板装置、导轨调宽装置等。
It
includes a transport guide rail, a transport belt roller, a belt, a step motor, a board-stopping device,
a guide rail width regulating device, etc.
功能： 对 PCB 进板、出板的运输、停板位置及导轨宽度的自动调节以适应不同尺寸的 PCB
基板。
