NPM-D3
SERVICE MANUAL
2.2 Air Pressure Setting
EJM6D3-MB-02SM-00(
編集中
).DOC Page 2-13
2.2.2 Adjusting Vacuum Breaking Pressure
真空破壊圧調整
真空破坏压力调整
Checking and Adjusting Vacuum Breaking Pressure
真空破壊圧の確認と調整
真空破坏压力的确认和调整
2.
1. Turn ON the power and check the reading of the pressure gauge. (Fig. 1)
電源を ON し、圧力計の数値を確認します。(図 1)
将电源置于 ON，确认压力表的数值。(图 1)
Vacuum breaking pressure : 8 ~ 12 kPa
真空破壊圧
真空破坏压力
2. If the air pressure is not within the above requirement, turn the adjustment knob of the regulator to adjust
the pressure.
正常なエア圧が供給されていない場合は、レギュレータのエア圧調整ツマミを回して調整します。
正常的空气压力未被供给时，转动调节器的空气压力调整旋钮进行调整。
Setting Vacuum Breaking Pressure Detection Value
真空破壊圧検出値の設定
真空破坏压力检测值的设定
The vacuum breaking pressure detection value can be changed with the “

” buttons on
the pressure gauge and determined with the “SET” button. (Fig. 1)
真空破壊圧検出値は圧力計の
[
▽
] [
△
]
キーでデジタル表示の値を変更し、
[SET]
キーで確定します。
(Fig. 1)
真空破坏压力值，用压力表的“▽△”键变更数字显示的数值，并用“
SET
”键将其确定。
(Fig. 1)
For description of the setting method, refer to ‘
Setting Procedure’ on the next page.
設定方法は、後述の
‘
設定手順
’
を参照ください。
关于设定方法，请参照后述的‘■设定步骤’。
Details of the pressure gauge are described in the catalog
specification in the TECHNICAL INFORMATION.
圧力計の詳細については、技術資料の項にカタログを記載しています。
关于压力表的详细内容，在技术资料项目中记载目录。
‘9.2.2 Pressure Gauge’.
Fig. 1
Fig. 1
Pressure gauge Adjustment knob
NPM-D3
SERVICE MANUAL
2.2 Air Pressure Setting
Page 2-14 EJM6D3-MB-02SM-00(
編集中
).DOC

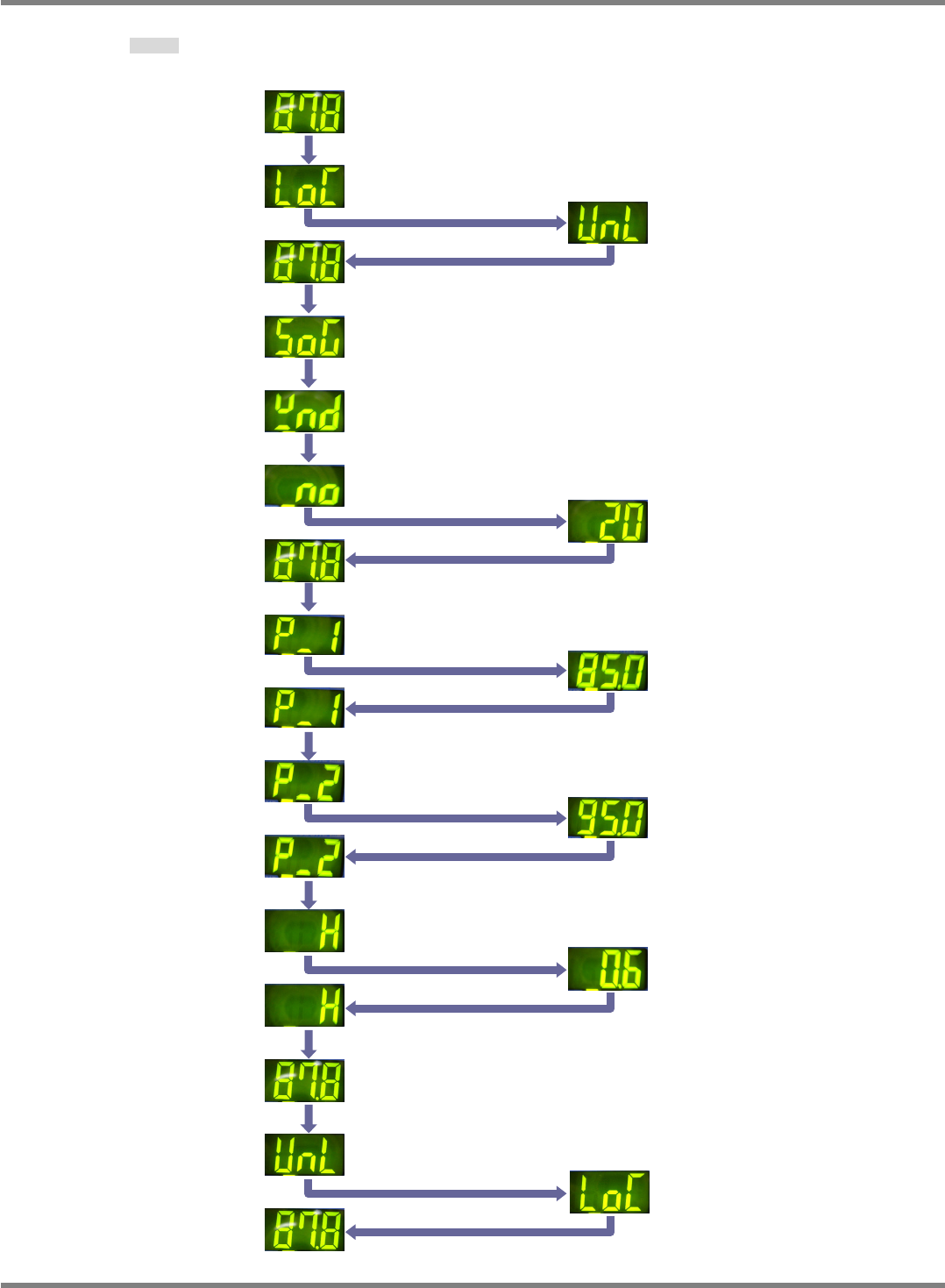

Setting procedure
設定手順
设定步骤
Display the measurement
mode.
Release the key lock.
Initial setting
Set the display color.
Set the operation mode.
Set the output format.
Set the pressure.
Set the lower limit pressure.
Set the upper limit pressure.
Set the response time.
Display the measurement
mode.
Set the key lock.
Display the measurement
mode.
“UnL” indicating unlock appears.
Press “SET” to release the key
lock.
Press “” to display “20”.
Press “SET”.
Press “” to display “85.0”.
(To change the digit, press “SET”.)
Press “SET” for more than 3 s.
Press “” to display “95.0”.
(To change the digit, press “SET”.)
Press “SET” for more than 3 s.
Press “” to display “0.6”.
(To change the digit, press “SET”.)
Press “SET” for more than 3 s.
“LoC” indicating lock appears.
Press “SET” to set the key lock.
The current air pressure appears.
Press “SET” for more than 4 s.
“Loc” indicating lock appears.
Press “”.
The measurement mode is engaged.
Press “SET” for more than 2 s.
Press “” to display “SoG”.
Press “SET”.
Press “” to display “wnd”.
Press “SET”.
Press “” to display “no”.
Press “SET”.
The measurement mode is engaged.
Press “SET”.
“P_1” and “85.0” blinks alternately.
“P_1” blinks.
Press “SET”.
“P_2” and “95.0” blinks alternately.
“P_2” blinks.
Press “SET”.
“H” and “0.6” blinks alternately.
“H” blinks.
Press “SET”.
The current air pressure appears.
Press “SET” for more than 4 s.
“UnL” indicating unlock appears.
Press “”.
The measurement mode is engaged.
NPM/NPM-D/NPM-D2/NPM-D3/NPM-W/NPM-TT
SERVICE MANUAL
EJM6D3-MB-03SM-00(編集中).DOC Page 3-1
3. PREPARED MATERIAL
準備機材
准备器材
This chapter describes prepared materials for inspection and adjustment.
この章では、点検および調整作業に必要な器材について説明します。
在本章中对在检查及调整作业当中需要的器材进行了说明。
