14
OM-1646

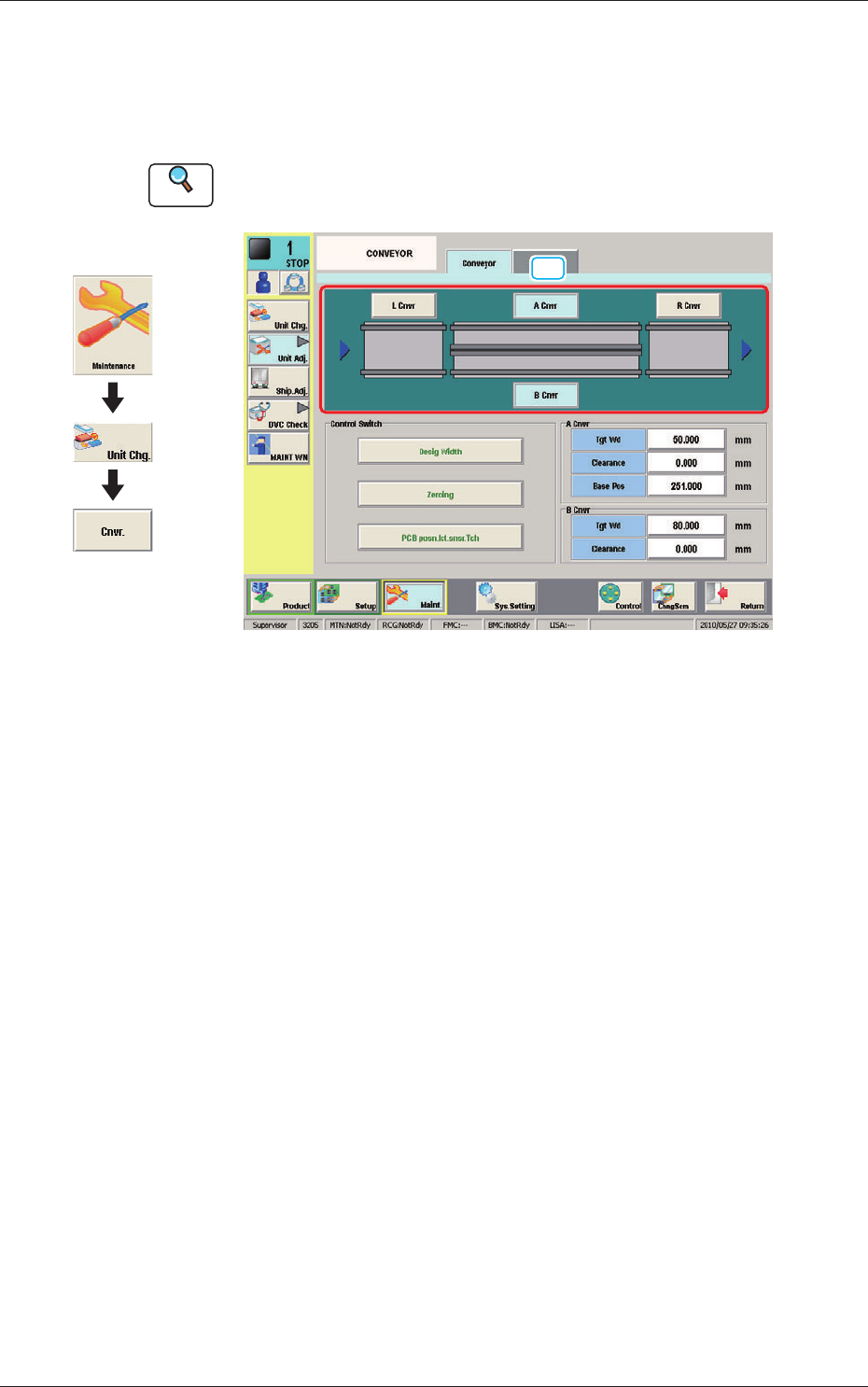

10.1 "Conveyor" Tab Sheet
This window enables the operator to adjust the overall setup or manual setup
for the conveyor width in each lane.
Reference
Refer to the Instruction Manual of the SIGMA-G5 for the information
except for dual transfer.
[1]
Conveyor F14
[1] Conveyor selection Button
Using these buttons, the target position movement, reference position
adjustment or conveyor section (Conveyor L, Conveyor A, Conveyor B or
Conveyor R) is selected.
1005-001
10.1 "Conveyor" Tab Sheet
Graphic
Development
15
OM-1646
10.2 "PCB Stpr." Tab Sheet
This tab sheet enables the operator to adjust the PCB stopper for each lane
and each block.
Reference
Refer to the Instruction Manual of the SIGMA-G5 for the information
except for dual transfer.
[1]
PCB Stpr. F15
[1] Block selection Button
Using these buttons, the block in the lane where there is the PCB stopper to
be operated, is selected.
1005-001
10.2 "PCB Stpr." Tab Sheet
Graphic
Development
16
OM-1646
11. Program Change Operation
This section describes the items to be changed when the dual transfer is
selected in the pattern program change.
Reference
Refer to the Instruction Manual of the SIGMA-G5 for the information
except for dual transfer.
11.1 Selection of Run Mode
Set the "RUN MODE" on the "Run. Mode" tab sheet in the "OPERATION"
window.
Select the operation mode in each lane.
Normally, select "Place".
Run Mode F16
Graphic
Development
1005-001
11. Program Change Operation
