20
OM-1646
(7) Open the transparent cover.
CAUTION
The load power to the motors, etc., is turned OFF
but the setup operation must be performed carefully
when you put your hand inside the machine. Avoid
handandngerinjuries.
(8) Slightly push the PCB by nger to conrm that there is no problem in the
location of the support pins.
(9) Close the transparent cover.
(10) Press the cover lock switch to turn on the lamp.
1005-001
11.4ConrmationofPCBTransferandPositioning
21
OM-1646
1005-001
12. Pattern Program
12. Pattern Program
12.1 Composition of Pattern Program
The pattern program for dual transfer consists of the following data items.
Pattern Program
Pattern Program Name
Common SET
PCB
Operation
Control
PL Head/Nozzle
CMPNT PL
Component Library
Component ID
Placement
PCB Recog
Control
PCB locate
Transfer speed
Nozzle Place
Nozzle Stk1
Nozzle Stk2
Function
Mark
Operation
Set-up
Set-up
Support Pin
Block1(2)
Un
Offset
P-data
O-data
HDLG/PL
Composition of Pattern Program F22
Note
The item in gray is to be changed for dual transfer.
Reference
Refer to the Instruction Manual of the SIGMA-G5 for the information
except for dual transfer.
22
OM-1646
1005-001
12.2 Pattern Program Description
12.2 Pattern Program Description

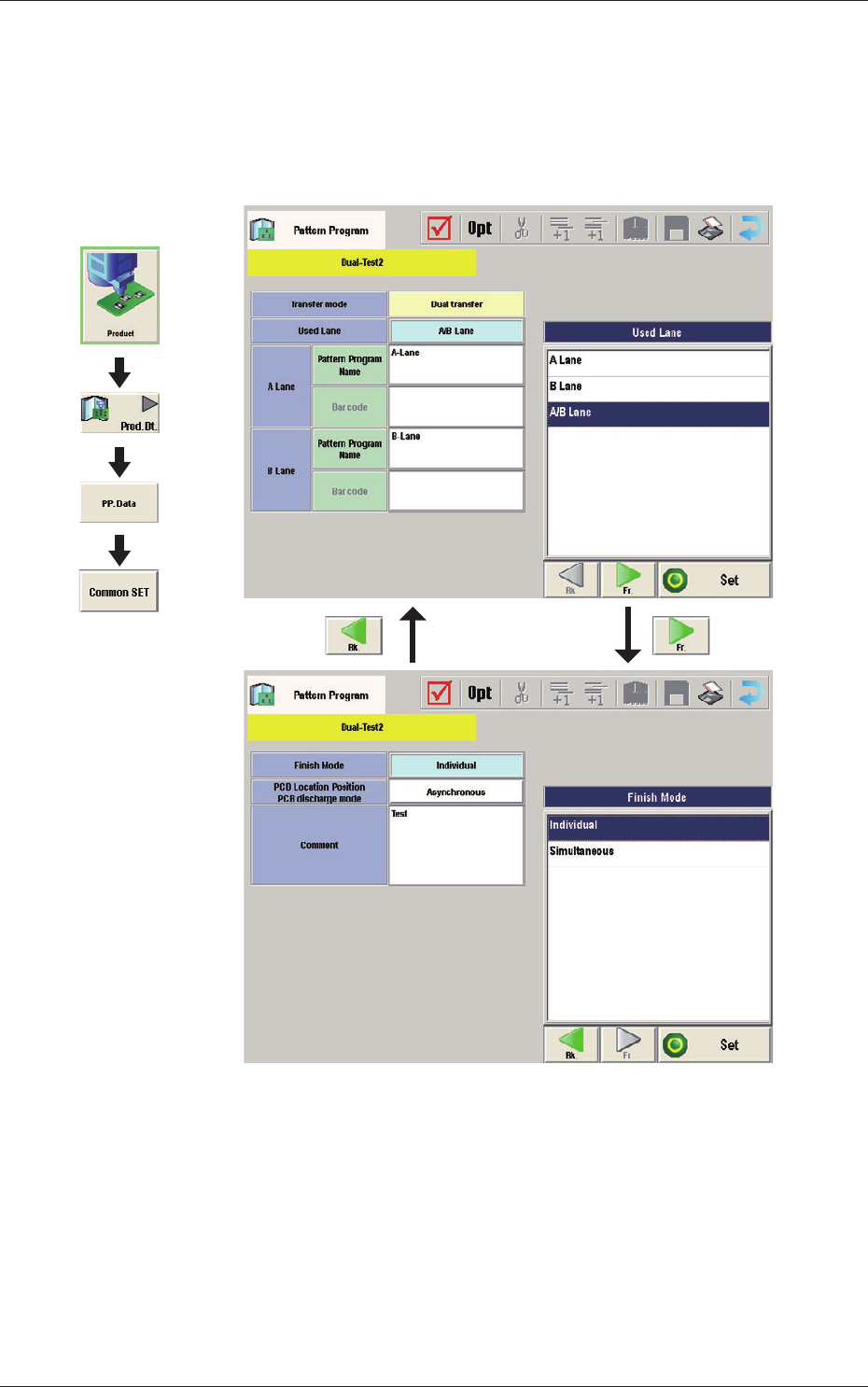

12.2.1 Common Setting
Common Data
F23
Graphic
Development
