OM-1646-001_w - 第52页

33 OM-1646 1005-001 14.1 Outline of Maintenance 14.1.3 Items for Periodic Maintenance The items (inspection, cleaning, lubrication, etc.) that require periodic maintenance are classied and described based on each indivi…

100%1 / 87
32
OM-1646
1005-001
14.1 Outline of Maintenance

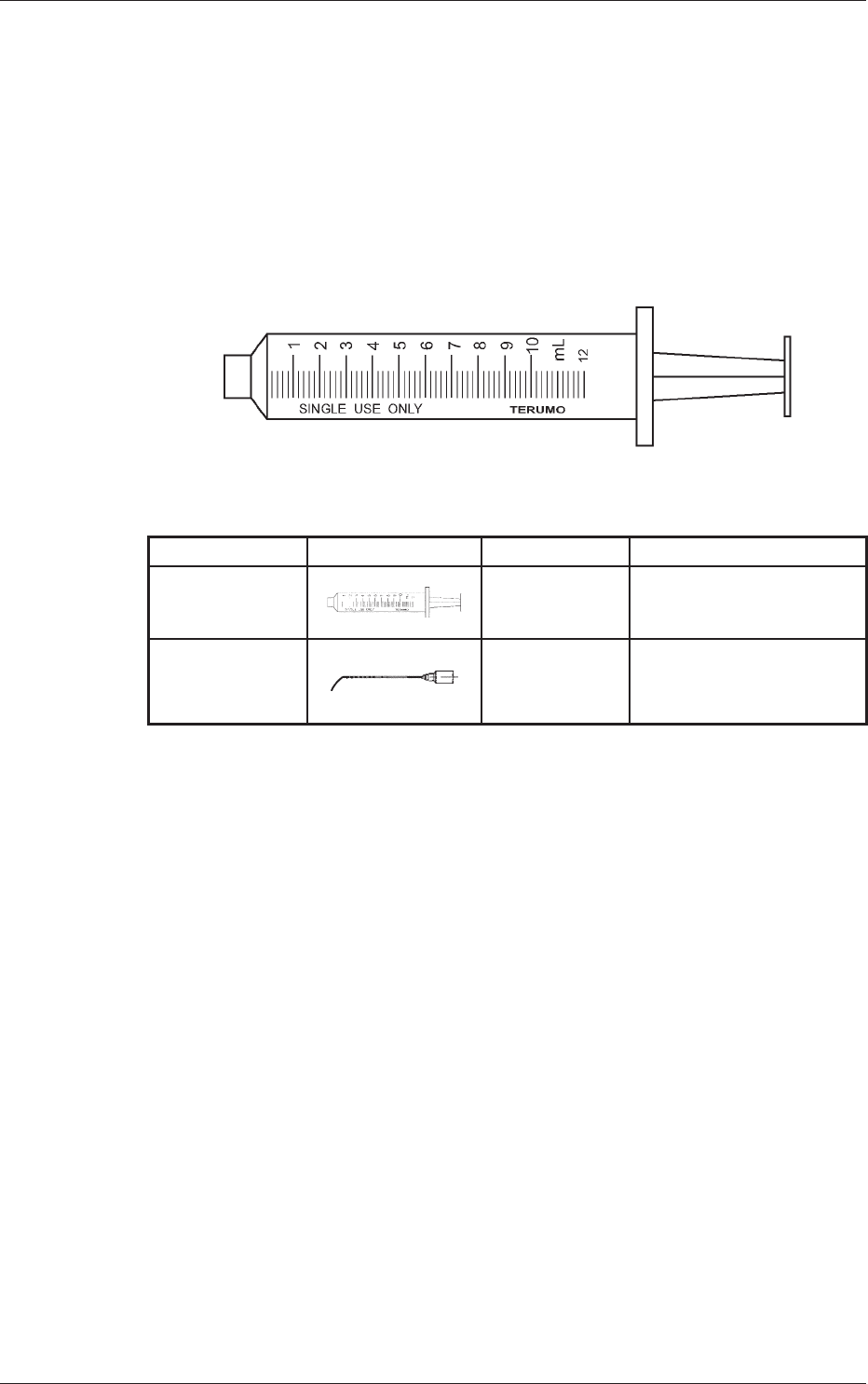

(4) Syringe
Maker : TERUMO
This gun can be used for two types of greases.
Use the syringes and the nozzle properly.
Two Types of Greases : DAPHNE EPONEX GREASE No. 1
MOLYNOC GREASE AP1
Appearance
F29
Standard Shape Part No. Remarks
Syringe
228A0171
Maker : TERUMO
10 ml SS-10-LZ
Nozzle No.19
(Color : Brown)
0916D108
Maker : NIPRO
Inside Diameter : f 0.79
Length : 65 mm Flat End
T4
33
OM-1646
1005-001
14.1 Outline of Maintenance
14.1.3 Items for Periodic Maintenance
The items (inspection, cleaning, lubrication, etc.) that require periodic
maintenance are classied and described based on each individual devices.
Reference
Refer to "14.2 Maintenance Check List" for the maintenance based on frequency
of use.
Notice
The * -marks represent that the items require maintenance only for the
rsttime.
Followthe○-markedmaintenancecycleforthesubsequentuse.
Device Name
Inspection Cleaning,
and Lubricating Spots
Work
Maintenance Cycle
Daily Weekly Monthly
Every
3 Months
Every
6 Months
Yearly
14.3.2.1 PCB Positioning
Section
Upper Serface of Backup
Table
Cleaning
Ball Screw
Cleaning,
Lubrication
*
Ball Screw Splines
Cleaning,
Lubrication
14.3.2.2 Conveyor
Section
Linear Guide
Cleaning,
Lubrication
*
Support Pin Detection
Sensors
Cleaning,
Lubrication
PCB Detection Sensor
Cleaning
PEC Detection Fiber
Cleaning
PEC Detection Fiber
Mirror
Cleaning
T5
34
OM-1646
1005-001
14.2 Maintenance Check List
14.2 Maintenance Check List
The periodic maintenance items (inspection, cleaning, lubrication, etc.) are
classied and described based on how frequently each item should be performed.
Use the tables below as check lists.
Reference
Refer to "3. Maintenance Spots" for the spots to be maintained.
14.2.1 Weekly Maintenance
Object Unit
Inspection, Cleaning,
and Lubricating Spots
Work Grease Required Tools Check
14.3.2.1 PCB
Positioning
Section
Upper Surface of Feeder
Base
Cleaning
----- Vacuum Cleaner
14.3.2.2 Conveyor
Section
Support Pin Detection
Sensors
Cleaning
----- Rag
PCB Detection Sensor,
PEC Detection Sensor
Fiber
PCB Detection Sensor
Mirror
Cleaning
----- Rag
T6
14.2.2 Quarterly Maintenance
Grease Symbols
DE1 : DAPHNE EPONEX GREASE No. 1
NM1 : MOLYNOC GREASE AP1
Notice
Lubrication must be made on the *-marked items after initial month and
every 3 months for the subsequent use.
Object Unit
Inspection, Cleaning,
and Lubricating Spots
Work Grease Required Tools Check
14.3.2.1 PCB
Positioning
Section
* Ball Screw
Cleaning,
Lubrication
DE1 Rag
14.3.2.2 Conveyor
Section
* Linear Guide
Cleaning,
Lubrication
DE1 Hand Grease Gun
Type H
T7
14.2.3 Half-Yearly Maintenance
Grease Symbols
DE1 : DAPHNE EPONEX GREASE No. 1
IEL/V : BARRIERTA IEL/V
Object Unit
Inspection, Cleaning,
and Lubricating Spots
Work Grease Required Tools Check
14.3.2.1 PCB
Positioning
Section
Ball Screw
Splines
Cleaning,
Lubrication
DE1 Oiled Rag,
Hand Grease Gun,
SPK-3C
T8
