14.3 Maintenance Spots
Support Pin Detection Sensors
Support Pin Detection Sensors (6 places)
Every Week Cleaning
Required Time: 1 minute
Clean the support pin detection sensors with
a rag.
F33
39
OM-1646
1005-001
14.3 Maintenance Spots

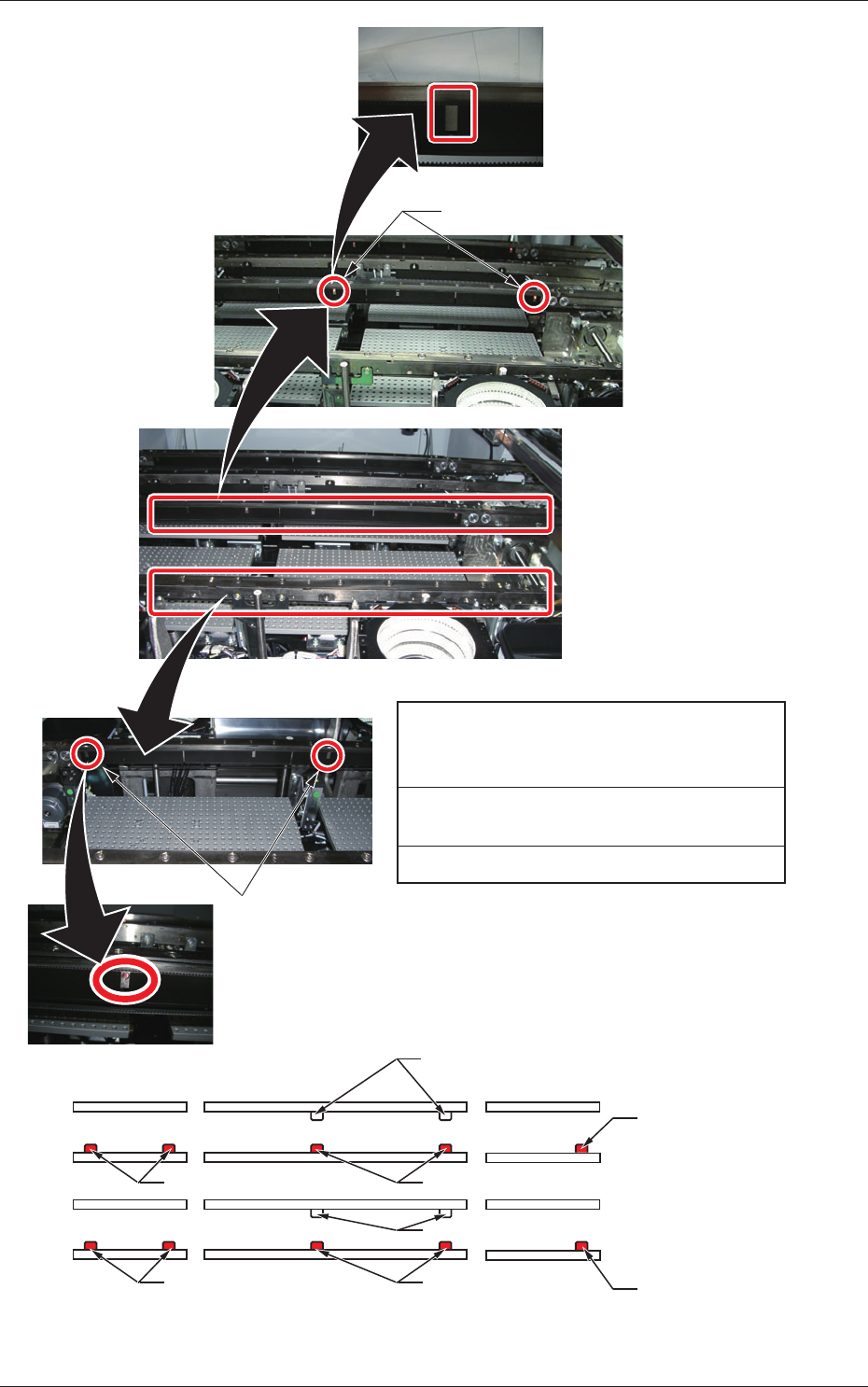

PCB Detection Sensor Mirror
At the time of Dual Transfer (Arrangement Image Diagram)
PCB Detection
Sensor Mirror
PCB Detection Sensors
PCB Detection Sensors
PCB Detection Sensor Fiber
P
CB
Detection Sensor Fiber
PCB Detection Sensors (6 places)
Every Week Cleaning
Required Time: 2 minutes
Clean the PCB detection sensors with a rag.
PCB Detection
Sensor
Fiber (4 places)
PCB Detection Sensor Mirror
(4 places)
PCB Detection Sensor Mirror
P
CB
Detection Sensor Fiber
PCB Detection Sensors
PCB Detection Sensors
F34
40
OM-1646
1005-001
15. List of Important Servicing Parts
15. List of Important Servicing Parts
Listed below are the parts for which maintenance work is required in several
years. The list below is provided for your reference.
Note
Since replacement work of important service parts requires highly
sophisticated technique, consult our service personnel for details.
Block
Name
Product Name Part No. Part Name Q'ty
Recommended
# of years
Note(a)
Exploded
Illustration
Remarks
Conveyor
Section
Transfer Pulley 223Q0663 PULLEY,TIMING 24 5
Transfer Pulley 223Q0755 PULLEY,FLAT,TIMING 4 5
Transfer Pulley 223M0059 PULLEY,FLAT 16 5
Transfer Belt 223L0383 PULLEY,TIMING 4 3
Transfer Belt 223L0384 PULLEY,TIMING 8 3
T9
