Installation Traceability

Installing Traceability on the Station Computer

Installation Manual SIPLACE Traceability 5.0 13

Traceability

Overview of the settings

► Here you can choose whether the Traceability data

should be generated.

► Furthermore you can select the File version 1.0 for

standard Traceability file or the File version 2.0 for ex-

tended Traceability file.

► Click Next to continue. Wait until the next dialog box

appears. It can take a few minutes.

NOTICE

File version 2.0

To get the full information we recommend using the File version 2.0.

► Here you can see the overview of the settings.

► Click Back to review or change the settings.

► Click Next to continue the installation.

Installation Traceability

Uninstalling Traceability from the Station Computer

14 Installation Manual SIPLACE Traceability 5.0

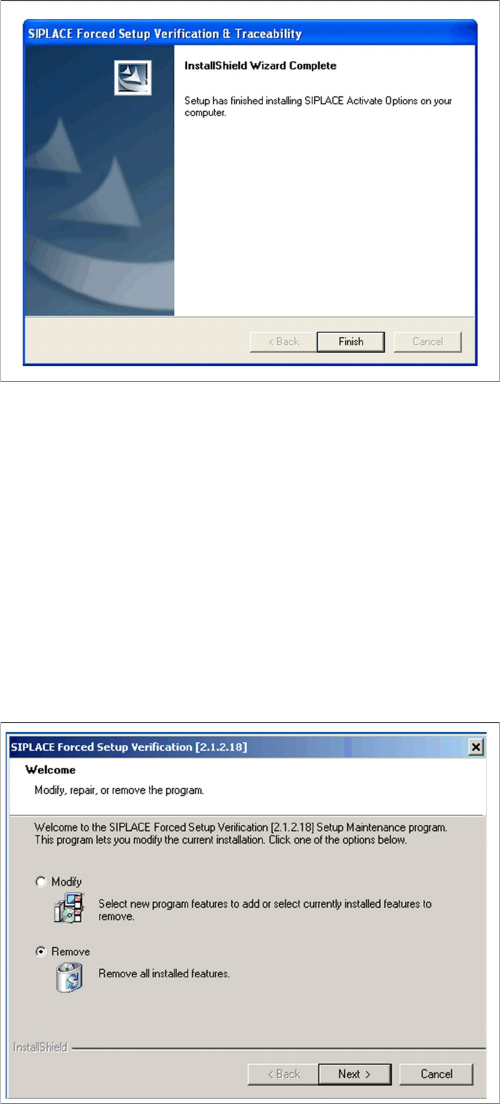

Finishing the installation

3.3

3.3 Uninstalling Traceability from the Station Computer

Uninstalling Traceability from the Station Computer

If the setup of the activation options at the Installation CD is called up again, the following dialog will ap-

pear. You can change the current settings by selecting the checkbox Modify. The following masks ap-

pear:

▪ Splice detection configuration for S-Feeders

▪ "Running tracks" empty is allowed

▪ Version of traceability data (XML-Files)

▪ Overview of the settings

▪ Finishing the installation

► Click Finish to finish the installation

► If Remove is selected, the option Forced Setup Veri-

fication and Traceability will be uninstalled.

Installation of Trace Service and Monitor

4.1.1 System Requirements for Trace Service System Requirements and Software Components for Traceability Modules

Installation Manual SIPLACE Traceability 5.0 15

4 Installation of Trace Service and Monitor

Installation of Trace Service and Monitor

4.1

4.1 System Requirements and Software Components for Traceability Modules

System Requirements and Software Components for Traceabili-

ty Modules

4.1.1

4.1.1 System Requirements for Trace Service

System Requirements for Trace Service

▪ SIPLACE Pro Interface version 13.0 (preferred) 12.1 (compatible)

▪ SIPLACE Setup Center 8.0

▪ SIS 13.0 (preferred), 12.1 (compatible)

▪ OIB 4.2 (if Traceability Data is delivered via OIB)

Supported Traceability Data Sources

▪ Traceability data in the form of XML files V1.0, V2.0, V1.1, V2.1 produced by 40x, 50x and 60x sta-

tions and Traceability data (internal format) produced by 70x stations.

NOTICE

System Requirements

The Support Media DVD included in the installation package checks the necessary system re-

quirements of your system and installs these. Amongst others e.g. Microsoft .NET Framework,

the License Manager, SIPLACE Studio and the Error Reporting tool. The use of the Support

Media V2.2 is obligatory.

The system requirements (supported operating systems and database variants) and an over-

view of the interoperable products can be found in the SIPLACE Support Media Installation

Manual, item no. [00197214-xx].

NOTICE

Support Media DVD

Perform the Prerequisite Installation for the product SIPLACE Traceability 5.0 from the Support

Media DVD. See the "Prerequisite Analyzer" chapter in the Support Media Getting Started

[00195490-xx].
