Maintenance >> Lubrication
MEC-CP842-1.0E 5-39
5.2.19 Lubricating the Index Unit
Point
The lubricant for the index units is contained within the oil cooler on the left side of
the cam box. Replace the oil in the oil cooler once every three years or after 12,000
hours of operation.
Procedure

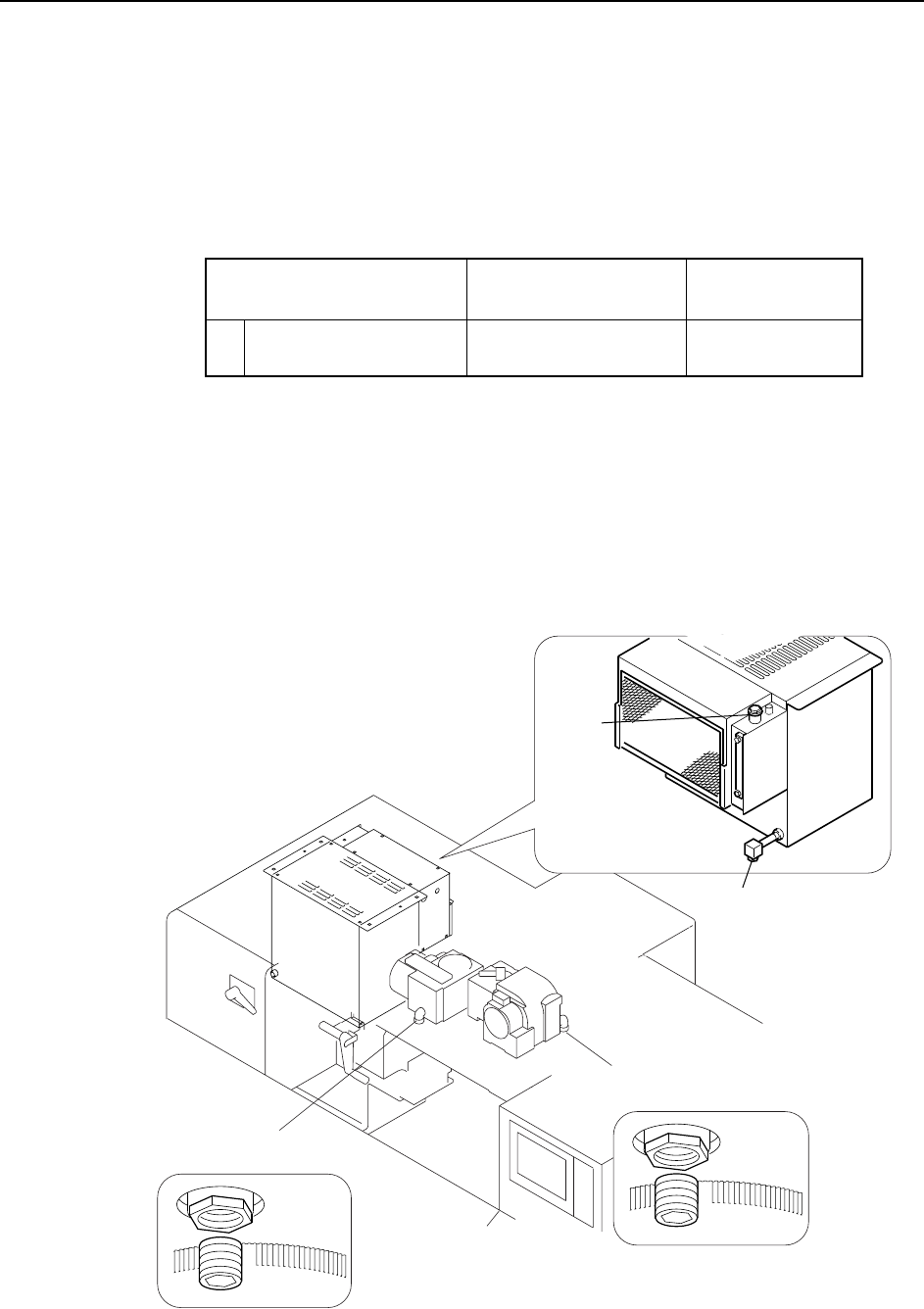

Drain the oil in the oil cooler from three locations. Refer to the diagram below for how
much oil should flow from each drain plug.
Prepare in advance a container for collecting the old oil, and a plastic sheet and card-
board to cover the machine.
C746M3T17
51
SHC 630
Every 3 years or
12,000 hours
Oil cooler
Lubrication points
Schedule
Types of lubricant
C746M3030
(51)
Oil cooler drain plug
(approx. 2,000 ~ 3,000cc)
Oil inlet
Nozzle index drain plug
(approx. 1,000cc)
Theta (Q) index drain plug
(approx. 1,000cc)
Maintenance >> Lubrication
5-40 MEC-CP842-1.0E

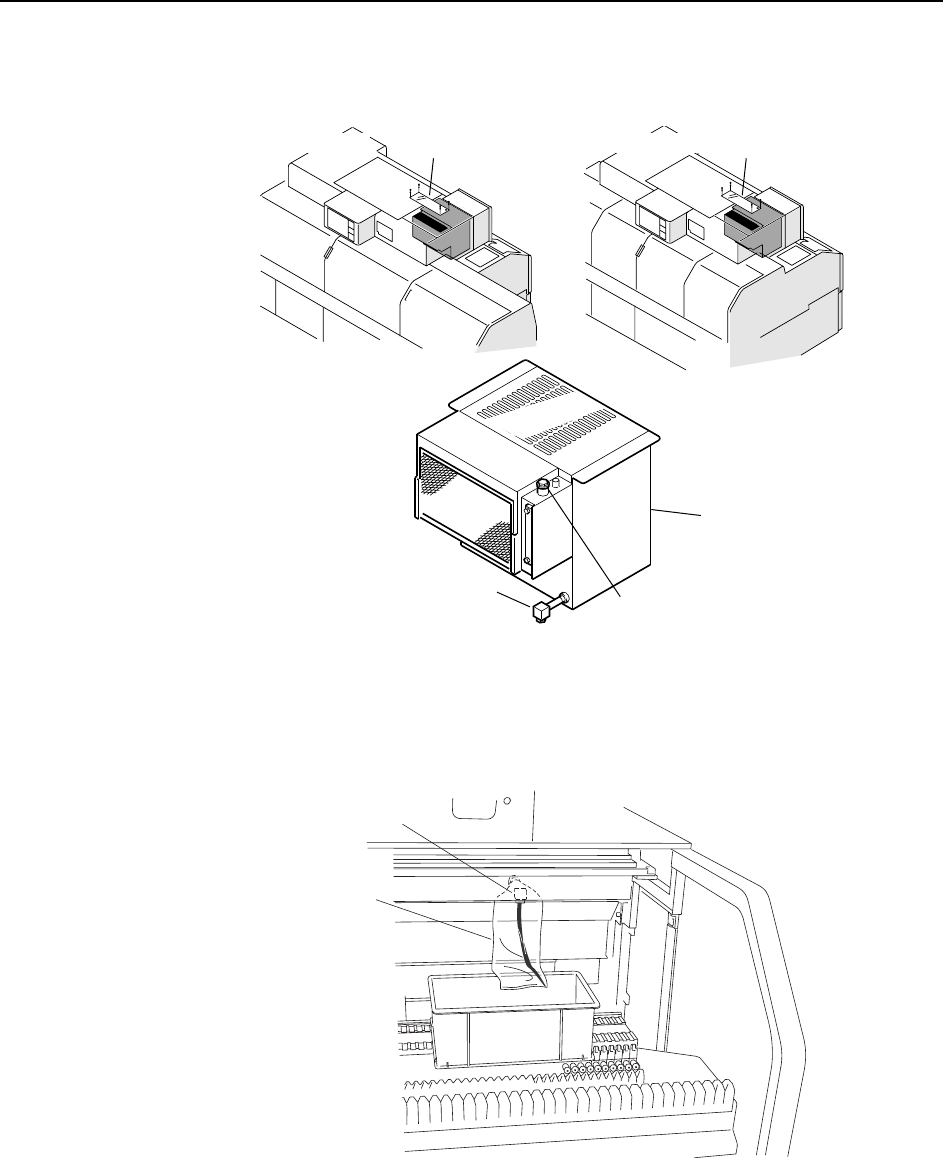

1 Remove the acrylic cover from the top of the machine and remove the cap from
the oil cooler.
2 Open the cover on the rear left of the machine.
3 Remove the old cooler oil using the drain plug. Protect the area surrounding the
drain plugs using a plastic sheet, remove the drain plug, and drain the oil into a
container.
Note
1. Cover the machine carefully when draining the oil cooler
2. The oil removed from the machine should be discarded in accordance with local ordinances
for handling waste matter.
4 Replace and properly tighten the drain plug after the oil has been removed.
5 Open the doors at the rear center of the machine.
C746M3031
<CP-842E> <CP-842ME>
Clear acrylic cove
r
Clear acrylic cover
Cap
Oil cooler
Drain plug
C746M3032
Drain plug
Plastic sheet
Maintenance >> Lubrication
MEC-CP842-1.0E 5-41

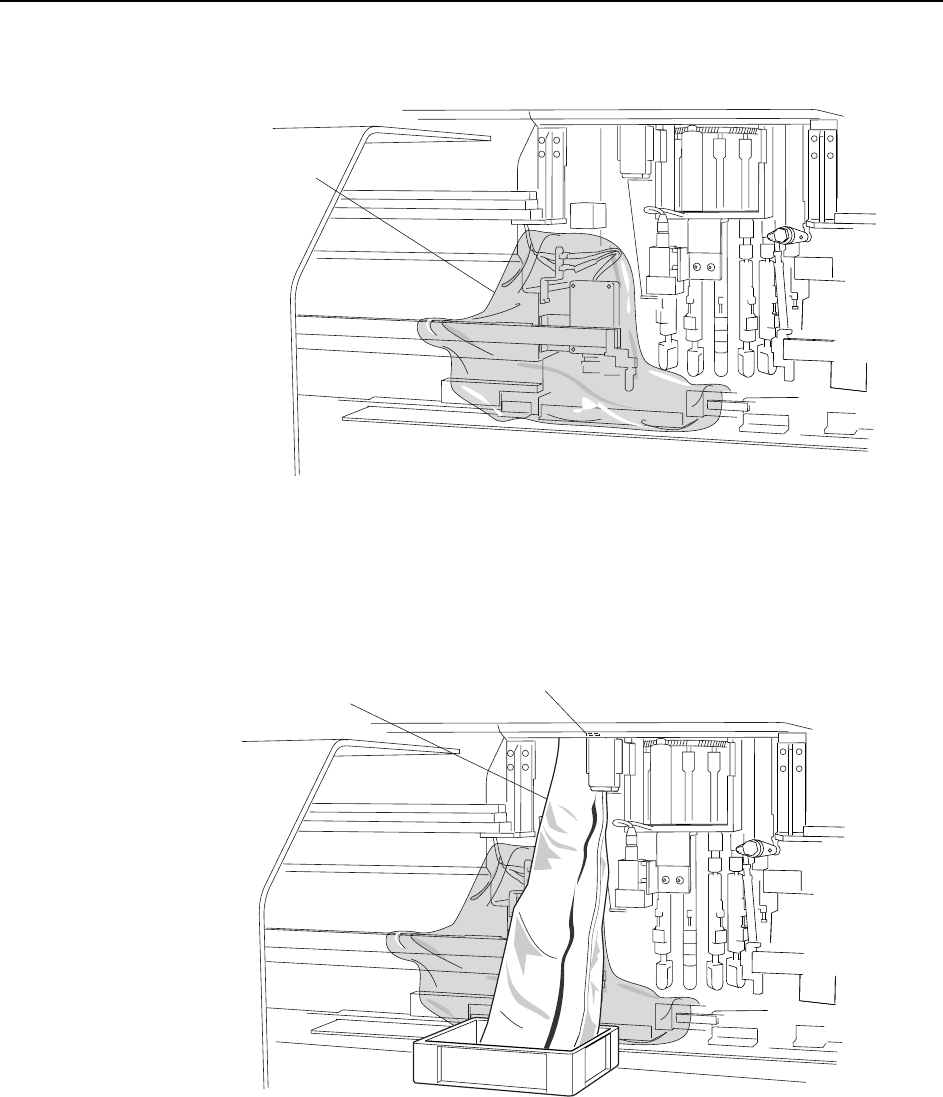

6 Cover the cameras, prism box, and surrounding areas with a plastic sheet.
Note: Cover the machine carefully when draining the oil cooler.
7 Remove the oil from the nozzle index unit drain plug.
Cover the corrugated cardboard with a plastic sheet, create a slope and drain
the contents of the nozzle index unit into a collecting bucket.
Note: The oil removed from the machine should be discarded in accordance with local ordinances
from handling waste matter.
8 Replace and properly tighten the drain plug after the oil has been drained.
9 Open the front doors.
10 Remove the oil from the theta (Q) index unit drain plug.
Use a plastic sheet as shown in the diagram below, remove the drain plug and
drain the old oil into the collecting container.
C746M3033
Plastic sheet
C746M3034
Slope
Drain plug
