Maintena nce >> Lubrication 5-48 MEC-CP842-1.0E MEMO:

Maintenance >> Lubrication

MEC-CP842-1.0E 5-47

C746M3T20

(2/2)

Every 3 months

Monthly

Every 3 months

Monthly

Every 3 months

Monthly

Every 3 months

Monthly

Every 3 months

Every 3 yrs or

12,000 hrs

Every 6 months

Daphne Exponex No. 2

Multemp LRL3

Daphne Exponex No. 2

AFC grease

Daphne Exponex No. 2

AFC grease

D-axis carriers

Rotary head

ST9 Air valve

push pin

Pallet table

Parts reject

unit

Rear cove

Nozzle

changer

Rod end

D-axis LM block

D-axis ball screw

Turret groove

Helical gear

LM rail

Spline shaft

Wave washer

Valve push pin

Cam follower

LM rail

Pallet clamp surface

Clamp pin

Cam follower

Spline shaft

Beveled gear

Moveable sections on the lever

Clutch engagement surface

Thrust bearing

Slide rail

Oil cooler

Air cylinder

AFC grease

Daphne Exponex No. 2

AFC grease

Daphne Exponex No. 2

Index unit

SHC630

Turbine oil + NASKALUBE*

*: Fuji special blend

Cam lever

Lubrication points

Schedule

Check

Types of lubricant

Rod ends

Rotary holder

Positioning pin

AFC grease

Monthly

Maintenance >> Lubrication

5-48 MEC-CP842-1.0E

MEMO:

Replacing Consumable Parts >> Nozzles

MEC-CP842-1.0E 6-1

6. Replacing Consumable Parts

6.1 Nozzles

Point

A nozzle that is bent, deformed, or clogged can cause part pick-up errors and should be

replaced. When replacing a nozzle, use care to avoid losing the nozzle spring.

Procedure

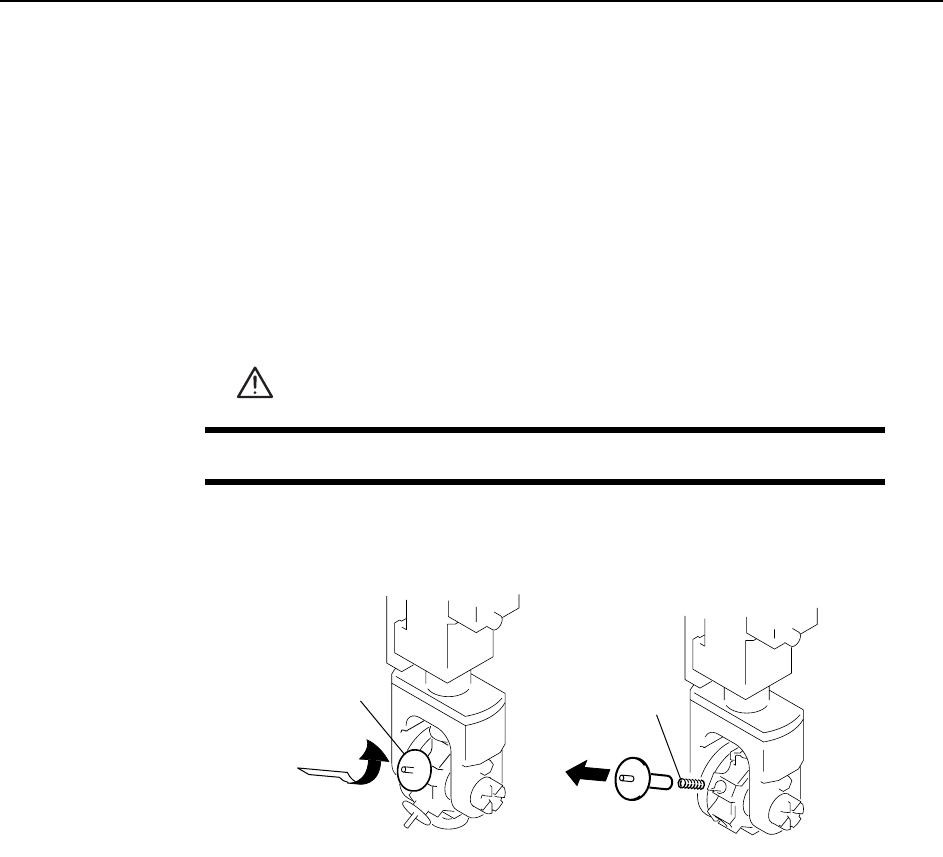

1 Remove the nozzle and spring as shown in the figure below.

Caution

1. When removing the nozzle, take care not to lose the spring. Also check that the spring is not

left within the nozzle holder.

2. To avoid nozzle bend, do not hold the nozzle at the tip during removal.

2 Reverse the removal procedure to attach a new nozzle.

WARNING

Press EMERGENCY STOP before performing this procedure.

C746M4001

Press and turn

Remove slowly

Nozzle

Spring
