Replacing Consumable Parts >> Fluorescent Nozzle Stickers MEC-CP842-1.0E 6-3 7 Use a cutter to trim off any of the sti cker that protrudes beyond the disk. 8 Remove any of the adhesi ve that may have adhere d to th…
Replacing Consumable Parts >> Fluorescent Nozzle Stickers
6-2 MEC-CP842-1.0E
6.2 Fluorescent Nozzle Stickers
Point
Fluorescent nozzle stickers that are dirty may cause vision processing errors and
should be replaced.
Procedure
1 Wash hands before replacing the sticker.
2 Use a cutter to peel (from outer edge) the old sticker off the nozzle disk.
3 Use a cloth to wipe any residual adhesive off the disk.
4 Verify that the new sticker is clean and not damaged.
5 Peel the backing off the new sticker, and push out the center hole from the fluo-
rescent side.
Note: Pushing out the center hole from the adhesive side may damage the fluorescent coating
around the hole.

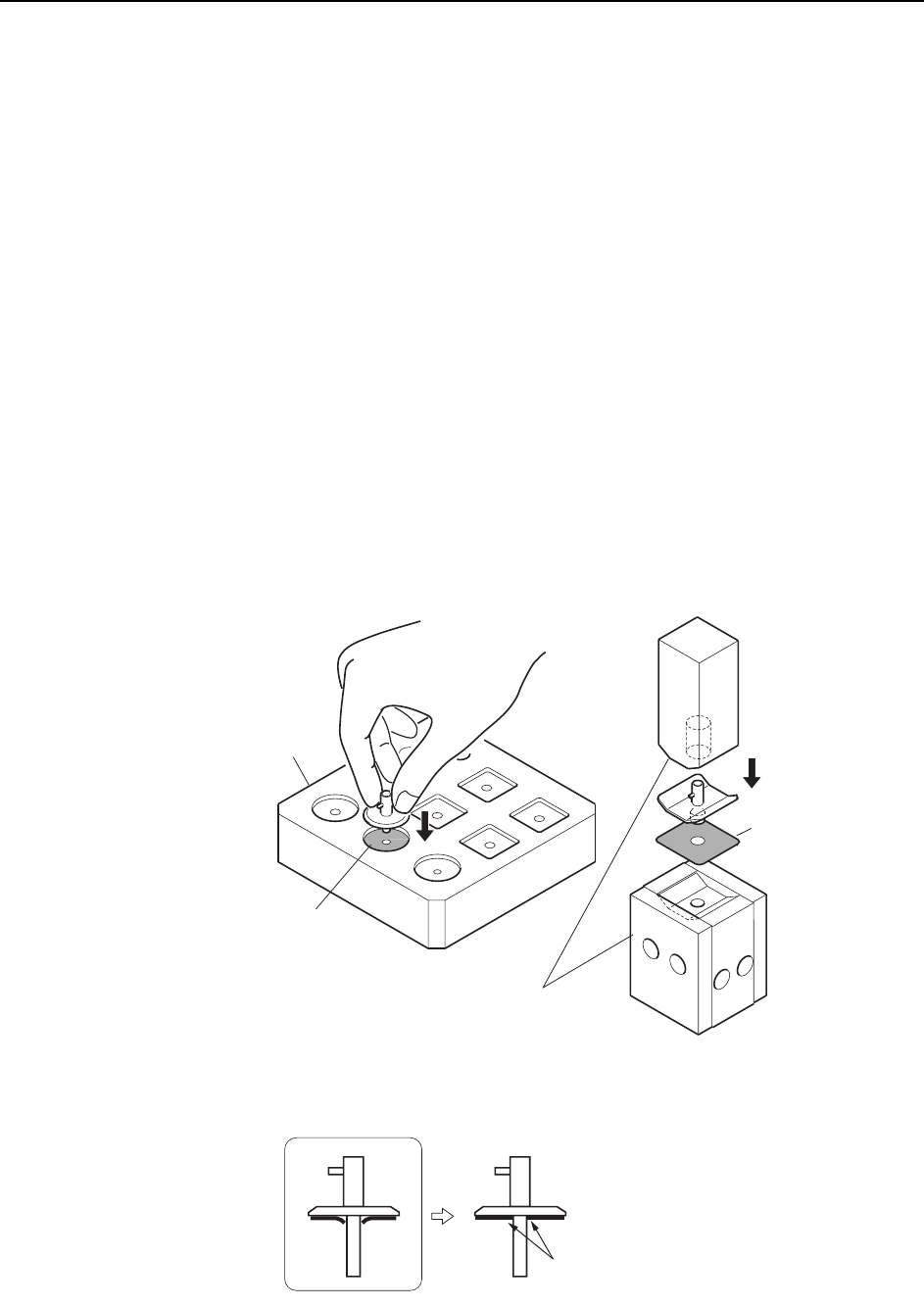

6 Align the nozzle and sticker centers, and push the sticker into place using the
jig. Be sure that there is no gap between the nozzle disk and the sticker.
Note: Make sure that the sticker is attached firmly to the nozzle.
C746M4002
Nozzle sticker
Nozzle sticke
r
Jig ( DCPJ046* )
Jig
( ADCPJ824*)
C746M4003
Attached neatly without lifting.
Replacing Consumable Parts >> Fluorescent Nozzle Stickers
MEC-CP842-1.0E 6-3
7 Use a cutter to trim off any of the sticker that protrudes beyond the disk.
8 Remove any of the adhesive that may have adhered to the nozzle pipe.

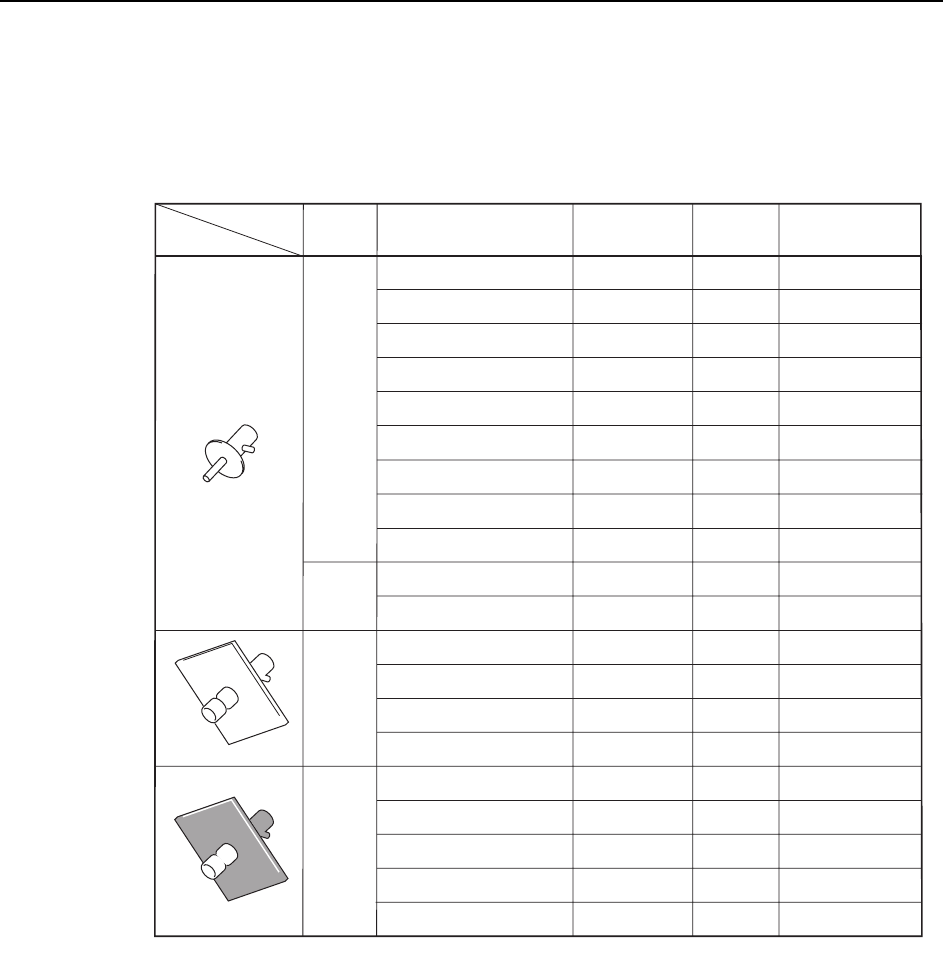

Nozzle and fluorescent sticker drawing numbers
C746M4T01
ADCPH751*
ADCPH769*
ADCPH752*
ADCPH753*
ADCPH754*
ADCPH955*
ADCPH956*
ADCPH957*
ADCPH958*
ADCPH770*
ADCPH971*
ADCPH959*
ADCPH961*
ADCPH963*
ADCPH965*
ADCPH960*
ADCPH962*
ADCPH964*
ADCPH966*
ADCPH968*
DCPH851*
DCPH851*
DCPH852*
DCPH853*
DCPH854*
DCPH855*
WPH820*
WPH821*
DCPH856*
DCPH854*
WPH820*
DCPH857*
DCPH858*
DCPH859*
DCPH860*
DCPH881*
DCPH882*
DCPH883*
DCPH884*
DCPH885*
Nozzle Size
Nozzle
shape
Round
Round
Round
MELF
Nozzle Assy
Dwg. No.
Disk Size
Fluorescent Seal
Dwg. No.
f 0.4 ( R08-004 )
f 0.4 ( R08-004 ) Short
f 0.7 ( R08-007 )
f 1.0 ( R08-010 )
f 1.3 ( R08-013 )
f 1.8 ( R16-018 )
f 2.5 ( R16-025 )
f 3.7 ( R16-037 )
f 5.0 ( R16-050 )
f 1.3 ( M08-013 )
f 2.5 ( M16-025 )
f 1.8 ( S16-018 )
f 2.5 ( S16-025 )
f 3.7 ( S16-037 )
f 5.0 ( S16-050 )
f 1.8 ( B16-018 )
f 2.5 ( B16-025 )
f 3.7 ( B16-037 )
f 8
f 8
f 8
f 8
f 8
f 16
f 16
f 16
f 16
f 8
f 16
16x16
16x16
16x16
16x16
16x16
16x16
16x16
16x16
21x21
f 5.0 ( B16-050 )
f 5.0 ( B21-050 )
Replacing Consumable Parts >> Waste Tape Cutter
6-4 MEC-CP842-1.0E
6.3 Waste Tape Cutter
Point
A broken or damaged waste tape cutter will not cut the waste tape properly, causing
tape clogging and tape feed problems. The waste tape cutter must be replaced at such
times.
Procedure

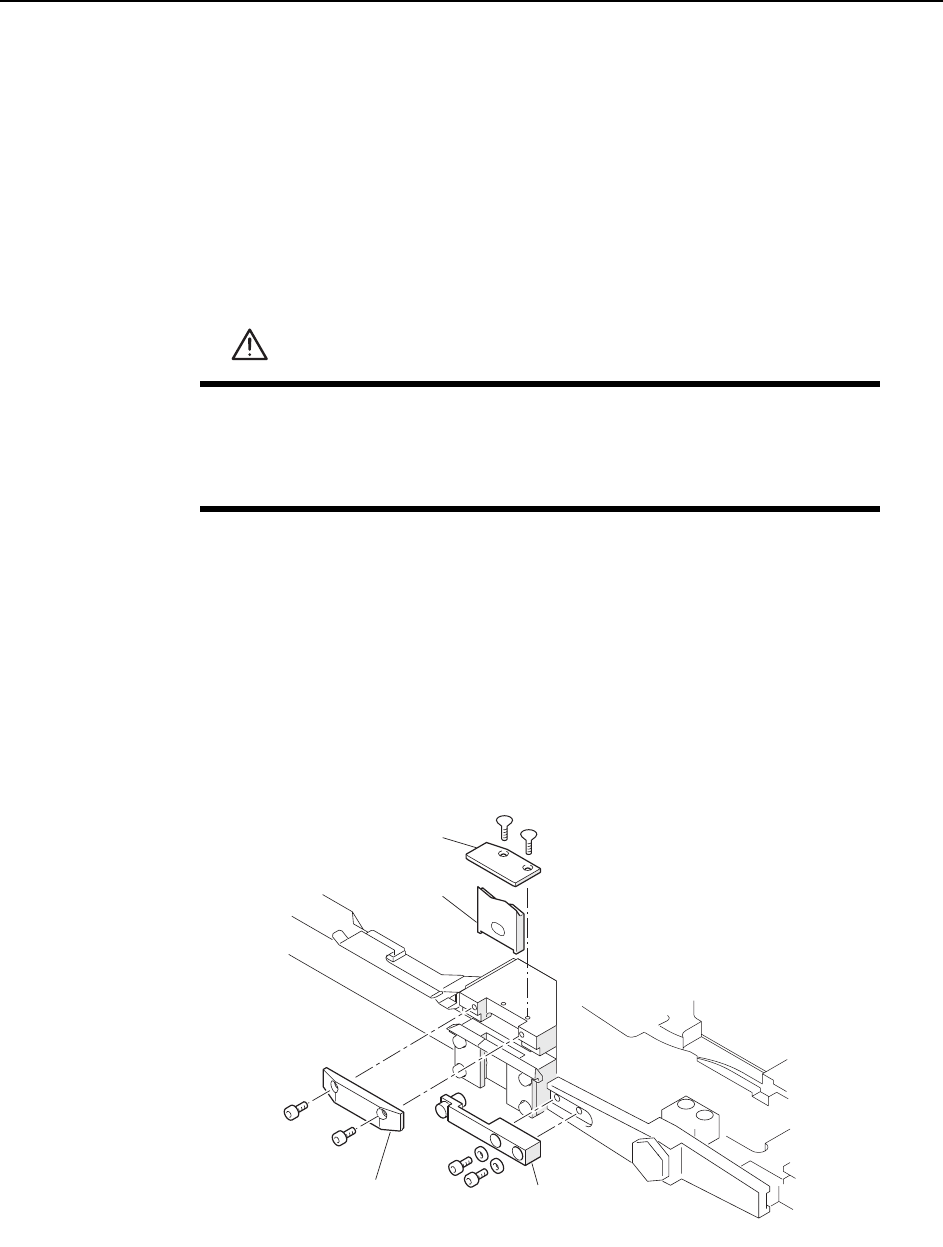

1 Remove the plate located above the waste tape cutter.
2 Remove the two bolts which secure the fixed cutter.
3 Remove the two bolts which secure the arm of the moving cutter.
4 Remove the fixed and moving cutters, and mount the new fixed and moving cut-
ters.
Note: Apply grease to the contact points before attaching the moving cutter.
(See 5.2.9 Lubricating the Waste Tape Disposal Unit)
WARNING
• Turn the main power off before performing this procedure.
• Spring recoil may cause the cam to rotate suddenly if not at its
origin position (0°). Working inside the machine is dangerous
and requires special care.
C746M4004
Moving cutter
Fixed cutter
Arm
Plate
