Replacing Consumable Parts >> Replacing th e Carrier Clam p/Unclamp Air Cylinder Packings 6-28 MEC-CP842-1.0E MEMO:
Replacing Consumable Parts >> Replacing the Carrier Clamp/Unclamp Air Cylinder Packings
MEC-CP842-1.0E 6-27

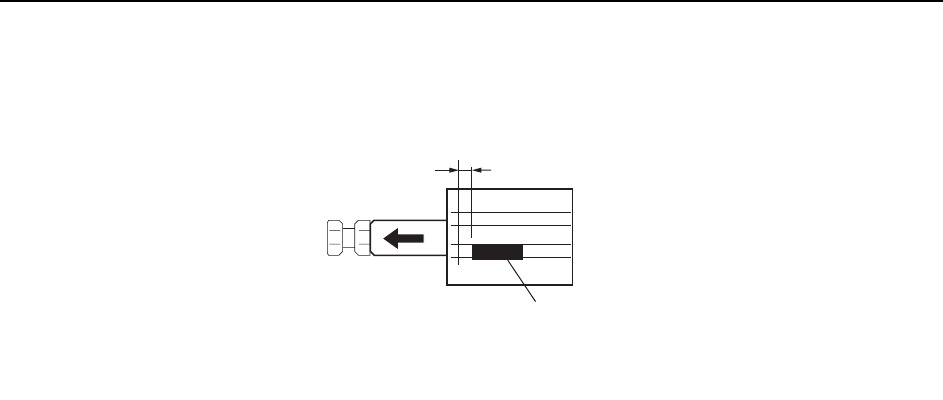

15 Extend the piston rod, and slide the sensor until it turns ON.
16 Advance the sensor an additional 0.5 mm in the ON direction, and tighten the
screw to lock the sensor in place.
17 Connect the air hoses to the air cylinder.
18 Mount the air cylinder on the carrier bracket.
19 Connect the air hose and open the valve lever fully.
Forward limit sensor
[a] is the position where the sensor will come ON when
the piston is extended.
0.5 mm
C7SM3123
Replacing Consumable Parts >> Replacing the Carrier Clamp/Unclamp Air Cylinder Packings
6-28 MEC-CP842-1.0E
MEMO:
Adjustments >> Station Adjustments
MEC-CP842-1.0E 7-1
7. Adjustments
Specialized skills and jigs are required to complete machine adjustments.
Attempting adjustments without these skills and jigs may result in damage to the
machine, so adjustments should only be performed by people who have received the
appropriate training.
7.1 Station Adjustments
7.1.1 Tape Feed Lever (ST1)
Point

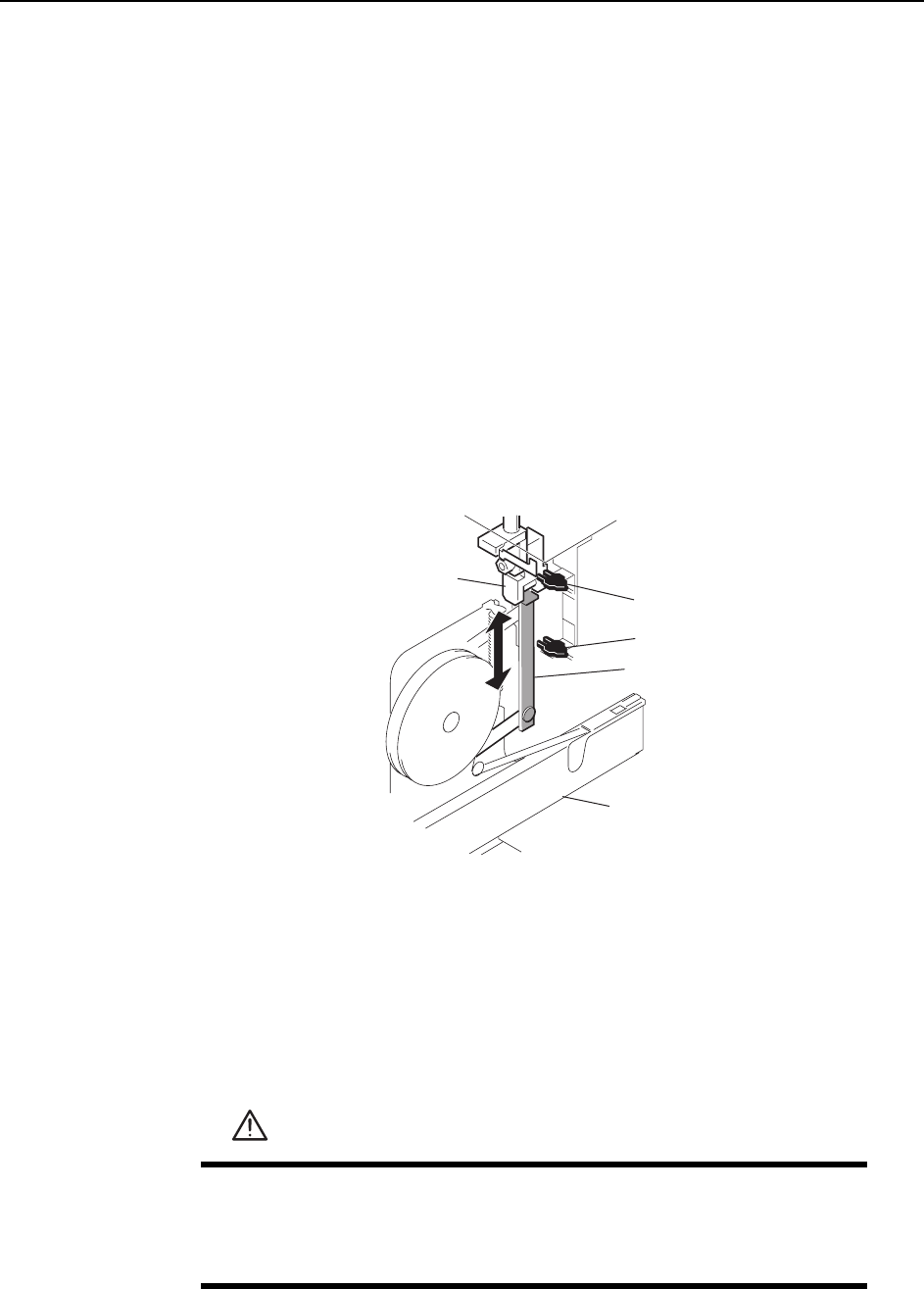

The tape feed lever is the mechanism that advances the parts tape.
The vertical movement of this lever moves the part to the pick-up position. Two sen-
sors are located in order to check if the tape feed lever reaches the advance limit and
retract limit.
Rod Adjustment
1 Set the positioning jig (ADCPJ8020) in the D1 position.
2 Press [Position] - (Position) [D1-axis] - enter [1] - [OK] and the START button to
move the positioning jig to station 1.
3 Press the EMERGENCY STOP button. This turns off the 200V power.
WARNING
• Press EMERGENCY STOP before performing this procedure.
• Exercise extreme caution when working on the machine if the cam
is not at its origin (0 deg.) Spring recoil can rotate the cam inde-
pendently.
Feeder
Advance sensor
Retract sensor
Tape feed lever (on feeder)
Tape feed lever (on machine)
C7SM4002a
