Adjustments >> Station Adjustments MEC-CP842-1.0E 7-3 Advance Sensor Po sition Adjustment 1 When the dog is at the lower limit at cam angle 200°, ensure that the sen sor is ON. 2 Set a dial gauge to the lower surfa…
Adjustments >> Station Adjustments
7-2 MEC-CP842-1.0E
4 Use the cam handle to rotate the cam to 0°.
5 Switch the I/O (TAPE FEED SOL ON) setting ON.

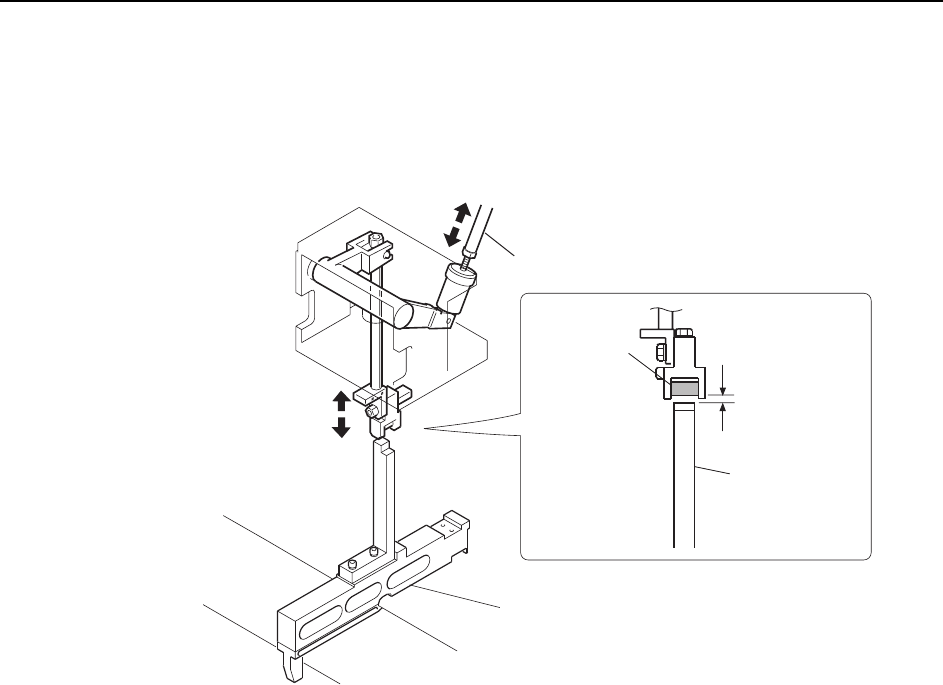

6 Adjust the rod so that there is 0.5 mm clearance between the top of the position-
ing jig and the roller.
Adjustment rod
Roller
C73M4001b
0.5 mm
Positioning jig
(ADCPJ8020)
Positioning jig (ADCPJ8020)
Adjustments >> Station Adjustments
MEC-CP842-1.0E 7-3
Advance Sensor Position Adjustment
1 When the dog is at the lower limit at cam angle 200°, ensure that the sensor is
ON.
2 Set a dial gauge to the lower surface of the roller bracket and adjust the sensor
to go off 0.5 mm above the lower limit.
Retract Sensor Position Adjustment
1 When the dog is at the upper limit at cam angle 0°, ensure that the sensor is
ON.
2 Set a dial gauge to the lower surface of the roller bracket and adjust the sensor
to go off 0.5 mm below the upper limit.
Advance senso
r
Dog Lower Limit
Dog Upper Limit
Dog
C7SM4003a
0.5 mm
Retract sensor
Dog Lower Limit
0.5 mm
Dog Upper Limit
Dog
C7SM4004a
Adjustments >> Station Adjustments
7-4 MEC-CP842-1.0E
7.1.2 Waste Tape Cutter (ST1)
Point
The waste tape cutter cuts waste tape that is advanced beyond the end of the feeder.
Vacuum takes the cut tape into the waste tape box at the front side of the machine.
Rotate the rod to adjust the extension of the movable cutter behind the fixed cutter.
Adjustment Procedure
1 Press the EMERGENCY STOP button. This turns off the 200V power.
2 Use the cam handle to rotate the cam to 0°.
WARNING
• Press EMERGENCY STOP before performing this procedure.
• Exercise extreme caution when working on the machine if the cam
is not at its origin (0 deg.) Spring recoil can rotate the cam inde-
pendently.
Adjustment rod
Fixed cutter
Movable cutter
Cutter lever
C7SM4007a
