The Machine >> Sensor Positions
MEC-CP842-1.0E 3-21

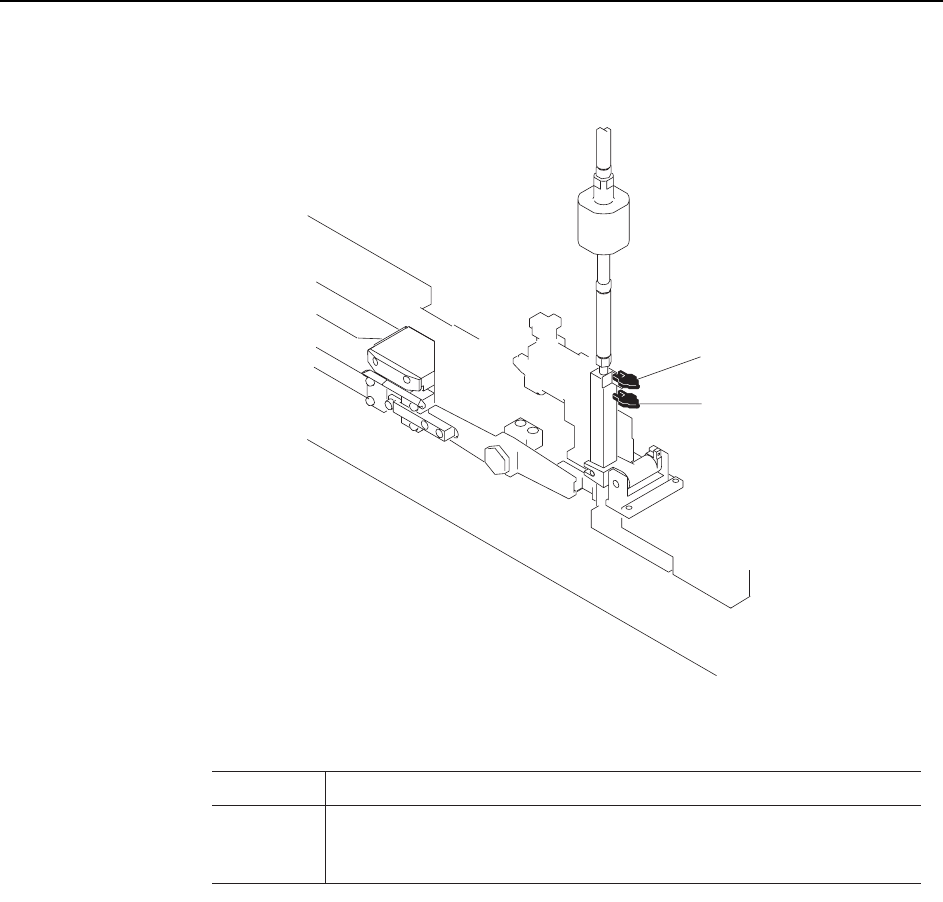

3.3.10 Tape Cutter (ST1)
X04E
X04D
C746M1019
C746M1T11
X04D
X04E
TAPE CUTTER UPPER LIMIT
TAPE CUTTER LOWER LIMIT
Sensor No.
SIGNAL NAME
The Machine >> Sensor Positions
3-22 MEC-CP842-1.0E

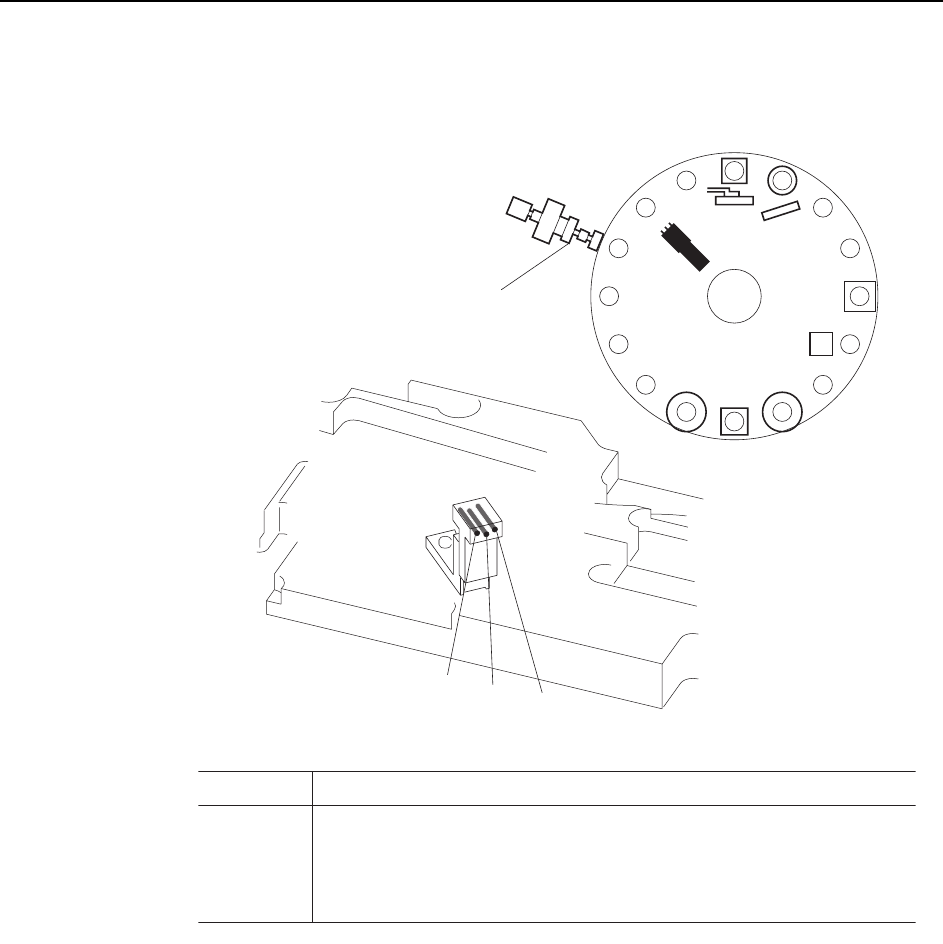

3.3.11 Nozzle Clutch (ST10)
X039
X04F
X03A
C746M1020
C746M1T12
X039
X03A
X04F
ST10 NOZZLE CLUTCH ORIGIN POSITION
ST10 NOZZLE CLUTCH ENGAGEMENT CHECK
ST11 HEAD A CHECK
Sensor No.
SIGNAL NAME
The Machine >> Sensor Positions
MEC-CP842-1.0E 3-23

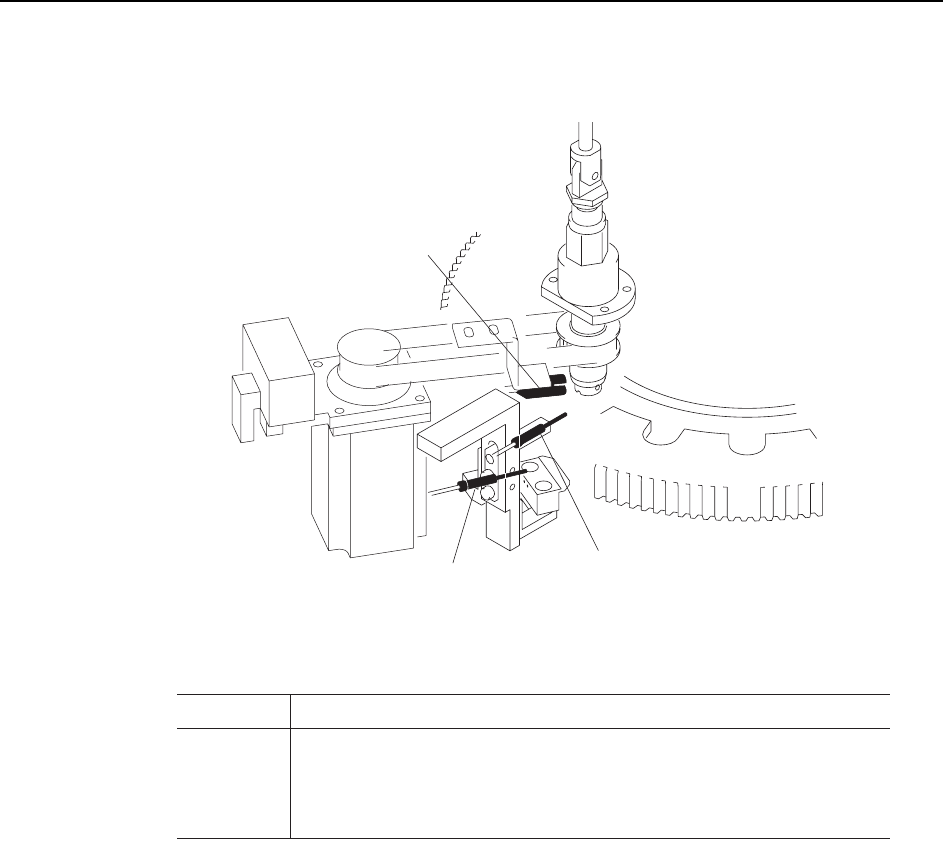

3.3.12 Nozzle Changer (ST15)
X048
X049
X04A
C746M1021
ST1
ST16
ST15
ST13
ST14 Nozzle changer
C746M1T13
X048
X049
X04A
ST15 NOZZLE TYPE CHECK 1
ST15 NOZZLE TYPE CHECK 2
ST15 NOZZLE TYPE CHECK 3
Sensor No.
SIGNAL NAME
