The Mach ine >> Sensor Positions 3-26 MEC-CP842-1.0E 3.3.14 Device T able D Servo Axis Note: CP-842ME sensors are indicated by *1, and CP-842E sensors by *2. SX041 SX042 SX04A C746M1023 SX042 SX04A *1 *2 *2 *1 C746…

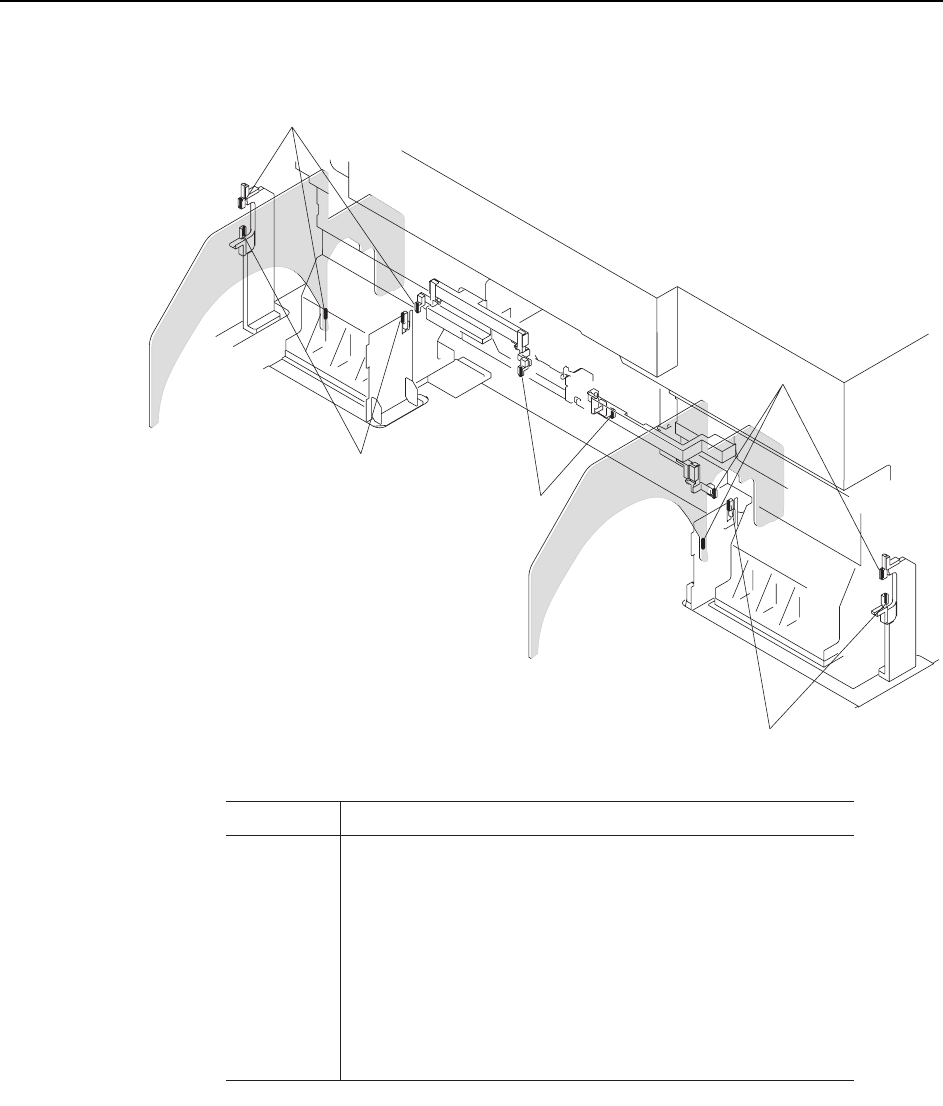

The Machine >> Sensor Positions
MEC-CP842-1.0E 3-25
<CP-842ME>
C746M1022Ea
X043
X042
X054
X044
X055
C746M1T14Ea
X042
X043
X044
X054
X055
ST1 FEEDER CHECK
D1 FEEDER CHECK UP
+D1 FEEDER CHECK
D1 FEEDER CHECK DOWN
D2 FEEDER CHECK UP
+D2 FEEDER CHECK
D2 FEEDER CHECK DOWN
Sensor No.
SIGNAL NAME

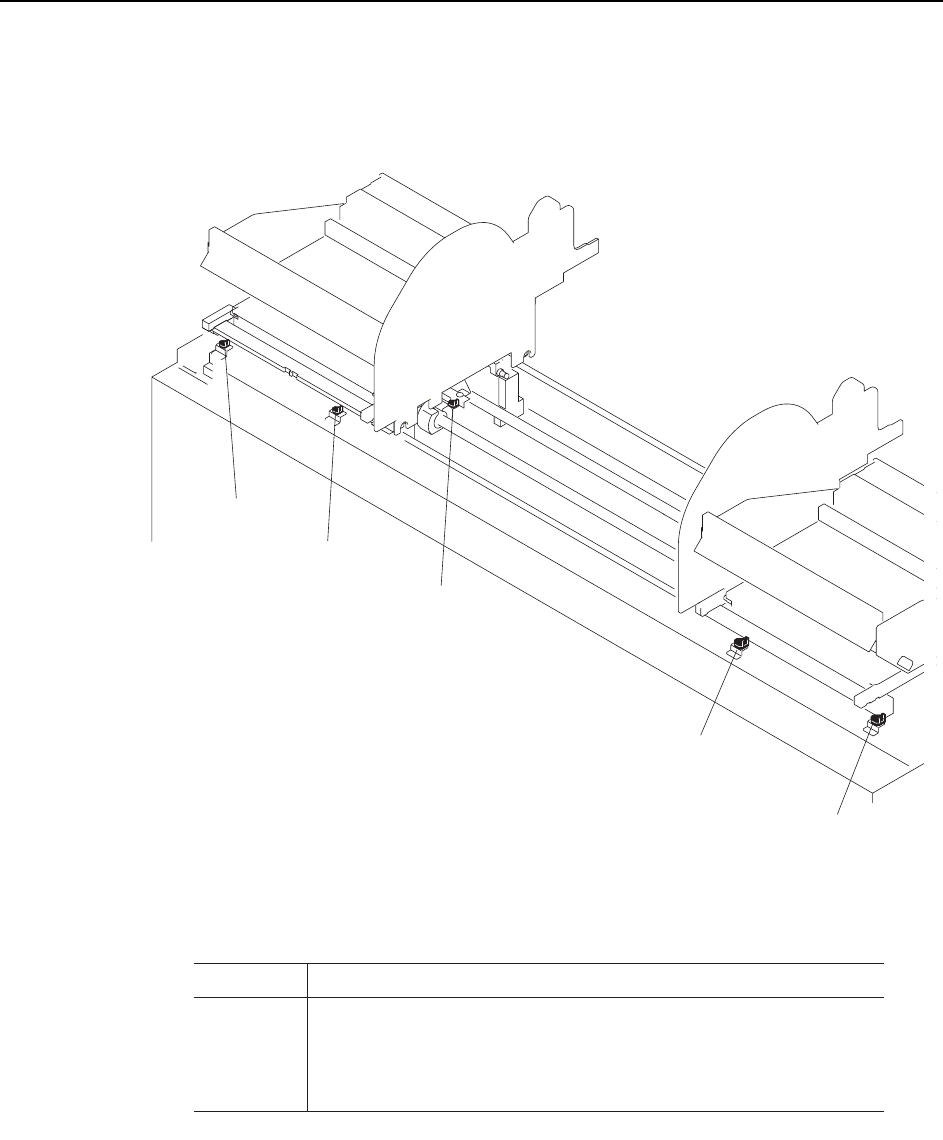

The Machine >> Sensor Positions
3-26 MEC-CP842-1.0E
3.3.14 Device Table
D Servo Axis
Note: CP-842ME sensors are indicated by *1, and CP-842E sensors by *2.
SX041
SX042
SX04A
C746M1023
SX042
SX04A
*1
*2
*2
*1
C746M1T15
SX041
SX042
SX04A
D1_AXIS_+OT
D1_AXIS_-OT
D2_AXIS_-OT
Sensor No.
SIGNAL NAME

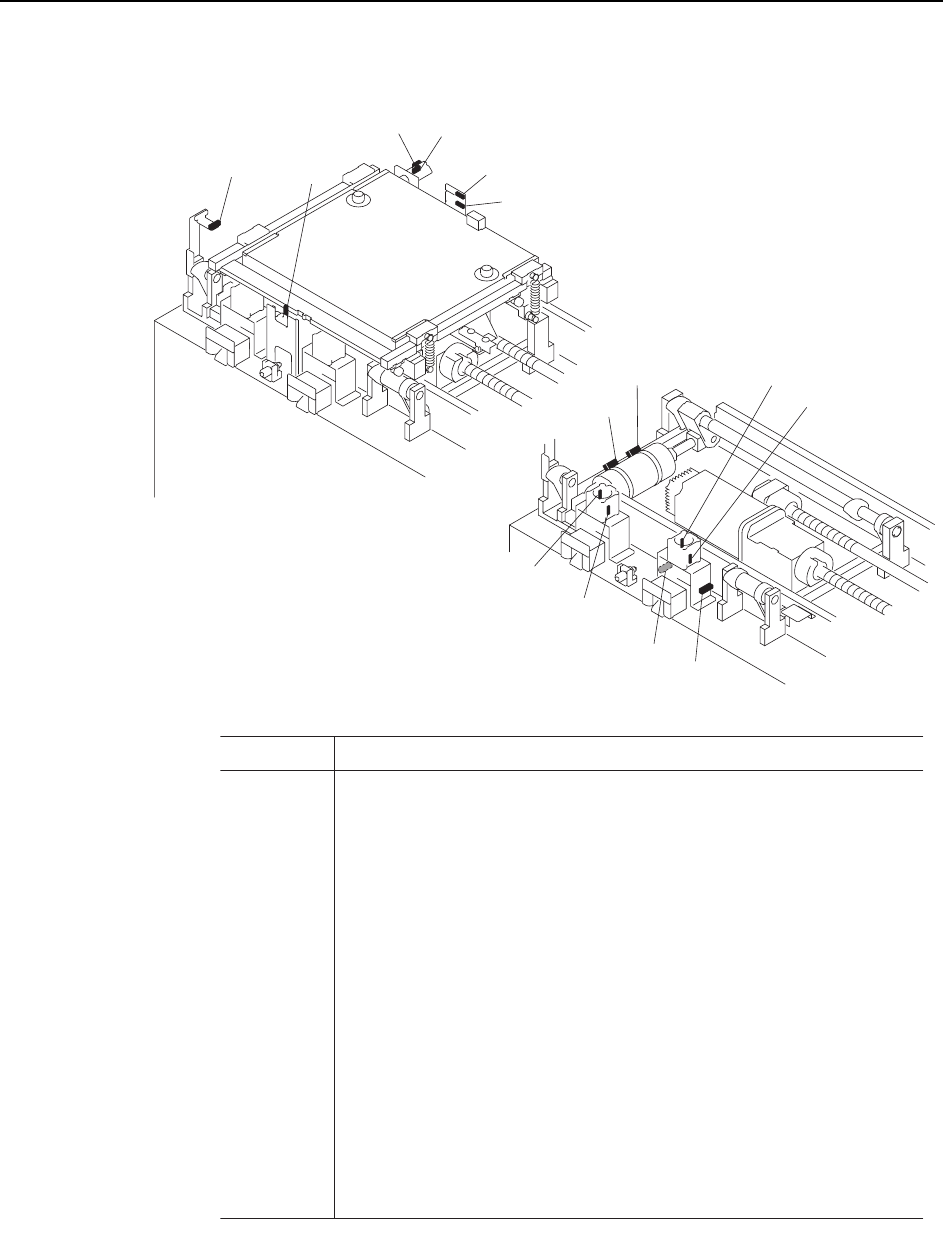

The Machine >> Sensor Positions
MEC-CP842-1.0E 3-27
D1 Table (CP-842ME option)
X088
X08A
X081
X080
X086
X087
C746M1024
X083
X082
X07F
X08C
X08B
X08B
X085
X084
C746M1T16
X07F
X080
X081
X082
X083
X084
X085
X086
X087
X088
X08A
X08B
X08C
D1 CAM CYLINDER UPPER LIMIT CHECK
D1 TABLE STOPPER LOCK CHECK
D1 TABLE STOPPER UNLOCK CHECK
D1 PCU CLAMP CHECK ( 1 )
D1 PCU UNCLAMP CHECK ( 1 )
D1 PCU CLAMP CHECK ( 2 )
D1 PCU UNCLAMP CHECK ( 2 )
D1 PALLET ARRIVE CHECK
D1 PALLET SETTING CHECK ( 1 )
D1 PALLET SETTING CHECK ( 2 )
D1 PALLET PASS CHECK ( 1 )
D1 PCU SET CHECK
D1 CAM CYLINDER LOWER LIMIT CHECK
Sensor No.
SIGNAL NAME
