Maintenance >> Cleaning

MEC-CP842-1.0E 5-7

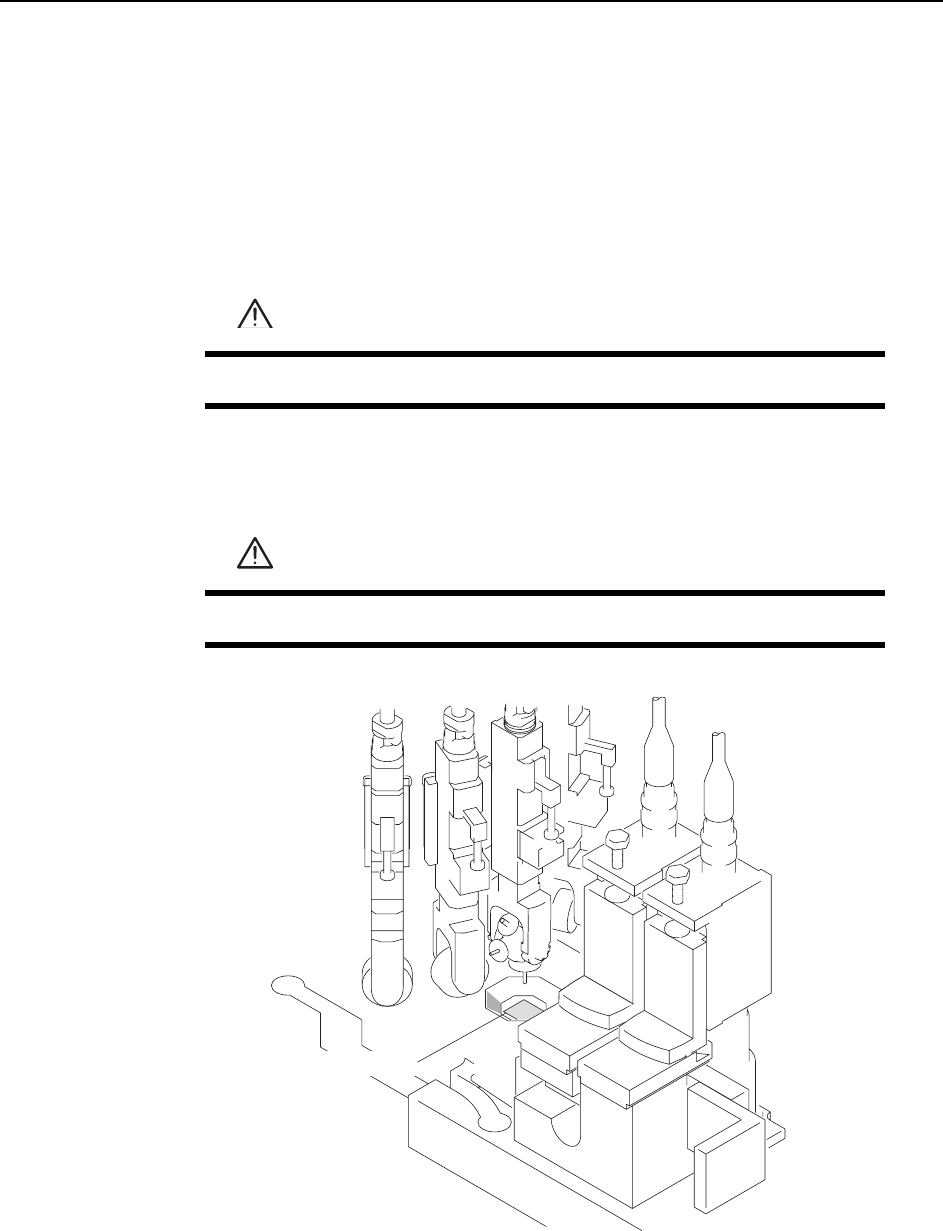

5.1.6 Camera Glass (Weekly)

Point

The camera glass should be cleaned once a week to ensure that a clear image is being

acquired. This also contributes to stable vision processing and part pick-up.

Procedure

Use a soft brush (such as those used to clean camera lenses) to clean the camera glass.

If the glass is excessively dirty, then use a commercially available glass cleaner.

WARNING

Turn the main power off before performing this procedure.

CAUTION

Take care to not bend the nozzle.

C84PCA001E

%COGTCINCUU

Maintenance >> Cleaning

5-8 MEC-CP842-1.0E

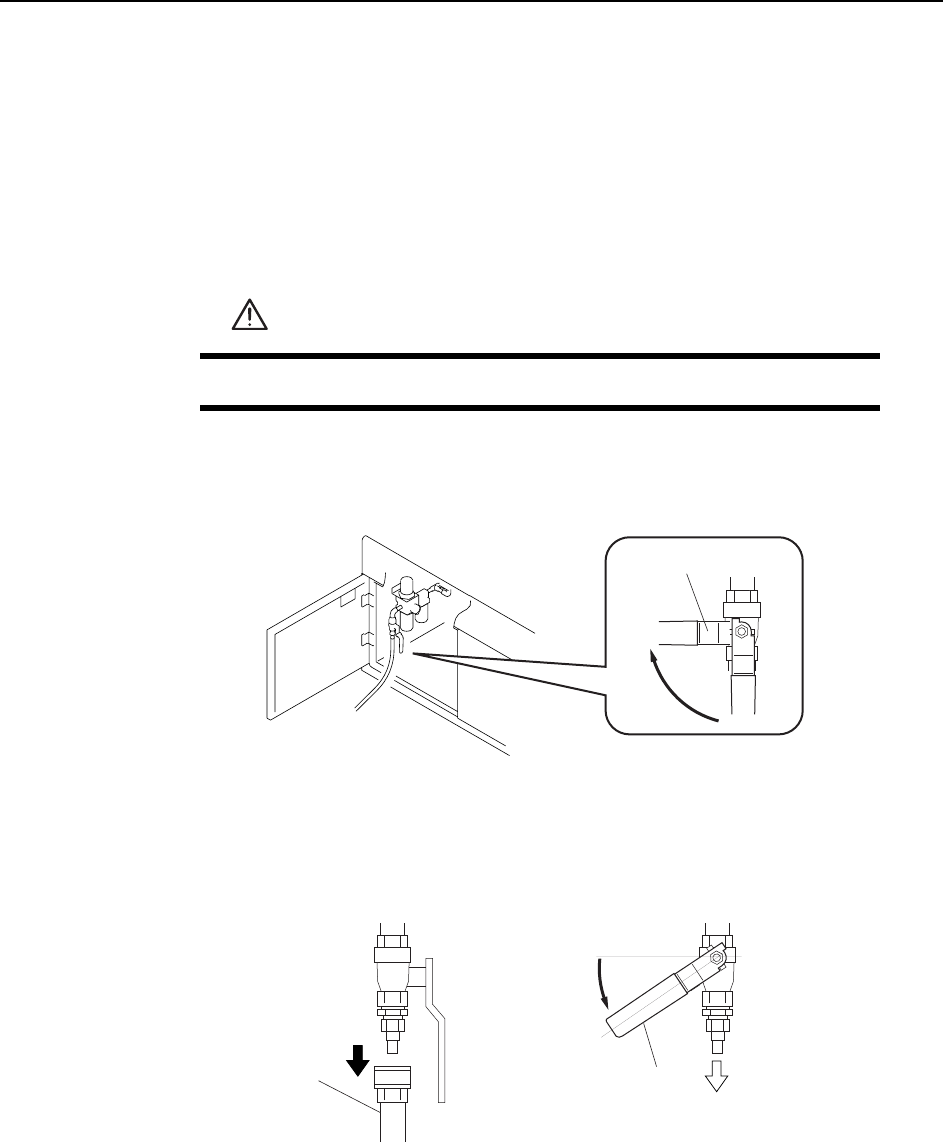

5.1.7 Filter Regulator (Weekly)

Point

The air that flows through the system’s air lines should always be clean. A dirty filter

regulator makes it impossible to supply clean air, and can cause equipment failure.

Procedure

Be sure to turn the air supply off and to release the air pressure in advance.

1 Close the air inlet valve lever and cut the external air-supply.

2 Reduce the pressure in the air hose.

After disconnecting the air hose, return the valve lever slowly to the position

indicated in the illustration below to expel the air from the air inlet.

3 Close the valve lever again when the air has been fully expelled.

CAUTION

Turn the main power off before performing this procedure.

C746M3006

Valve lever

C746M3007

Valve lever

Air

Air hose

Maintenance >> Cleaning

MEC-CP842-1.0E 5-9

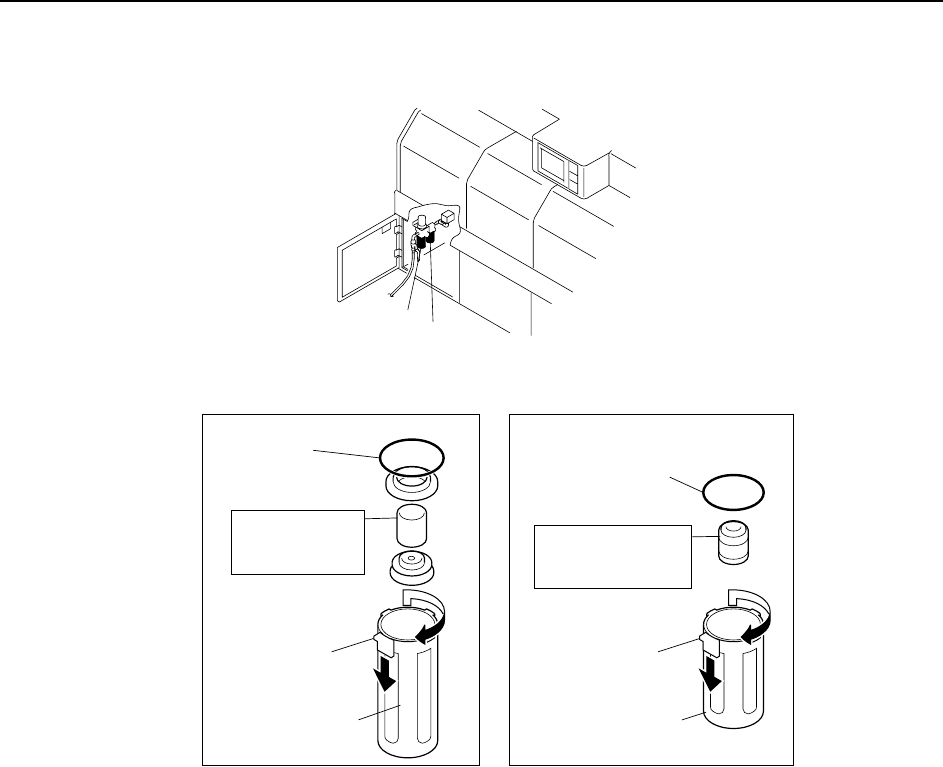

Next remove the filter case and clean the filter element.

4 Disconnect the drain hose from the regulator if one is used.

5 Remove the filter case by rotating it while pressing the lock down.

6 Remove any drainage collected in the filter case and wash the case with neutral

detergent.

7 Remove and clean the element.

Note: The element should be replaced every 2 years.

Assemble the filter regulator after cleaning, attach the air-hose, and open the valve

lever.

C746M3008

Filter regulator

AW3000-02-BD

Mist separator

AFM3000-02-D

O-ring

Lock knob Lock knob

Filter case

Model : 111585

Manufacturer : SMC

Filter element

Model : 630617

Manufacturer : SMC

Element assemby
