Maintena nce >> Lubrication 5-24 MEC-CP842-1.0E 5.2.5 Lubricating the Conveyors Arrows in the illustration indica te lubric ation points. Black arrows indicate that a grease gun is required. Note: The out-conveyor …
Maintenance >> Lubrication
MEC-CP842-1.0E 5-23

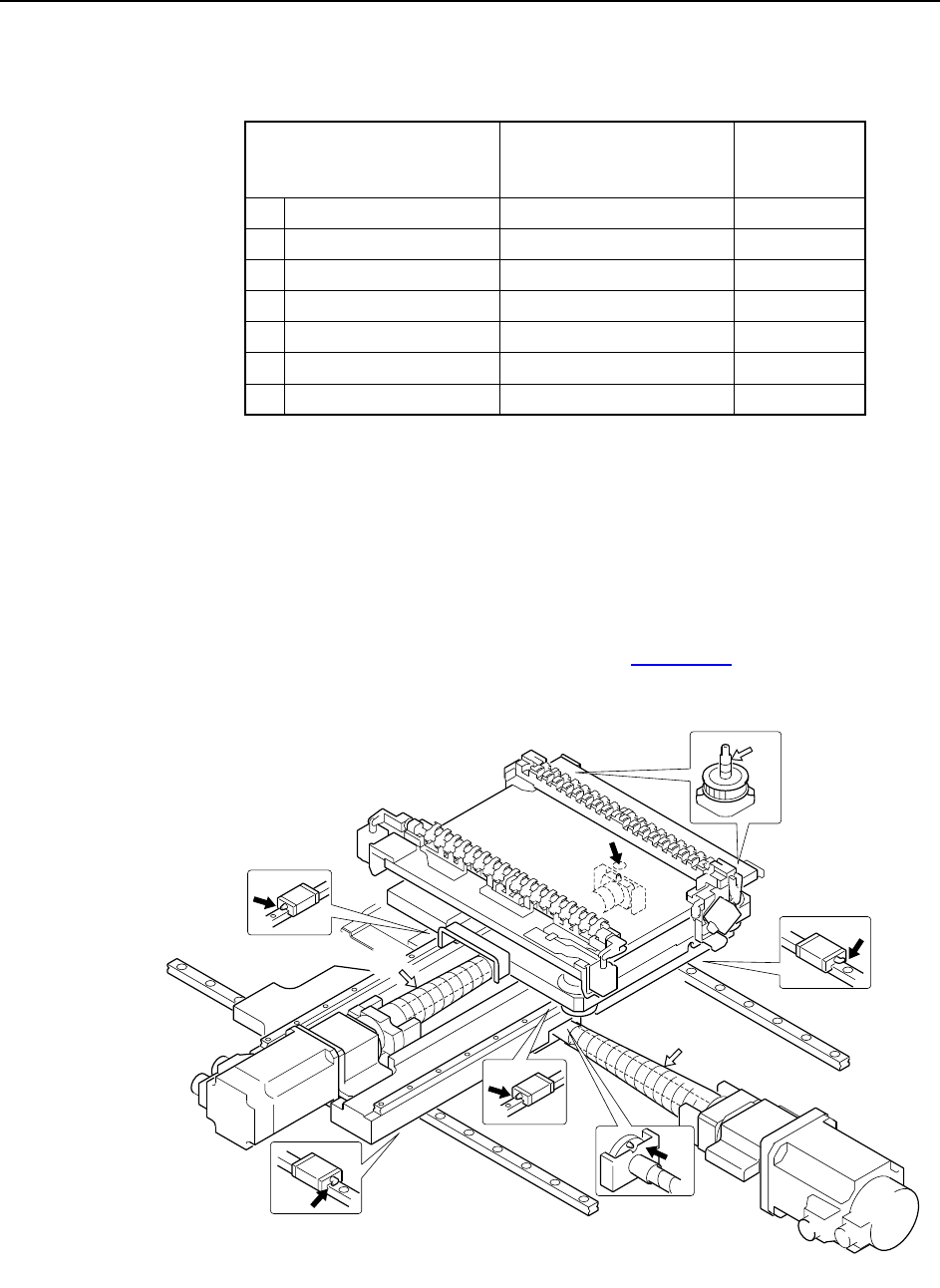

5.2.4 Lubricating the XY-table
Caution:If the grease on the Y-axis screw cover dries, the cover must be lubricated, even if the cover
is not due for periodic lubrication. Apply a thin layer of grease using a brush. Compressing
the screw cover by hand may result in injury. Furthermore, incorrect removal or installation of
the screw cover may result in damage to the machine.
Arrows in the illustration indicate lubrication points. Black arrows indicate that a
grease gun is required.
Caution:Always lubricate the X-axis/Y-axis ball screws using a grease pump to apply grease to the
fittings. Applying grease directly to the ball screws or compressing the covers by hand may
result in injury.
C746M3T03
Daphne Exponex No. 2
Multemp LRL3
Daphne Super Multi Oil 32
Daphne Exponex No. 2
Multemp LRL3
Daphne Super Multi Oil 32
Multemp SRL
Lubrication points
ScheduleTypes of lubricant
1
2
3
4
5
6
7
Every 3 months
Monthly
Every 3 months
Every 3 months
Monthly
Every 3 months
Monthly
X-axis LM block
X-axis ball screw
X-axis screw cover
Y-axis screw cover
Y-axis LM block
Y-axis ball screw
Z-axis ball screw
(1)
(1)
(4)
(4)
(2)
(5)
(7)
C746M3017
(6)
(3)
Maintenance >> Lubrication
5-24 MEC-CP842-1.0E

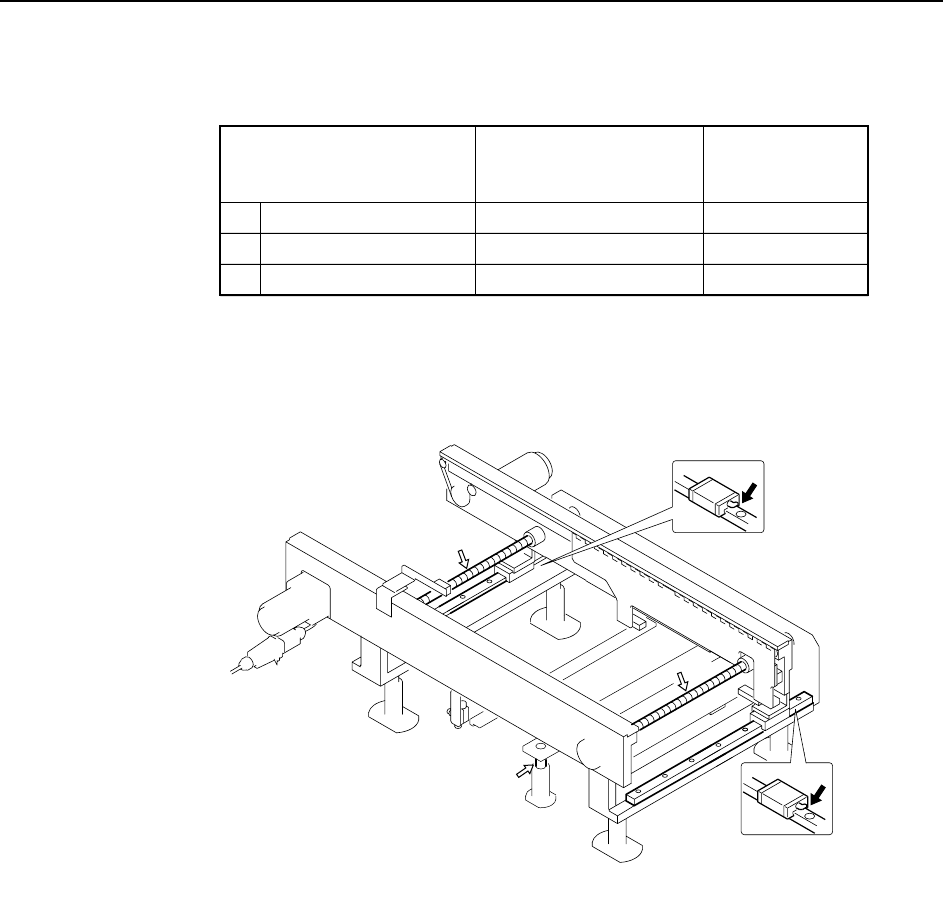

5.2.5 Lubricating the Conveyors
Arrows in the illustration indicate lubrication points. Black arrows indicate that a
grease gun is required.
Note: The out-conveyor should be lubricated in the same manner as the in-conveyor shown in the
figure above.
C746M3T04
Lubrication points
Schedule
Types of lubricant
8
9
10
Every 6 months
Every 6 months
Every 6 months
Ball screw
Lifter guide bar
LM block
Daphne Exponex No. 2
Daphne Exponex No. 2
Daphne Exponex No. 2
(8)
(8)
(10)
C746M3018
(9)
(10)
Maintenance >> Lubrication
MEC-CP842-1.0E 5-25

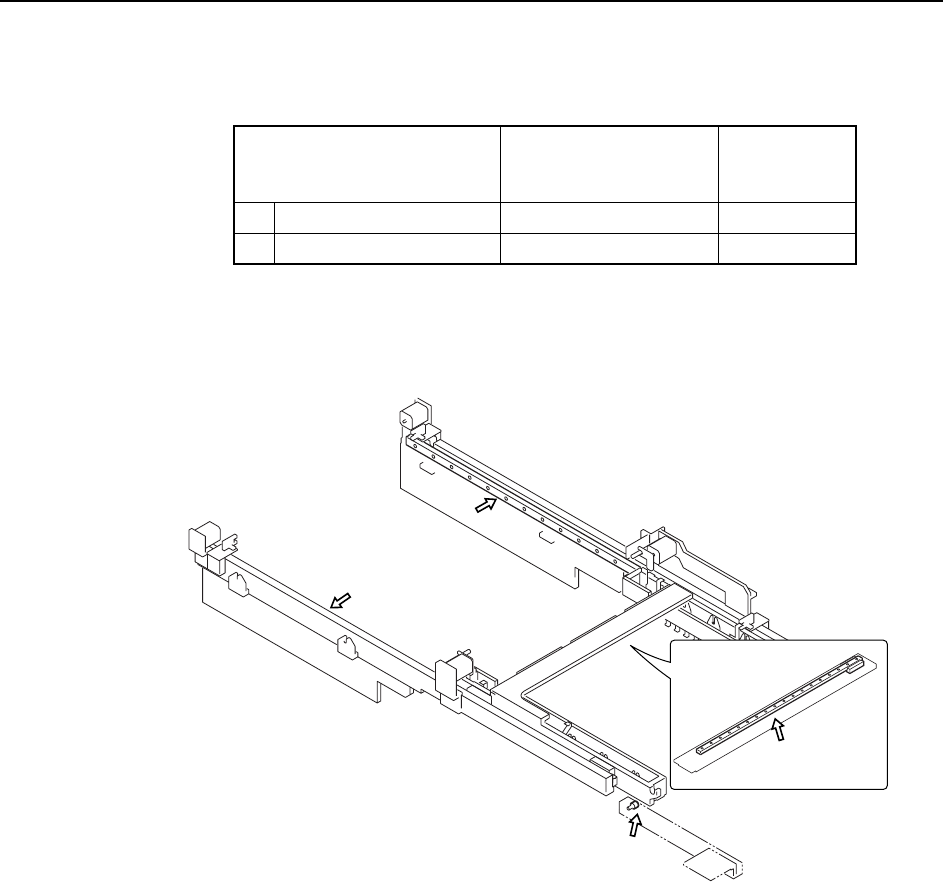

5.2.6 Lubricating the Carriers
Arrows in the illustration indicate lubrication points.
Note: The out-carrier should be lubricated in the same manner as the in-carrier shown in the figure
above.
C746M3T05
Lubrication points
Schedule
Types of lubricant
11
12
Every 3 months
Every 3 months
LM rail
Cam follower
Daphne Exponex No. 2
Daphne Exponex No. 2
(11)
(11)
(12)
C746M3019
(11)
