Maintena nce >> Lubrication 5-32 MEC-CP842-1.0E 5.2.12 Lubricating the D-axis Carriers Arrows in the illustration indica te lubric ation points. Black arrows indicate that a grease gun is required. C746M3T10 30 31 …
Maintenance >> Lubrication
MEC-CP842-1.0E 5-31
5.2.11 Lubricating the Rod Ends
Arrows in the illustration indicate lubrication points. Black arrows indicate that a
grease gun is required.
C746M3T09
29
Lubrication points
Schedule
Types of lubricant
Every 3 months
Rod end
Daphne Exponex No. 2
C746M3023
(29)
ST14
Rod end
(has a grease fitting)
Inside of the cam box
Maintenance >> Lubrication
5-32 MEC-CP842-1.0E

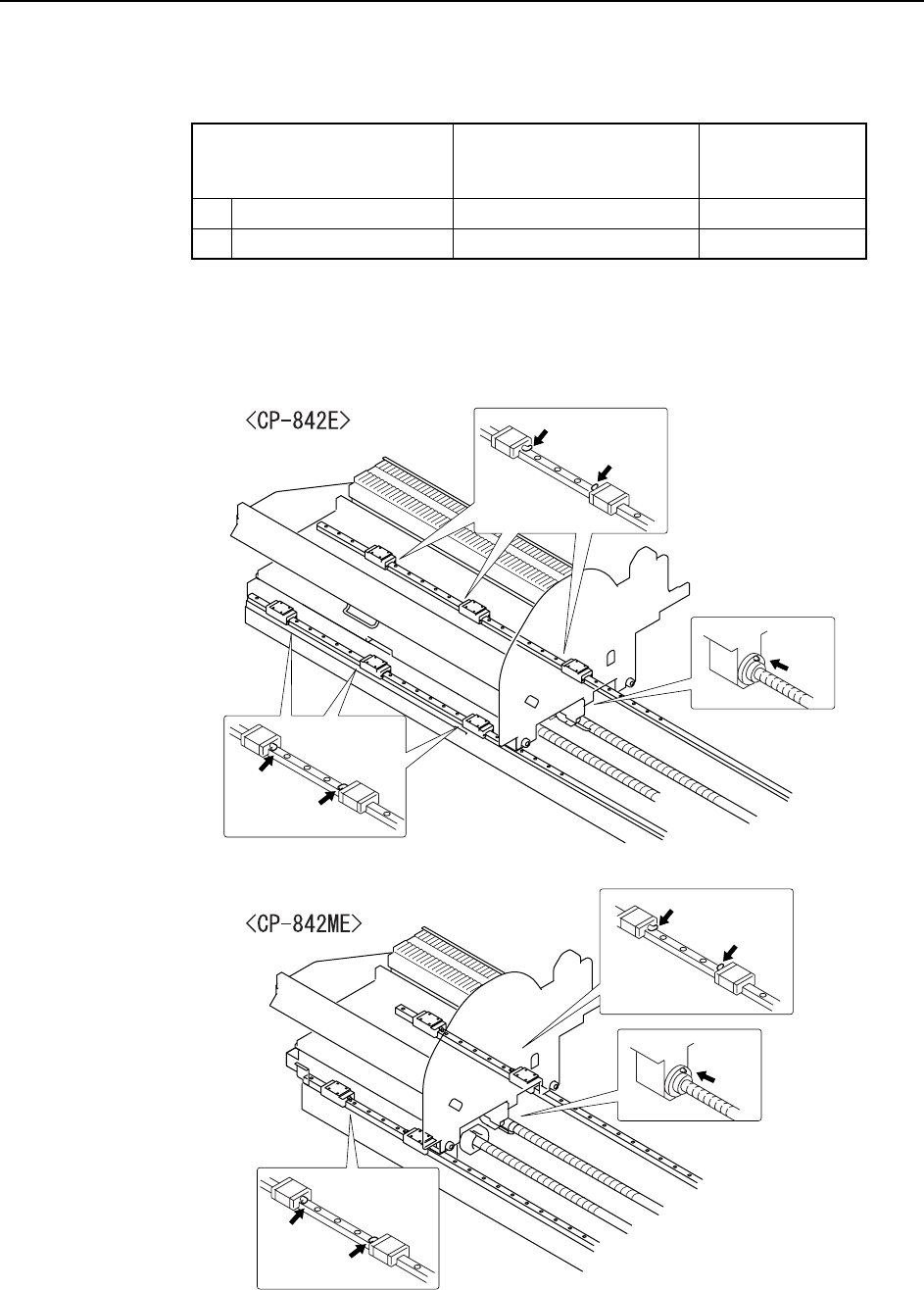

5.2.12 Lubricating the D-axis Carriers
Arrows in the illustration indicate lubrication points. Black arrows indicate that a
grease gun is required.
C746M3T10
30
31
Lubrication points
Schedule
Types of lubricant
Every 3 months
Monthly
D-axis LM block
D-axis ball screw
Daphne Exponex No. 2
Multemp LRL3
C746M3024
(1)
(31)
(1)
(31)
(30)
(30)
(30)
(30)
(30)
(30)
(30)
(30)
Maintenance >> Lubrication
MEC-CP842-1.0E 5-33
5.2.13 Lubricating the Rotary Head
Arrows in the illustration indicate lubrication points.
C746M3T11
AFC grease
AFC grease
Lubrication points
Schedule
Types of lubricant
32
33
34
35
36
37
Monthly
Monthly
Monthly
Monthly
Every 3 months
Monthly
Turret groove
Helical gear
LM rail
Spline shaft
Wave washer
Pin
Daphne Exponex No. 2
Daphne Exponex No. 2
Daphne Exponex No. 2
AFC grease
C746M3025
(32)
(34)
(35)
(36)
(37)
(33) (33)
ST1
