Maintenance >> Lubrication
MEC-CP842-1.0E 5-37
5.2.17 Lubricating the Nozzle Changer
Arrows in the illustration indicate lubrication points.
C746M3T15
AFC grease
AFC grease
Monthly
Monthly
Daphne Exponex No. 2
Lubrication points
Schedule
Types of lubricant
45
Spline shaft
Beveled gear
Every 3 months
Monthly
Monthly
Daphne Exponex No. 2
Daphne Exponex No. 2
46
47
48
49
Moveable sections on the lever
Clutch engagement surface
Thrust bearing
C746M3028
ST14
(45)
(49)
(48)
(45)
(46)
(47)
(49)
(49)
Apply grease then wipe
clean to leave just a
thin layer.
Note: Apply AFC grease to the outside surface of the
thrust bearing and rotate it to work the grease
into the bearing.
Disassembly is not required.
Maintenance >> Lubrication
5-38 MEC-CP842-1.0E
5.2.18 Lubricating the Rear Cover

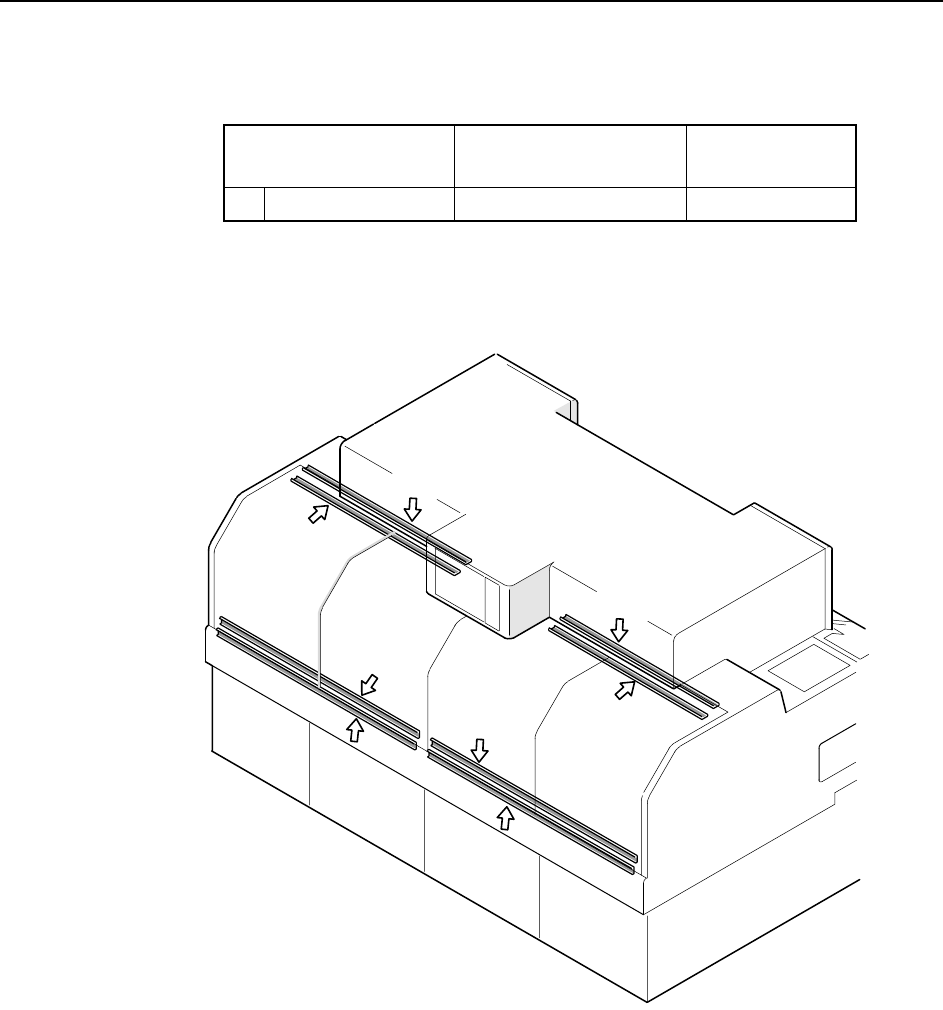

Arrows in the illustration indicate lubrication points.
Note: The above drawing shows the CP-842ME. Lubricate the CP-842E in the same way.
C746M3T16
50
Daphne Exponex No. 2 Every 3 months
Lubrication points
Schedule
Types of lubricant
Slide rail
C746M3029
(50)
(50)
(50)
(50)
(50)
(50)
(50)
(50)
Maintenance >> Lubrication
MEC-CP842-1.0E 5-39
5.2.19 Lubricating the Index Unit
Point
The lubricant for the index units is contained within the oil cooler on the left side of
the cam box. Replace the oil in the oil cooler once every three years or after 12,000
hours of operation.
Procedure
Drain the oil in the oil cooler from three locations. Refer to the diagram below for how
much oil should flow from each drain plug.
Prepare in advance a container for collecting the old oil, and a plastic sheet and card-
board to cover the machine.
C746M3T17
51
SHC 630
Every 3 years or
12,000 hours
Oil cooler
Lubrication points
Schedule
Types of lubricant
C746M3030
(51)
Oil cooler drain plug
(approx. 2,000 ~ 3,000cc)
Oil inlet
Nozzle index drain plug
(approx. 1,000cc)
Theta (Q) index drain plug
(approx. 1,000cc)
