Gantry System 1 Page 11 / 16 18.11.2021
Gantry System 1
Page 10 / 16 18.11.2021
Gantry System 1
Page 11 / 16 18.11.2021
Gantry System 1
Page 12 / 16 18.11.2021

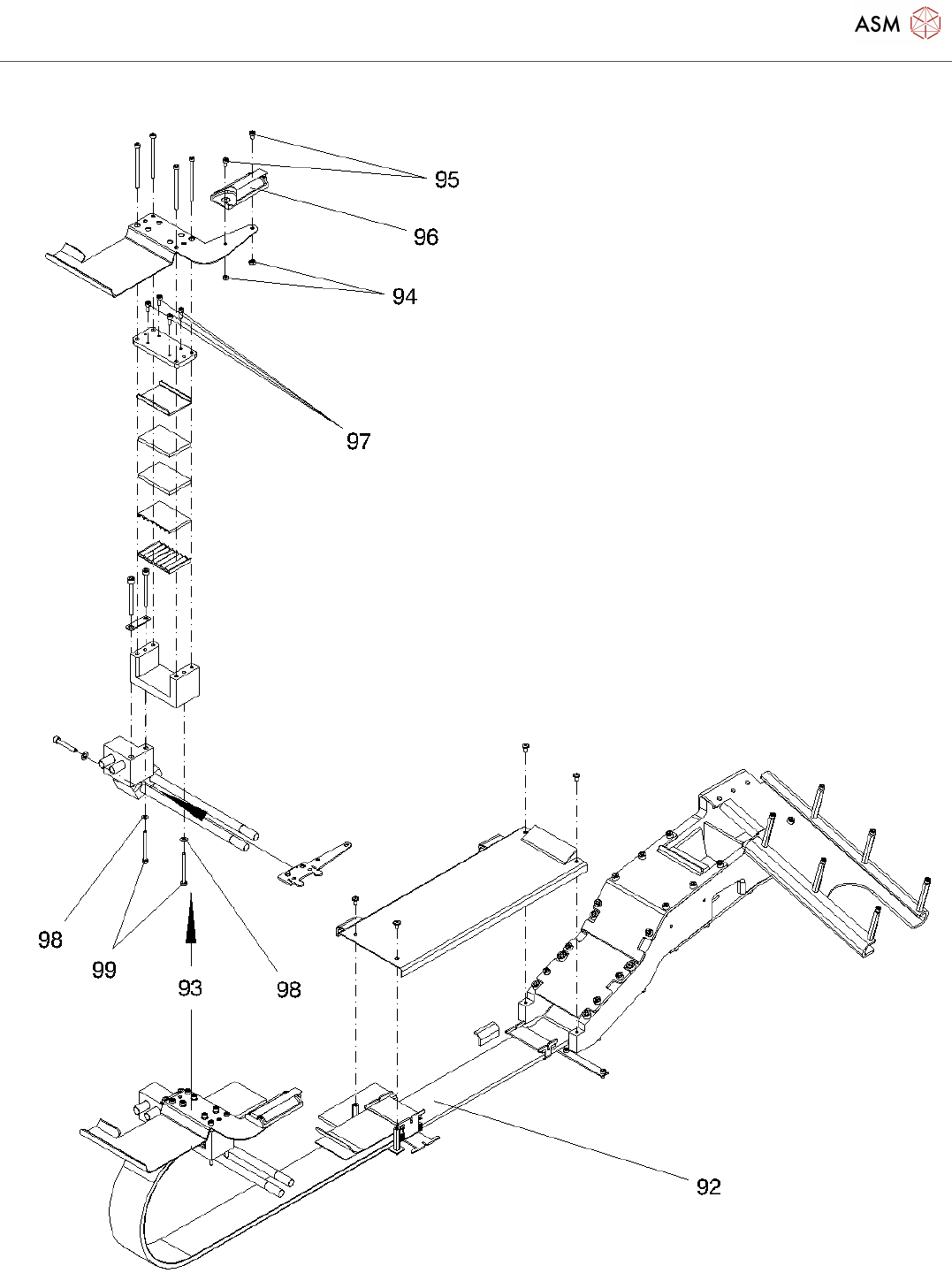

Pos. Item no. Description Part marking
1 03113996-02 GANTRY SYSTEM 1 CPL.
2 03113208-01 ASSY X AXIS GANTRY 1 CPL.
3 03123236-02 X HOLDER GANTRY 1 TX
4 03127134-01 SHEET METAL CPL.
5 03042548-01 ISO 4762 - M 3 X 25-A2-70 STANDARD PARTS
6 03059244-01 SLAB
7 03042544-01 ISO 4762 - M 3 X 12-A2-70 STANDARD PARTS
8 03008162-01 ISO 4032 - M3-A2-70 STANDARD PARTS
9 03042542-01 ISO 4762 - M 3 X 8-A2-70 STANDARD PARTS
10 03018635-01 COOLING AIR FILTER CMPL. WEAR PART
11 03054251-01 COVER
12 03054236-01 CAP
03008162-01 ISO 4032 - M3-A2-70 STANDARD PARTS
14 03003717-01 FILTER ELEMENT WEAR PART
15 03062222-01 O-RING DIN 3771 - 40 X 1,5 - N -
EPDM 70
WEAR PART
16 03007733-01 ISO 4762 - M 3 X 6-8.8,ZINC
PLATED
STANDARD PARTS
17 03123333-01 GROMMET STRIP X-HOLDER TX MC
18 03022705-01 ISO 7093-1 - 3 - 200 HV - A2 STANDARD PARTS
19 03122446-01 SUPPORT X-HOLDER TX MC
20 00315647-01 ABSTANDSBOLZEN TYPE B I/A-
M3X30-ST ZN
21 03042553-01 ISO 4762 - M 4 X 12-A2-70
23 03092340-04 LINEAR MOTOR FORCER X AXIS
00805140-01 CABLE TIE W=2.4MM L=92MM
TYB-23M
25 03042540-01 ISO 4762 - M 3 X 5-A2-70
26 00327308-01 FASTENING CLIP WN7855/B 4MM STANDARD PARTS
27 00318127-01 WIRE MANAGEMENT MOUNT, FLAT
2,5
STANDARD PARTS
28 03100633-01 ISO 7089 - 3 - 200 HV - A2 STANDARD PARTS
29 03138594-01 COVER PLATE
30 03045200-01 DIN EN ISO 7380-M4 X 6-A2-70 STANDARD PARTS
31 00342838-01 FIXING, PANDUIT TA TYPE ? STANDARD PARTS
32 03123219-01 UPGRADE KIT BUFFER STOP TX MC
