Tasks and Kits
3-20 ProMaster 2500 User Manual
Logging Programming
Statistics
Use the
Session Data Logging...
feature to automatically record statistics
for each Task run in a file with a
file_name.log
extension. From the
TaskLink main screen, press
Alt
and
S
to select the
Setup
pull-down
menu. Highlight
Session Data Logging...
and press
↵
. Figure 3-13 shows
the relationship between the Task Statistics screen (that appears by
default at the end of each Task) and the Session data logging file.
General Parameters
Most Tasks are run using the default values defined in this box. The
parameters that might be changed for operation with the 2500 are
described below. Other parameters displayed are intended to be used
with other products supported by TaskLink. Information on these
commands is available by pressing
F1
to invoke TaskLink’s online Help.
Only the commands used with the 2500 are described below.
Verify Passes
—Device manufacturers specify the high and low V
CC
voltage at which their devices will operate and output accurate data. The
2500 defaults to
two verify passes.
The device’s V
CC
pin is set to the
specification’s high V
CC
and the 2500 verifies that all bits in the device
compare with the RAM data. If this test passes, the 2500 sets V
CC
to the
low value and verifies each fuse in the device a second time. Selecting
One
directs the 2500 to test the device once using the nominal V
CC
level (+5V).
Custom Commands
— This is an optional CRC command field to control
the programming electronics with some special command that is not
supported by TaskLink. Refer to the Programming Electronics Computer
Figure 3-13
Log File Format Compared to Task
Statistics Screen
-
07-02-1993 17:12
?
LOGIC TASK
16v8.jed
0000B45C
LATTICE 16V8/A/BPLCC
CONT/IBC/PROG/TEST
73,0,1,1,0,0,0,0,0,0,0,0,1,1,0
?,?
Record Separator
Date & Time
Optional Session I.D. Name
Task Name
Data Source (Filename)
Programming Data Sumcheck
Device Type
Selected Process
Programming Results
First & Last Serial Numbers
filename.log
1959-1
(Insert Task Statistics Screen
and add leader line)
Tasks and Kits
ProMaster 2500 User Manual 3-21
Remote Control commands in Appendix E.
For example, you might use these commands if you want to program a
device but disable the verify option. The Edit Task dialog box does not
allow you to select this combination. From that box, Verify is
automatically enabled when Program is selected. Use the
023]
command
to disable the verify operation.
Security Option
— Some devices have a security fuse that, when
programmed, prevents any programming equipment from reading its
data. Set this value to 3 to program the security fuse in most PLD devices.
The main array of device fuses are verified before the security fuse is
programmed. If the main array fuses pass, the security fuse is
programmed and the 2500 will no longer be able to read the original
sumcheck from the device. The only way to confirm correct data in a
device after its security fuse has been programmed is to run structured test
vectors.
Enable Special Data
— Used by some devices to enable special options
they offer. The option depends on the device being programmed. For
example, some microcontroller devices have extra security fuses that can
be enabled only when this parameter is set. Refer to the 2500 Device List
footnotes to see if any special options are available for the device in your
Task.
Continuity Checking
— This option allows you to enable or disable
continuity checking on some devices. Under most circumstances you
would not disable this check as it provides important information about
how the device is seated in the programming module. If the test is
disabled and a device is not making good contact in the programming
module, the device will fail with either a programming or verify error. For
some devices, the continuity test is an integral part of the programming
algorithm and cannot be disabled even when it is not selected on the
screen. Continuity checking is enabled when TaskLink is shipped.

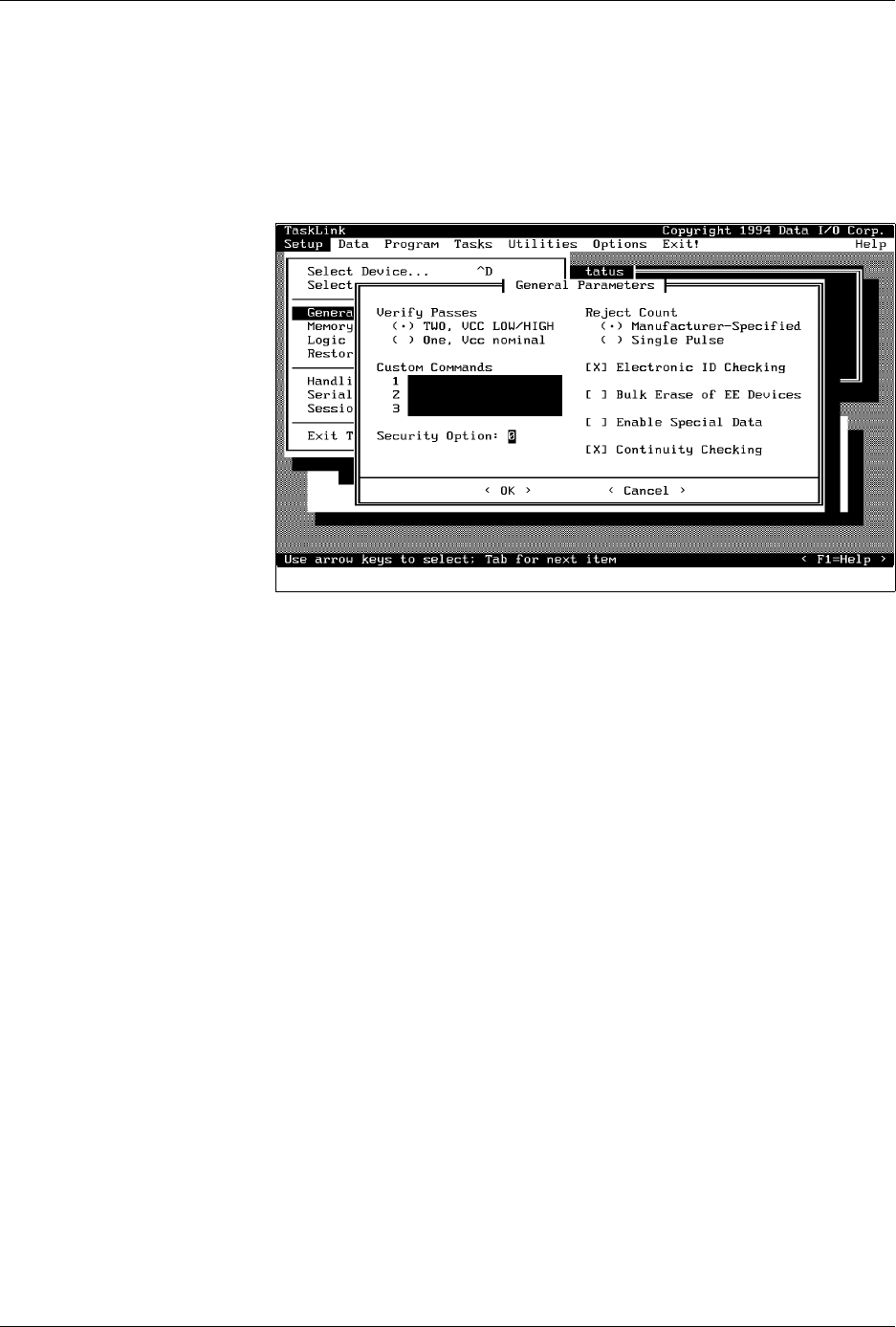

Figure 3-14
General Parameters Dialog Box
Tasks and Kits
3-22 ProMaster 2500 User Manual
Serializing Devices
You may want to program a serial number into the devices and/or print
the number on the label. TaskLink’s
Serialization...
option offers an
opportunity to do this in software. A sample serialization program called
serializ.exe
is provided with TaskLink. For detailed information on the
serialization program, refer to the External Serialization Program section
on page 3-25 and to the online help topic “Writing a Serialization
Program” under TaskLink’s General Help Index. To implement
serialization features not provided by
serializ.exe
, you will need to write
a short external serialization program (ESP) to generate your serial
number and save it in an ASCII file for TaskLink to use.
To print a serial number on a label, enter a percent sign (%) in the label
text field (ProMaster 2500 dialog box) for each character to be printed on
the label (refer to the command line length parameter “-l”).
Note: You must have U15 version 1.06 or greater to print a serial number.
Figure 3-16 shows the process steps in creating a file to be used for
serializing devices.
The
Program
line in TaskLink’s
Serialization Parameters
screen (see
Figure 3-15) allows you to enter the executable name for your external
program (ESP). You can also include the path and command line
arguments that define the characteristics of the serial number to pass to
the ESP. The ESP is called from the command line using a command
similar to the following:
drive:\path\file_name
where
drive
is the drive where the ESP resides,
path
is a valid DOS path
to the subdirectory where the ESP is written, and
file_name
is the ESP
executable file name and extension.
