MODEL HM-G100 1012-006 19 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE MT -4 301 6301347950 PLA TE 1 806MT -1 10-301 21 1DA360 302 6301370767 PLA TE 2 806MT -1 10-302 21 1DA592 303 6301370774 PLA TE 1 806MT …
MODEL HM-G100
0801-003
18
ヘッド部

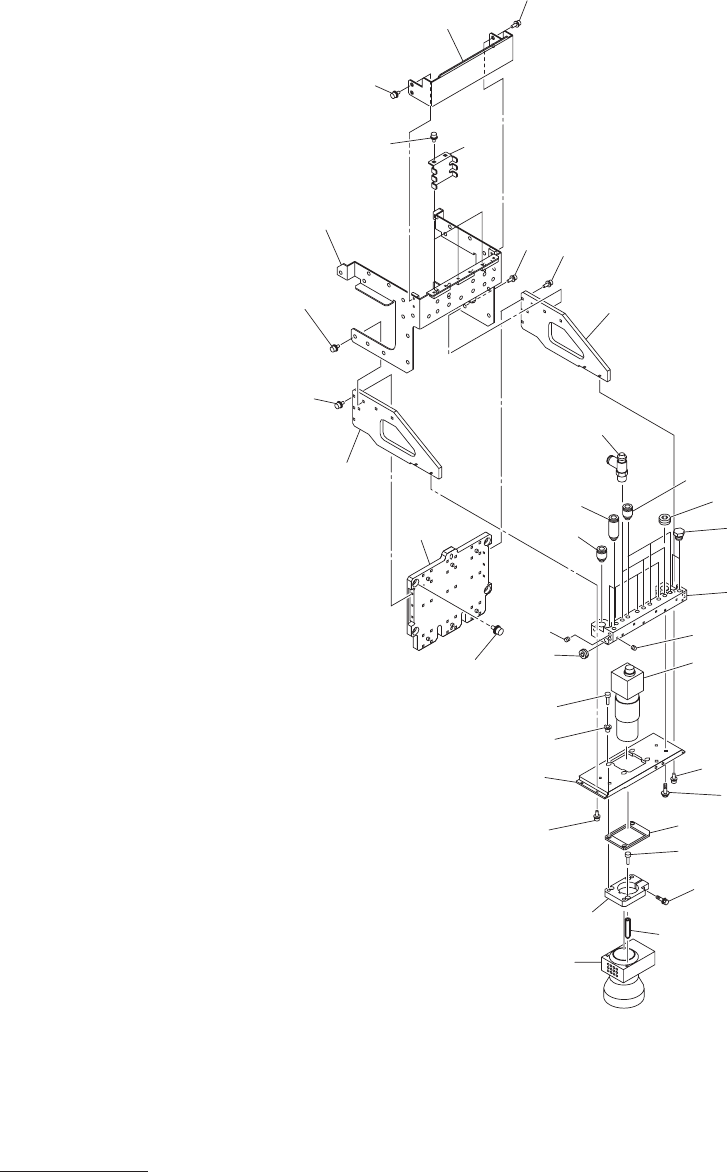

HEAD SECTION
Fig. MT-4
基板認識カメラ
PEC Camera
366
363
.
357
.
367
362
.
356
.
367
362
.
359
.
366
361
.
352
.
366
361
.
353
.
367
362
.
354
.
367
362
.
358
.
367
362
.
358
.
367
362
.
354
.
366
361
.
353
.
306
303
339
340
301
302
302
304
313
331
378
332
324
321
380
379
322
323
326
351
366
361
.
352
.
334
359
311
367
362
.
358
.
325
338
MODEL HM-G100
1012-006
19
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
MT-4
301 6301347950 PLATE 1 806MT-110-301 211DA360
302 6301370767 PLATE 2 806MT
-110-302 211DA592
303 6301370774 PLATE 1 806MT
-110-303 211DA593
304 6301370781 COVER 1 806MT
-110-304 211A9810
306 6301362830 BLOCK 1 806MT
-110-306 211G4025
311 6301348001 BRACKET 3 806MT
-110-311 211F9476
313 6301370798 COVER 1 806MT
-110-313 211A9811
321 6301035611 PIPE FITTINGS 1 806MT
-110-321 225F0433
322 6301106083 PIPE FITTINGS 5 806MT
-110-322 225F0467
323 6300983579 PIPE FITTINGS 3 806MT
-110-323 225F0409
324 6301348612 AIR LINE EQPT 3 806MT
-110-324 225B0531
325 6300041002 PIPE FITTINGS 2 806MT
-110-325 225F0141
326 6301362861 PIPE FITTINGS 1 806MT
-110-326 225F0633
331 6301319919 ASSY,SCOPE UNIT 1 -B36
806MT-110-501 0Z100023
332 6301314532 LIGHTING UNIT 1 -E39
806MT-110-502 4Z110149
334 6300699340 ACCESSORY,P.C.B (BUSH) 3 806MT
-110-504 23L10044
338 6301314501 BOLT 3 806MT
-110-508 221E0319
339 6301215556 PLATE 1 806MT
-110-509 211D9046
340 6301345741 PLATE 1 806MT
-110-510 211DA325
351 6300007510 BOLT,HEX-SCT 3 M3X8
221A0006
352 6300007527 BOLT,HEX-SCT 4 M3X10
221A0007
353 6300007534 BOLT,HEX-SCT 6 M3X12
221A0008
354 6300007619 BOLT,HEX-SCT 6 M4X8
221A0016
356 6300007657 BOLT,HEX-SCT 1 M4X16
221A0020
357 6300007763 BOLT,HEX-SCT 4 M5X16
221A0031
358 6300007626 BOLT,HEX-SCT 10 M4X10
221A0017
359 6300007664 BOLT,HEX-SCT 7 M4X20
221A0021
361 4111412806 WASHER SPR 3 13 SW3
221H0281
362 4111412905 WASHER SPR 4 24 SW4
221H0284
363 4111416705 WASHER SPR 5 4 SW5
221H0287
366 4111413902 WASHER V 3X7X0.5 13 FW3
221H0310
367 4111414008 WASHER V 4X9X0.8 24 FW4
221H0315
368 4111414107 WASHER V 5X10X1 4 FW5
221H0318
378 6300081053 SET SCREW 8 M3X3 SET
221C0026
379 6300008944 SET SCREW 4 M5X6 SET
221C0007
380 6300299494 SET SCREW 4 M8X8 SET
221C0043
MODEL HM-G100
0411-001
20
標準付属品

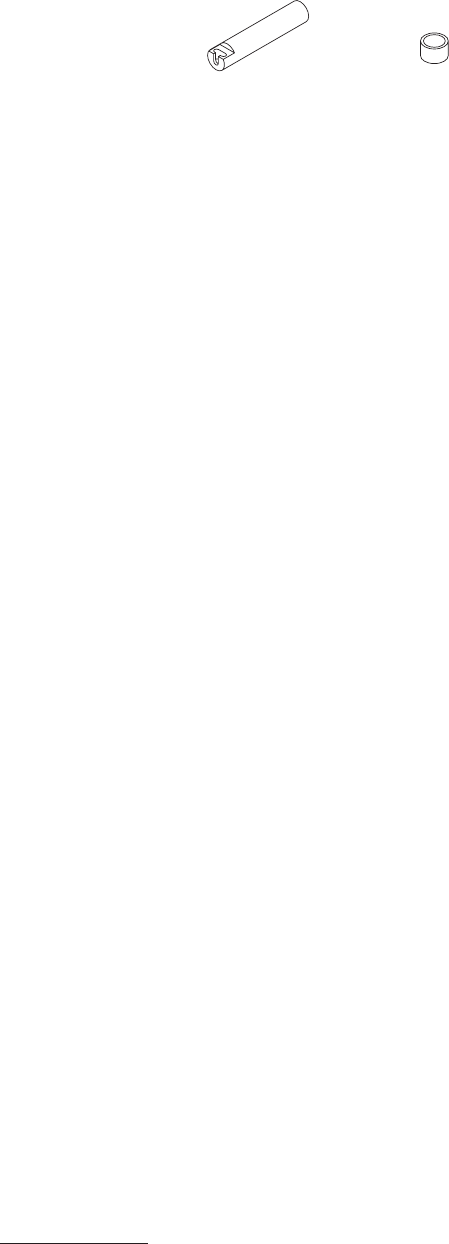

STANDARD ACCESSORIES
Fig. SA-1
治具及びスペアパーツ
Jig and Spare Parts
1 2
