G -S050-06 0909-002 92 170 184 193 See Fig.BS-5 Key No.486 DELETE EXCHANGE For Left-Front 多機能ヘッド取付本体対応 Main Machine Modification(Left-Front) （左前） For Attaching Multi-Functional Head G -S050-06(GXH-1J,1JS) G -S050-06(GXH-1…
G -S050-06
1012-004
91
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
D-1
4 6301281650 PLATE 2→1 829D--010-104 211D9700
5 6301360652 PLATE 2→1 829D--010-105
211DA514
14 6301272078 BLOCK 2→1 829D--010-1
14 211G3532
22 6301246598 LIGHTING UNIT 2→1 829D--010-202
4Z110137
31 6301265377 PLATE(STANDARD MARK) 1
829D-A010020-A001
211D9577
32 6301314426 PLATE 1
829D-A010020-A002
211D9985
33 6301314310 BLOCK 1
829D-A010020-A003
211G3745
35 6301270265 LIGHTING UNIT 1
829D-A010020-A005
4Z110147
G -S050-06
0909-002
92
170
184
193
See Fig.BS-5
Key No.486
DELETE
EXCHANGE
For Left-Front
多機能ヘッド取付本体対応
Main Machine Modification(Left-Front)
（左前）
For
Attaching Multi-Functional Head
G -S050-06(GXH-1J,1JS) G -S050-06(GXH-1J,1JS)

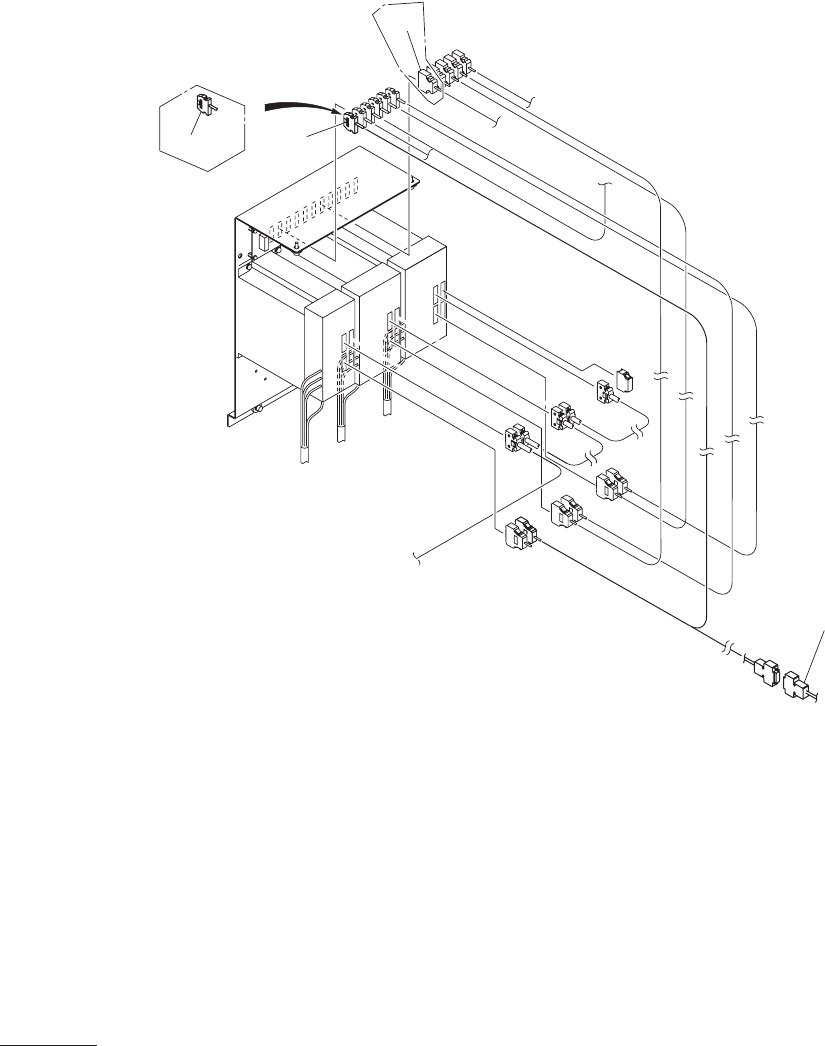

Fig. BU-2
架台下
XY
サーボ部
B
- ケーブル
Underframe XY Servo section B-Cable
G -S050-06
1012-003
93
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BU-2
170 6301338897 CORD 1→0 829BU-010-170 4W203019
184 6301338279 CORD 1→0 829BU-010-254
4W202993
193 6301366944 CORD(A-X2103-X19401 1
829C-A010020-A273
4W203150
