Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3 10/2008 Edition 31 2.3 Exchanging the sevenfold tube incl. pressure plates : Remove the component trolley at the location from which th e gantry shou…

100%1 / 54
Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3
10/2008 Edition
30
2.2 Safety instructions
WARNING
The safety instructions from the “Operational safety” chapter of the user manual and servicing in-
structions take precedence over these instructions. 2
The SIPLACE placement machines are supplied with main power voltage.
Consequently parts of these systems carry dangerous voltages! This voltage is present at certain
modules inside the machine base, even when the machine is switched off at the main power
switch.
Incorrect handling of the placement machine or touching live parts of the machine can result in
death or severe injury, and considerable damage to equipment.
BEFORE starting any work, shut down the operating system correctly, then switch the machine
OFF at the main power switch and disconnect from the main power supply. In addition, the com-
pressed air supply must be switched off at the compressed air unit's main valve in the machine
base and vented by actuating the needle valve on the compressed air unit.
There is DANGER for heart pacemaker wearers in the vicinity of the linear motors, as described
in detail in the "Special safety instructions for working in the vicinity of strong magnetic fields"
section of the user manual and service manual.
Always follow the accident prevention regulations, DIN or other standards and special safety
rules applicable in your country.
Pay attention to the information concerning residual voltages in the Operational Safety chapter.
Follow the ESD regulations as described in the operational safety section of the operating
instructions.
During the retrofit, always secure the machine to prevent access by other people and to prevent
it being switched on again. The procedure is described in the “Locking the machine…” section of
the user manual.
Working with the SITEST program further increases the risk of accident.
The SITEST program must only be used by authorized and trained personnel.
2
2
2.2.1 Definitions
2
Please note 2
2
2
2
Caution 2
Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3
10/2008 Edition
31
2.3 Exchanging the sevenfold tube incl. pressure
plates
: Remove the component trolley at the location from which the gantry should be retooled.
2

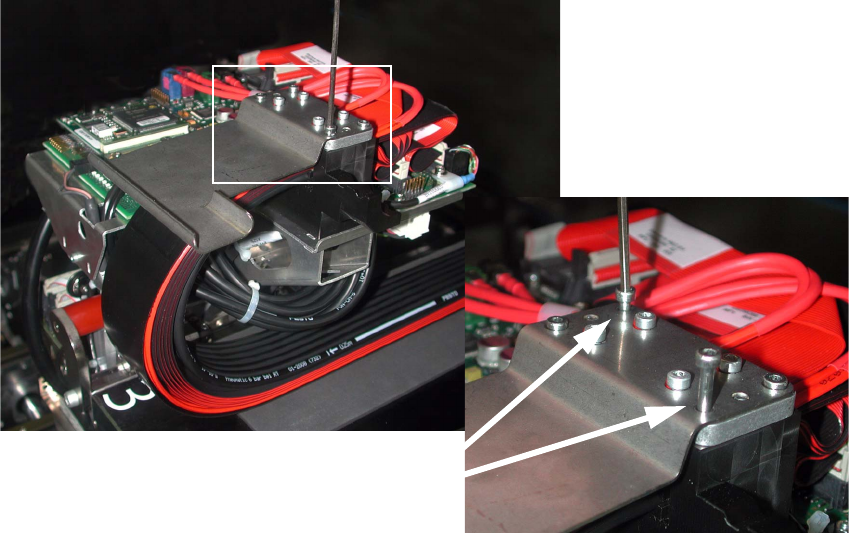

: Loosen both of the screws shown in the picture for the flexible metal and remove them.
2
2
2
2
2
2
2
2
2
2
2
Two screws
Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3
10/2008 Edition
32

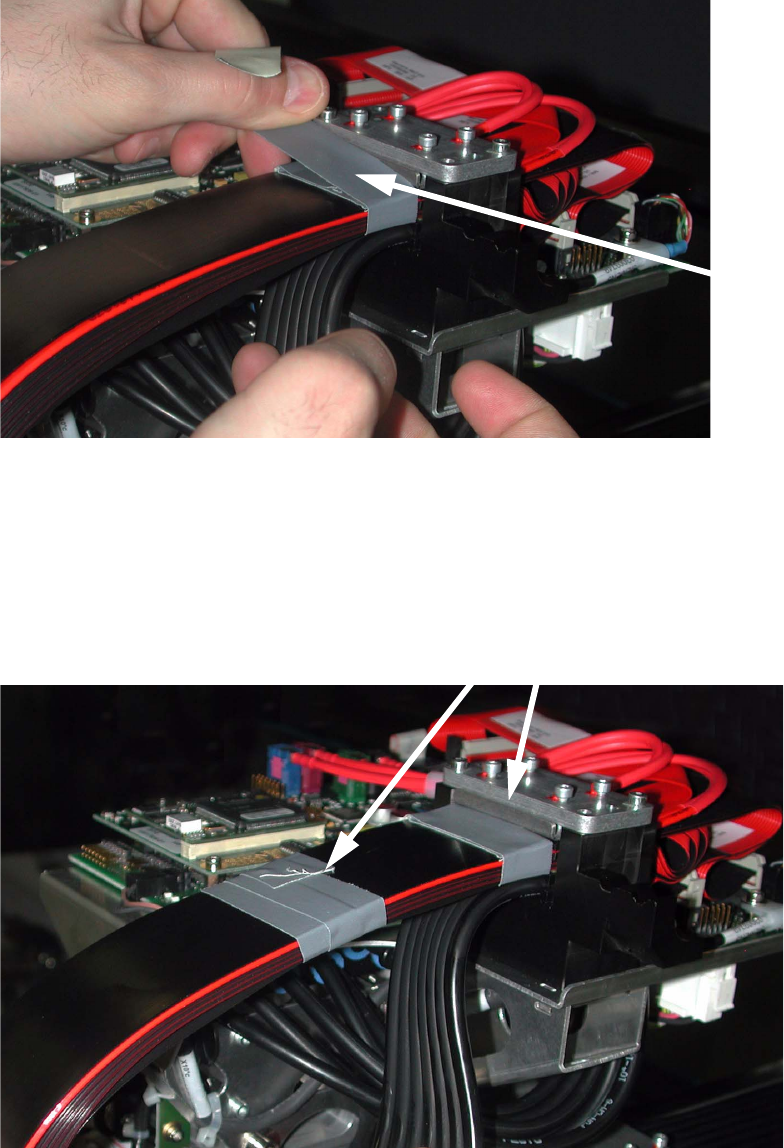

: Glue a piece of adhesive tape directly onto the clamp around the ribbon cables and the protec-
tive band but not around the compressed air hoses. The adhesive tape serves to fix the ribbon
cables together and to mark the position in the clamp.
2
2
: Fix the ribbon cables and the protective band with a second adhesive tape in order to prevent
slipping between them and to ensure, during later assembly, that the distances between the
cables are maintained between each other.
2
Adhesive
tape
Adhesive tapes
