Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3 10/2008 Edition 34 : Remove the met al frame. 2 2 : Unplug all ribb on cable connectors. 2 Remove the metal fr ame
Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3
10/2008 Edition
33

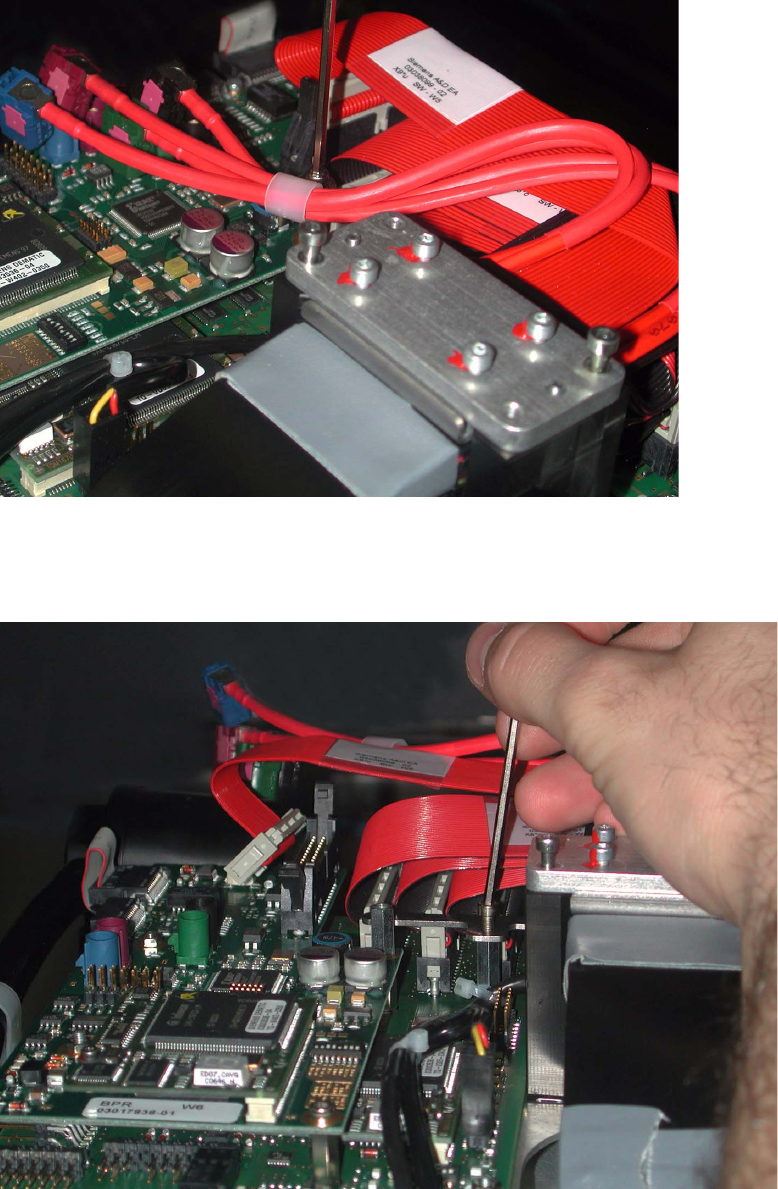

: Loosen the screws for cable attachment and unplug the four vision cables.
2
2
: Unscrew the screws for the metal frame with which the ribbon cable connectors are secured.
2
Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3
10/2008 Edition
34
: Remove the metal frame.
2
2
: Unplug all ribbon cable connectors.
2
Remove the
metal frame
Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3
10/2008 Edition
35
: Pull off all compressed air hoses on the placement head.
2
2
: Loosen the screws shown in the picture.
2
2
2
Detach
compressed
air hoses
Loosen
screws
