Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3 10/2008 Edition 36 : Remove the rib bon cable and co mpressed air hose s from the placem ent head. 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3
10/2008 Edition
35
: Pull off all compressed air hoses on the placement head.
2
2
: Loosen the screws shown in the picture.
2
2
2
Detach
compressed
air hoses
Loosen
screws
Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3
10/2008 Edition
36
: Remove the ribbon cable and compressed air hoses from the placement head.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3
10/2008 Edition
37

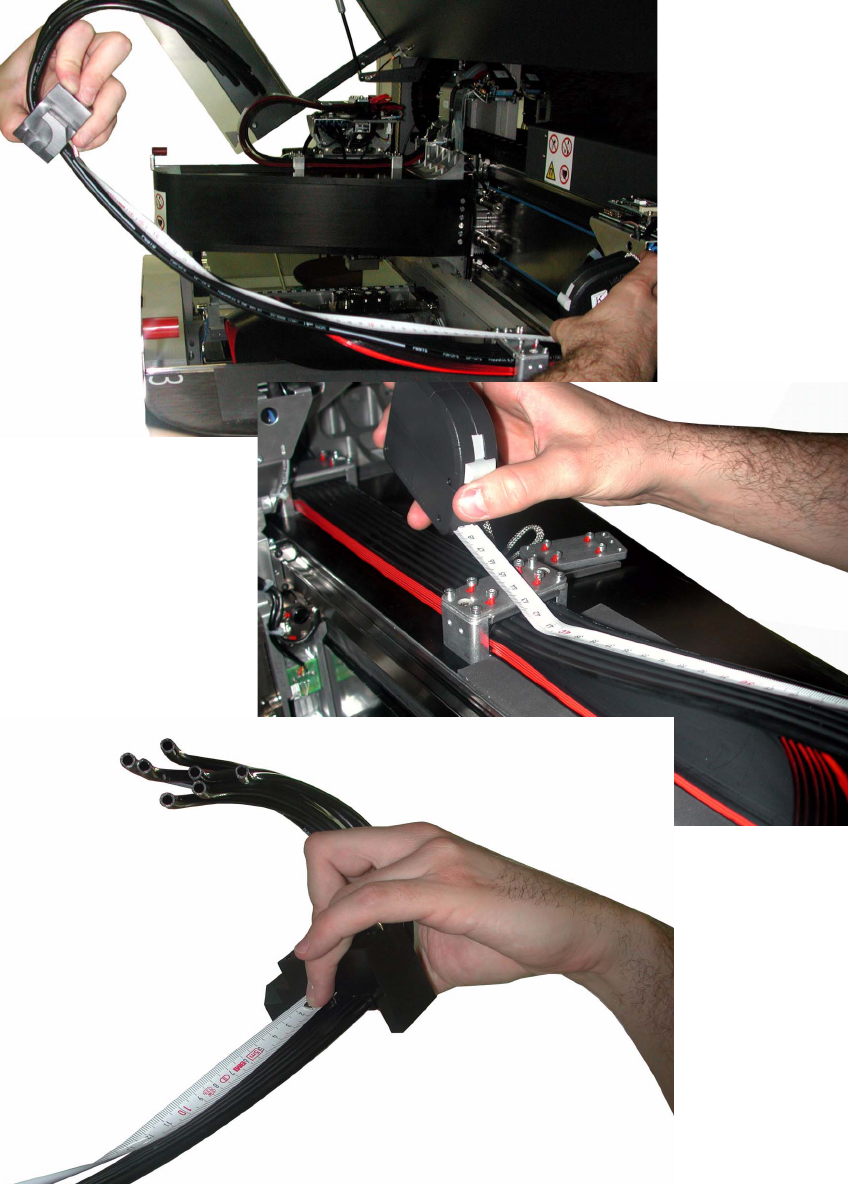

: Measure the length of the sevenfold hose between the clamps and note the dimension.
