Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3 10/2008 Edition 39 : Lay the second Plexiglas plate on the hose band. : Cut the hose band along the Plexiglas template using a knife. 2 2 2 2 2 2 2 2…
Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3
10/2008 Edition
38
: Loosen the lacquered screws by one turn.
They will be tightened later again with torque.
2
2
: Carefully push the bigger Plexiglas plate between the clampings on the gantry between ribbon
cable and the hose band.
2
2
2
Loosen
lacquered
screws by
one turn
Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3
10/2008 Edition
39

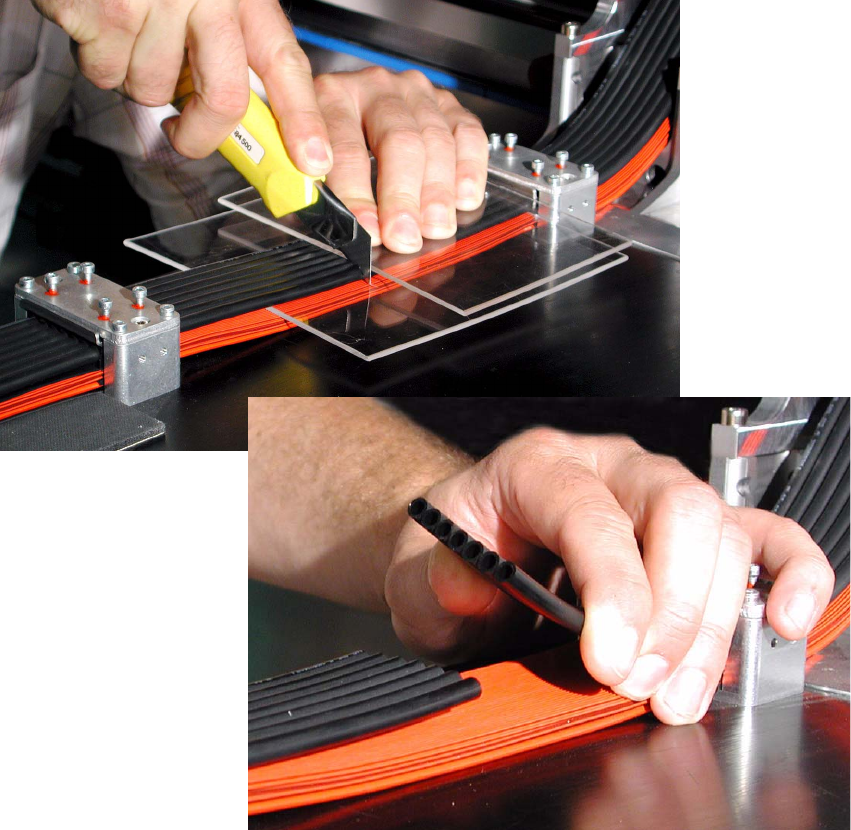

: Lay the second Plexiglas plate on the hose band.
: Cut the hose band along the Plexiglas template using a knife.
2
2
2
2
2
2
2
2
2
Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3
10/2008 Edition
40

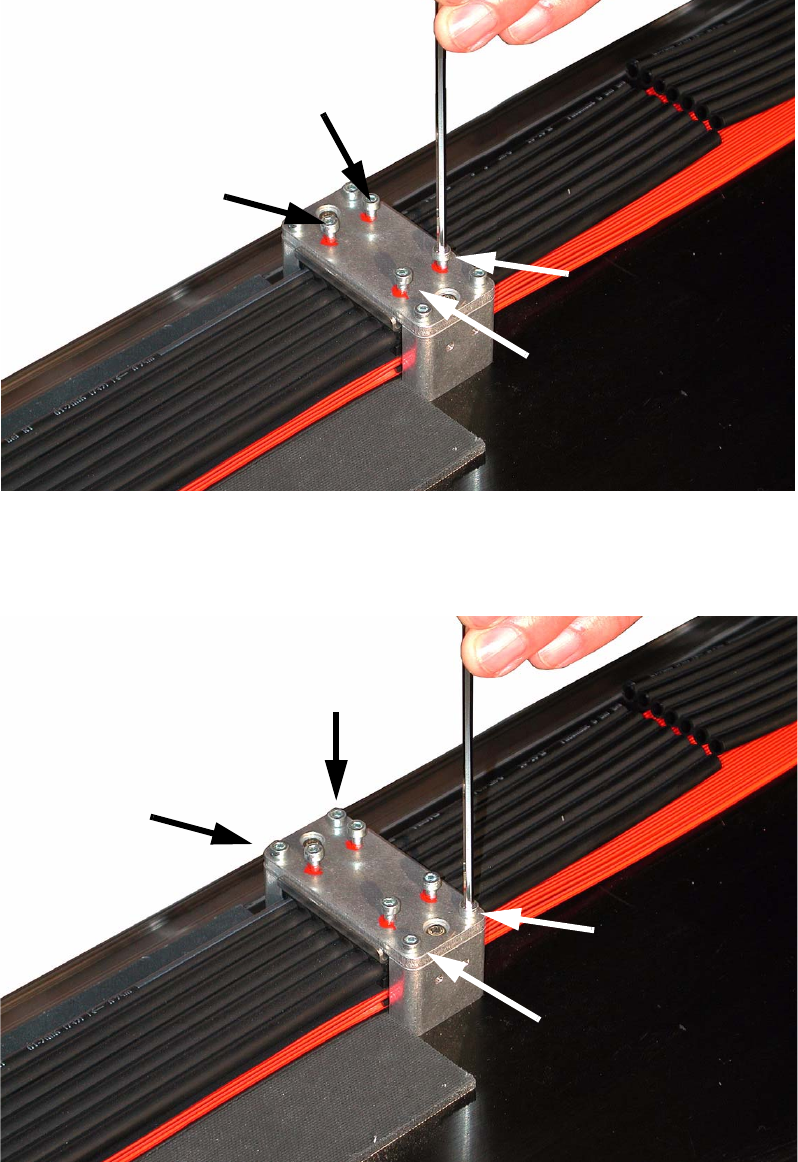

: Loosen the four inner lacquered screws for the clamp by one turn.
2
2
: Loosen the four outer screws for the clamp on the gantry.
2
2
