Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3 10/2008 Edition 42 : Loosen the two screws from the und erside of the upper clamp and disconnect the wiring har- ness and compressed air hoses. 2 2 2…
Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3
10/2008 Edition
41
: Lift out the clamp and the hose band.
2
: Remove the pressure plate above and below the hose band.
The upper one is glued to a metal clip. Disconnect the pressure plate from the metal clip using
the knife.
2
Both pressure plates are no longer needed. They are replaced by the new ones from the retrofit
kit. 2
Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3
10/2008 Edition
42

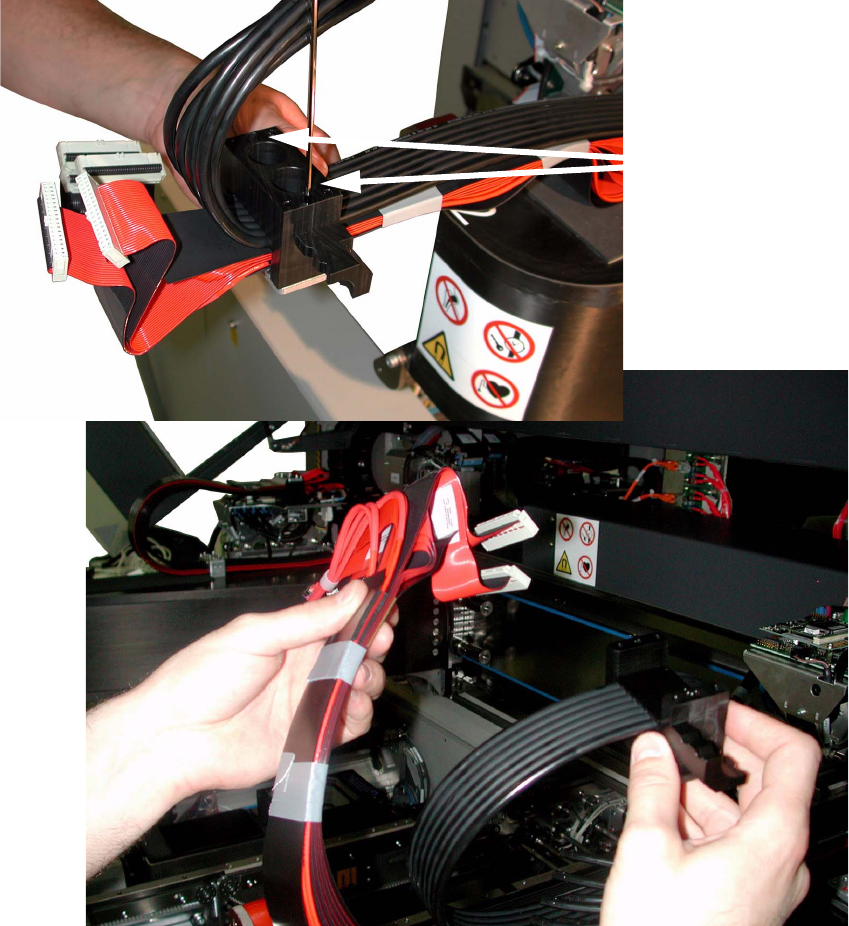

: Loosen the two screws from the underside of the upper clamp and disconnect the wiring har-
ness and compressed air hoses.
2
2
2
2
2
2
2
Loosen the two
screws
Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3
10/2008 Edition
43

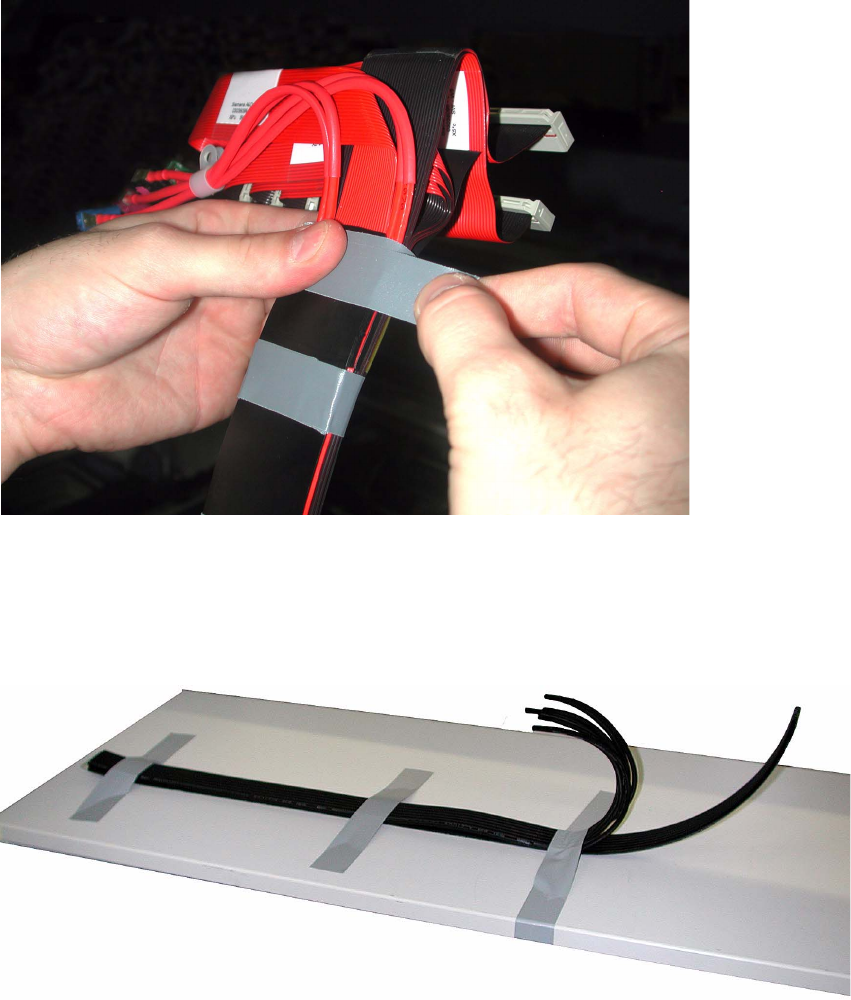

: Secure the ribbon cable and protective films again with adhesive tape against shifting.
This third adhesive tape is removed again before assembly.
2
2
: Remove the old sevenfold hose.
: Lay the removed sevenfold hose on the new one and glue both hoses together.
2
2
2
2
2
