Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3
10/2008 Edition
50

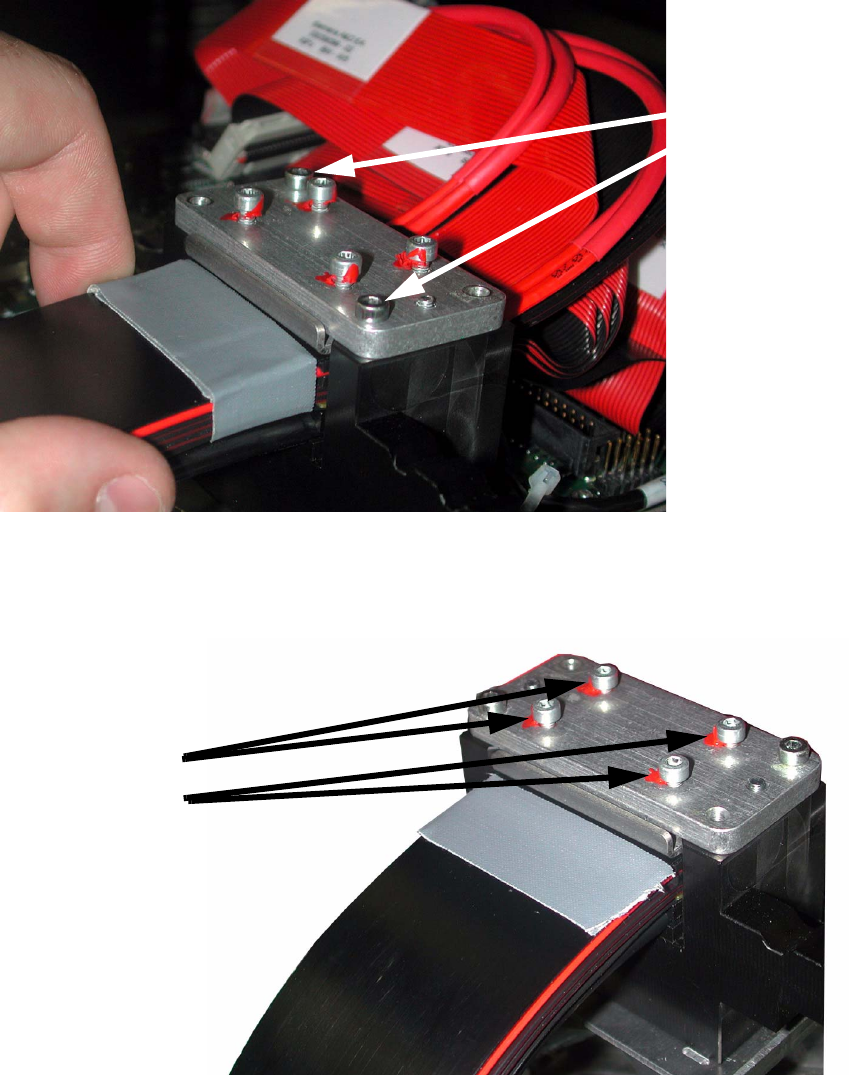

: Apply Loctite 241 to the thread of the screws shown below to secure the screws.
: Attach the clamp by tightening the two screws shown in the picture.
Check again for correct alignment of the hoses and the ribbon cables.
2
2
: Tighten the four inner screws crosswise using a torque of 0.7 +/- 0.2 Nm.
2
2
Tighten the
lacquered
screws
Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3
10/2008 Edition
51
: Then lacquer the screws.
2

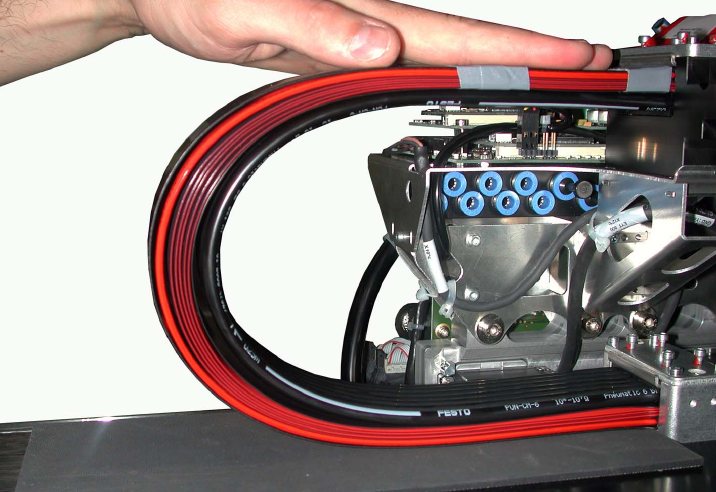

: Check the cable routing using another gantry on the placement machine and adjust as re-
quired.
2
2
: Reattach all the compressed air hoses.
: Plug in all ribbon cable connectors and the vision cable.
: Screw on their attachments.
: Fix on the separated compressed air hoses with cable ties.
2
: Remove all adhesive tape.
2
2
2
2
2
2
2
Retrofit instructions Sevenfold tube SIPLACE HF-series / X-series / D3
10/2008 Edition
52

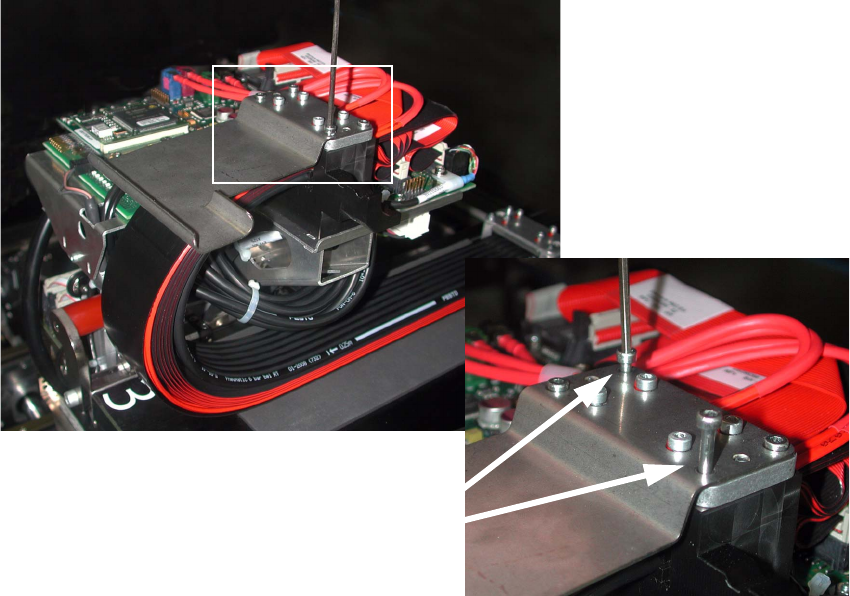

: Apply Loctite 241 to the thread of the screws shown below to secure the screws.
: Mount the flexible metal using the two screws shown in the picture.
2
2
: Mark the clamp on the upper side with a green point.
2
: Put the placement machine into operation again and check for correct routing during perma-
nent running of the gantry.
2
2
Two screws
