Device Name Chip Mounter Block Name Page No. Unit Name Revision Model Item GXH-1 2. Replacement of Backup Base Servoamplifier Chapter 6 Backup Base Section 2.1 Location of Servomotor Amplifier (Driver) 2.2 Detachment of …
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model ItemGXH-1
Chapter 6 Backup Base Section
1. Replacement of Backup Base Motor
1.6 Flatness Confirmation of Backup Base
(1) Fix the backup base with the bolts (M6L16), SW, and FW so that the positioning pin
can be located outside.
(2) Apply a dial gauge to in Bases a and b and confirm that the total flatness of a and
b is "0.1 mm or less".
Base a
Base b
Positioning Pin
M6L16
M6L16
M6L16
M6L16

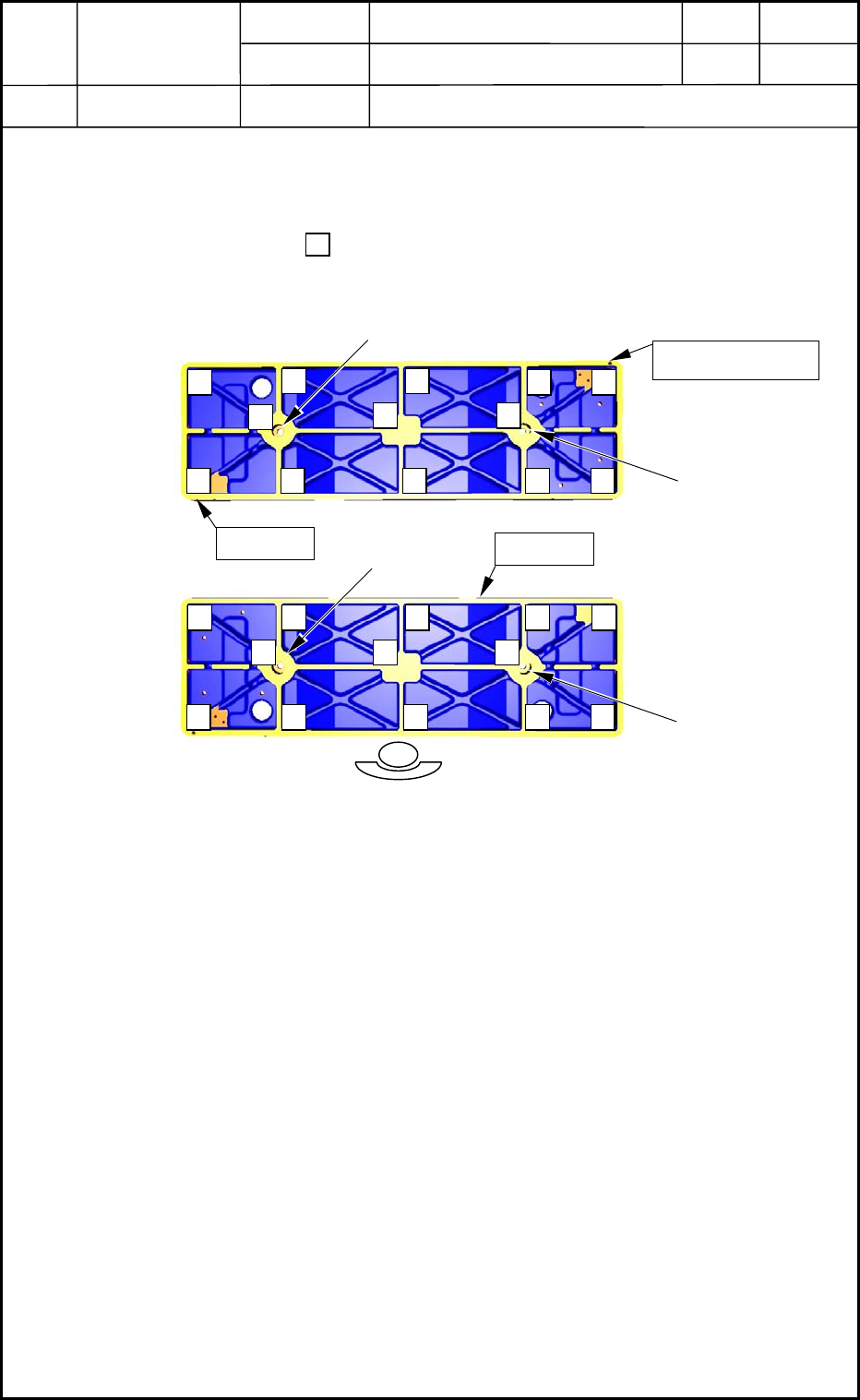

Fig. F5 Flatness of Backup Base
0406-001
6-3
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model ItemGXH-1
2. Replacement of Backup Base Servoamplifier
Chapter 6 Backup Base Section
2.1 Location of Servomotor Amplifier (Driver)
2.2 Detachment of Servoamplifier
(1) Disconnect the connectors (CN1A, CN1B, CN2, and CN3) located on the front side
of the servoamplifier.
(2) Detach the power line located under the servoamplifier.
Supply 200 V AC : L1, L2, and L3
Control 200 V AC : L11 and L21
Motor : U, V, W, and PE
(3) Detach the servoamplifier from the panel. (fastened by screws)

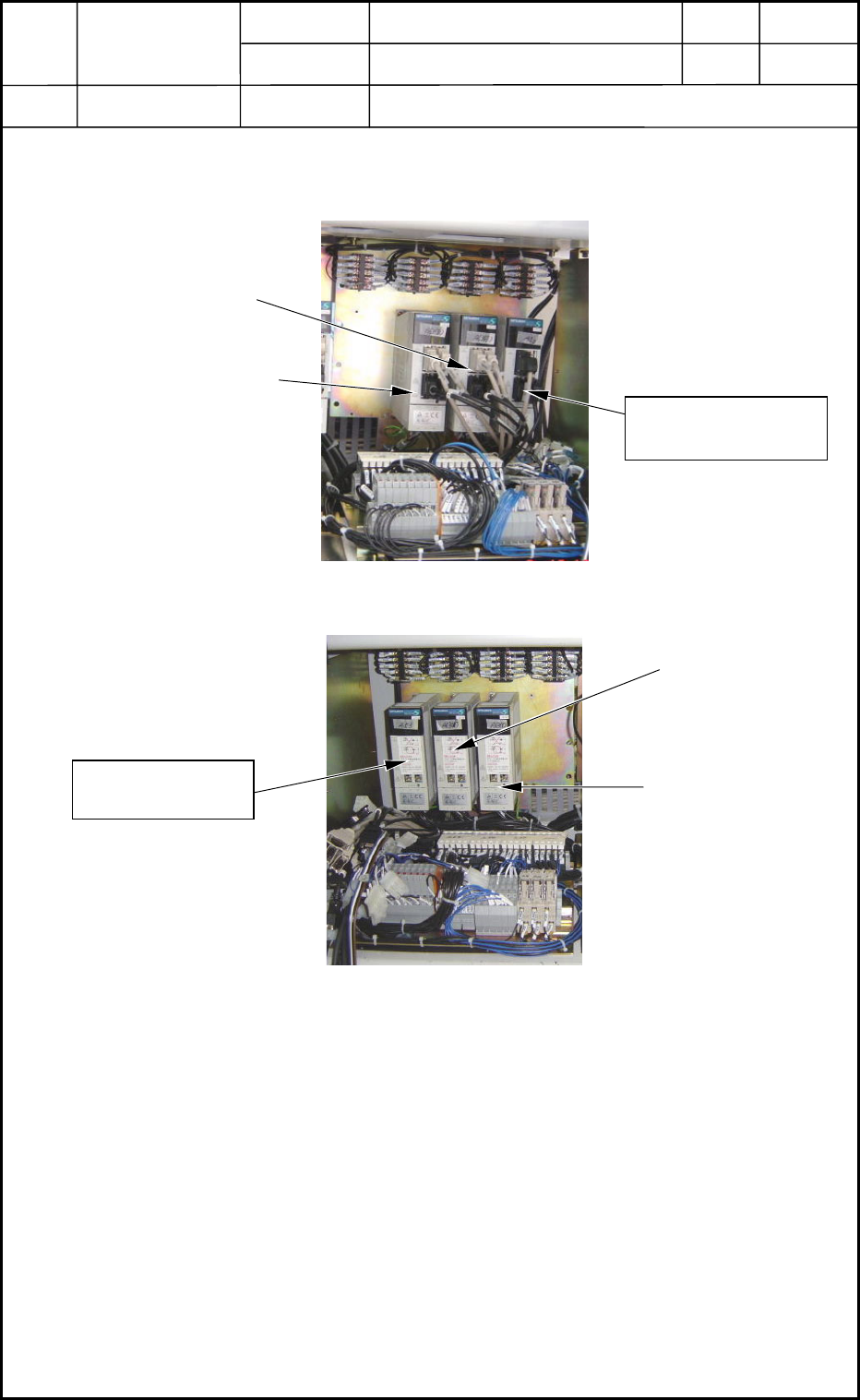

Cutter Axis A63 in Section A
Cutter Axis A63 in Section B
NA Section
Backup Axis A53
Fig. F7 Side 1 below Main Body (BA Block)
Cutter Axis A63 in
Section D
Cutter Axis A63 in
Section C
NC Section
Backup Axis A53
Fig. F8 Side 3 below Main Body (BC Block)
0406-001
6-4
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model ItemGXH-1
2. Replacement of Backup Base Servoamplifier
Chapter 6 Backup Base Section
2.3 Setting of Servoamplifier
2.4 Attachment of Servoamplifier
Refer to "2.2" and "2.3" on previous pages for details.
Note the connection of the wires.

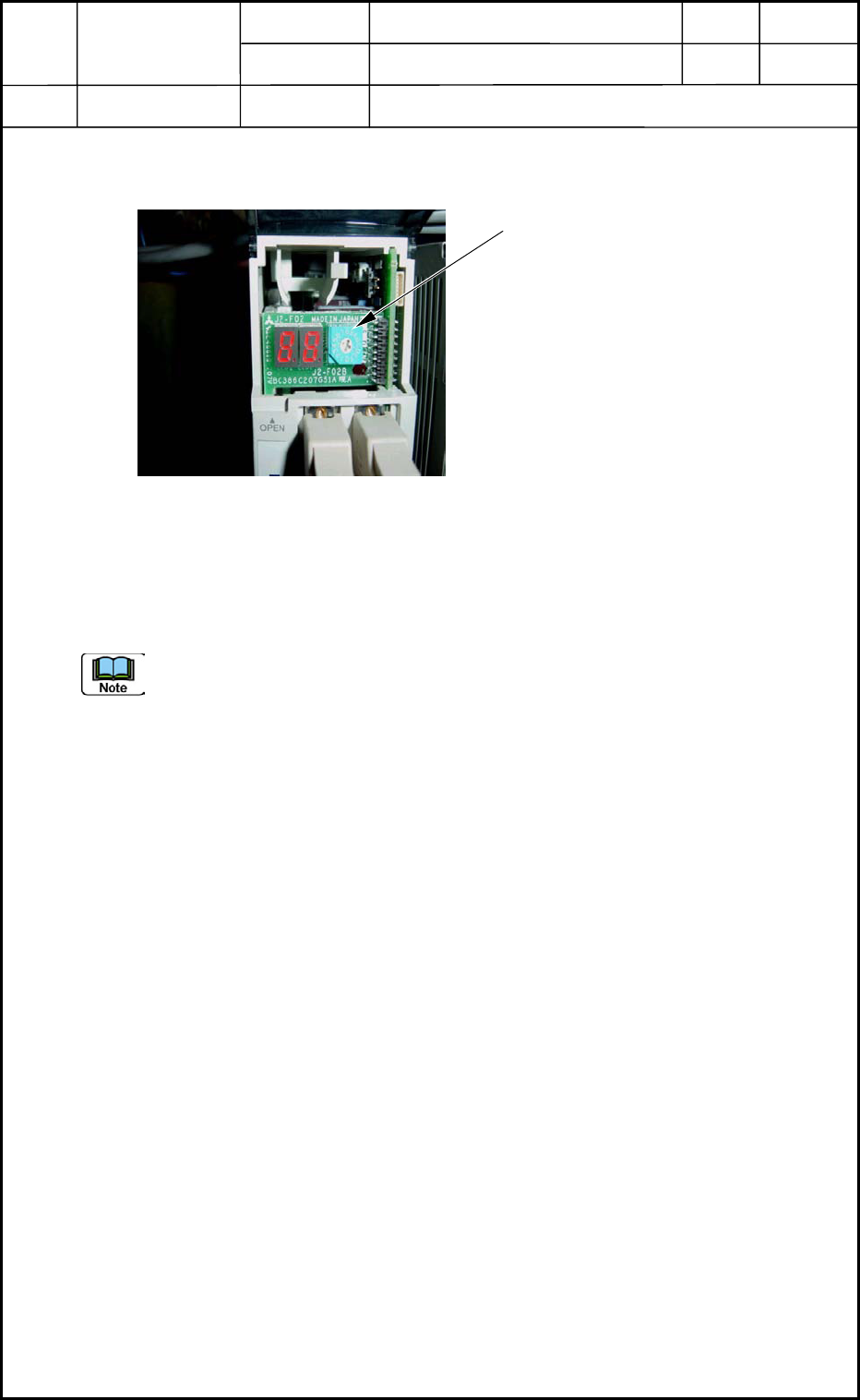

Fig. F9 Front Cover Opened
Axis Selection Switch
Set the address.
NA (A53) Transfer A Backup
NA (A53) Transfer C Backup
ADDRESS: 5 for Both
0406-001
6-5
