INSIGNUM Ser ies – P o wer and P recision in Marking INSIGNUM Label Automatic Label applicator INSIGNUM 30 0 0 Label Options _ Ofine programming _ Rotating applicator head ± 360° _ Print control possible af ter applicat…
INSIGNUM Series – Power and Precision in Marking
INSIGNUM LabelAutomatic Label applicator

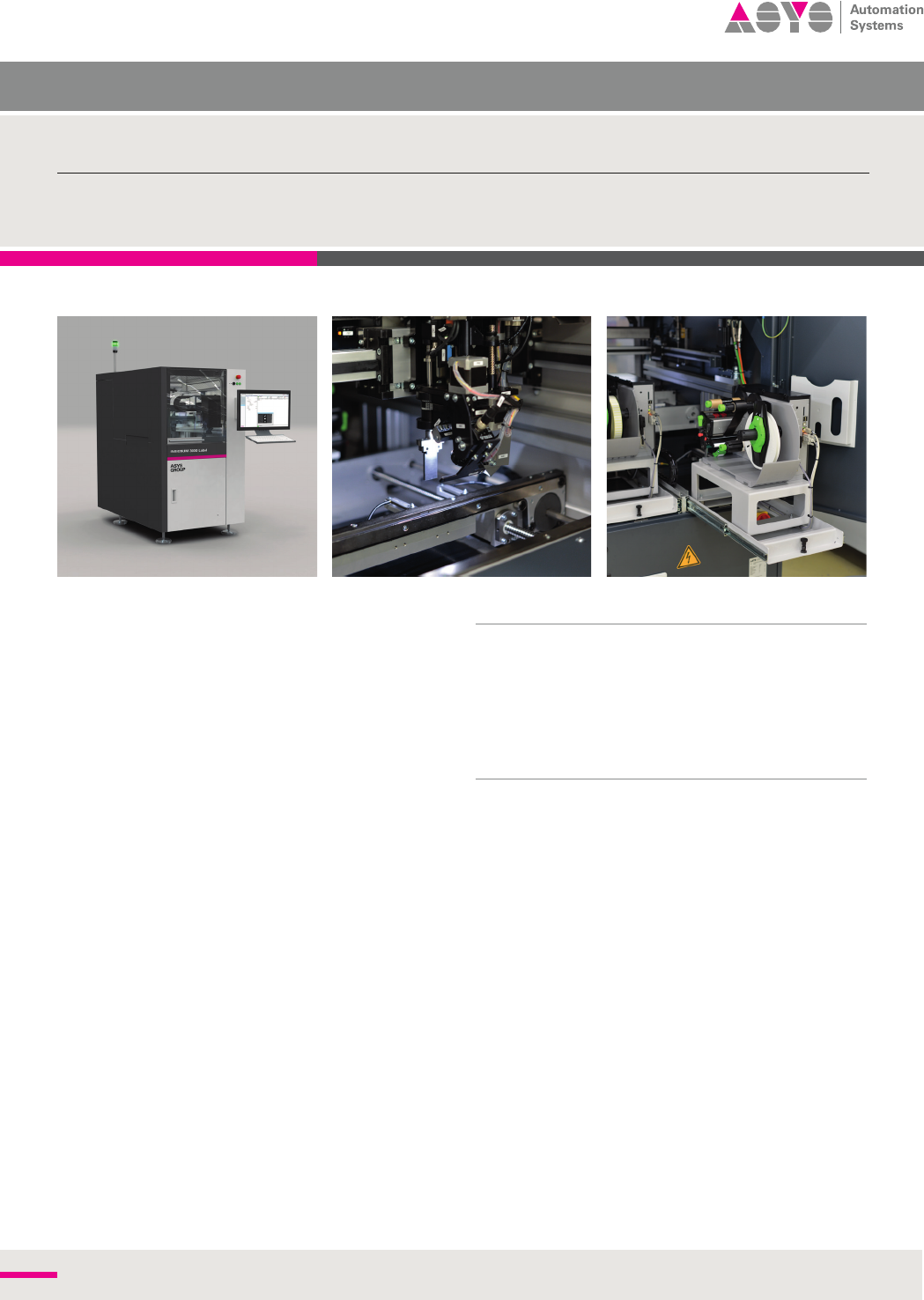

INSIGNUM 3000 Label
Options
_ Ofine programming
_ Rotating applicator head ± 360°
_ Print control possible after application
_ Database integration possible
_ Traceability
_ Optical correction unit: CCD camera
_ Second thermal transfer printer
Description
The Label applicator, INSIGNUM 3000 Label, consists of a ser-
vo driven X/Y axle, a rotating application head and a conveyor
with positioning mechanism to pick up and place the PCBs.
The PCB is transferred with a conveyor into the application
area. The X/Y axle moves the application head to the printer,
a label is taken and then applied to the PCB. After the applica-
tion process the PCB is released and then transferred to the
following unit.
Features
_ PC controlled unit
_ Windows operator guidance
_ High performance servo drive
_ Printer slides out for easy maintenance
_ For barcodes and data matrix labels
_ Thermal transfer printer
INSIGNUM_3000_Label_210315_DS_CC_E
INSIGNUM
For more information visit
www.asys-group.com
Subject to change without notice.
Some general descriptions and performance characteristics may
not be applicable to all products. Technical specications are
subject to change without notice. Only features and technical
data provided in purchasing contract are legally binding.
Printed in Germany
ASYS Automatisierungssysteme GmbH
Benzstrasse 10,
89160 Dornstadt, Germany
Tel (+49) 7348 9855 0
Fax (+49) 7348 9855 91
info@asys-group.com
INSIGNUM 3000 Label
Machine conguration
Transport height
Max. transport width
Interface
Transfer direction
Operating side
Fixed rail
850 mm ± 50 mm
460 mm
Siemens, SMEMA
From left to right / from right to left
Front of the machine
Front of the machine
Panel dimensions
Panel length
Panel width
Panel thickness
Panel weight
Component height
70 to 508 mm
50 to 460 mm
0.8 to 4.0 mm
to 3 kg
± 40 mm
Installation requirements
Power supply
Power supply system
Power consumption
Air supply
Air consumption
230 V / 115 V, 50 / 60 Hz, ± 10 %
L1 + N + PE
0.69 kW
6 bar
<10 Nl/min
Machine description
Length × width × height
Weight
Noise level
830 × 1470 × 1480 mm
Approx. 553 kg
< 75 dB
Upgrades
Machine networking via IC Net

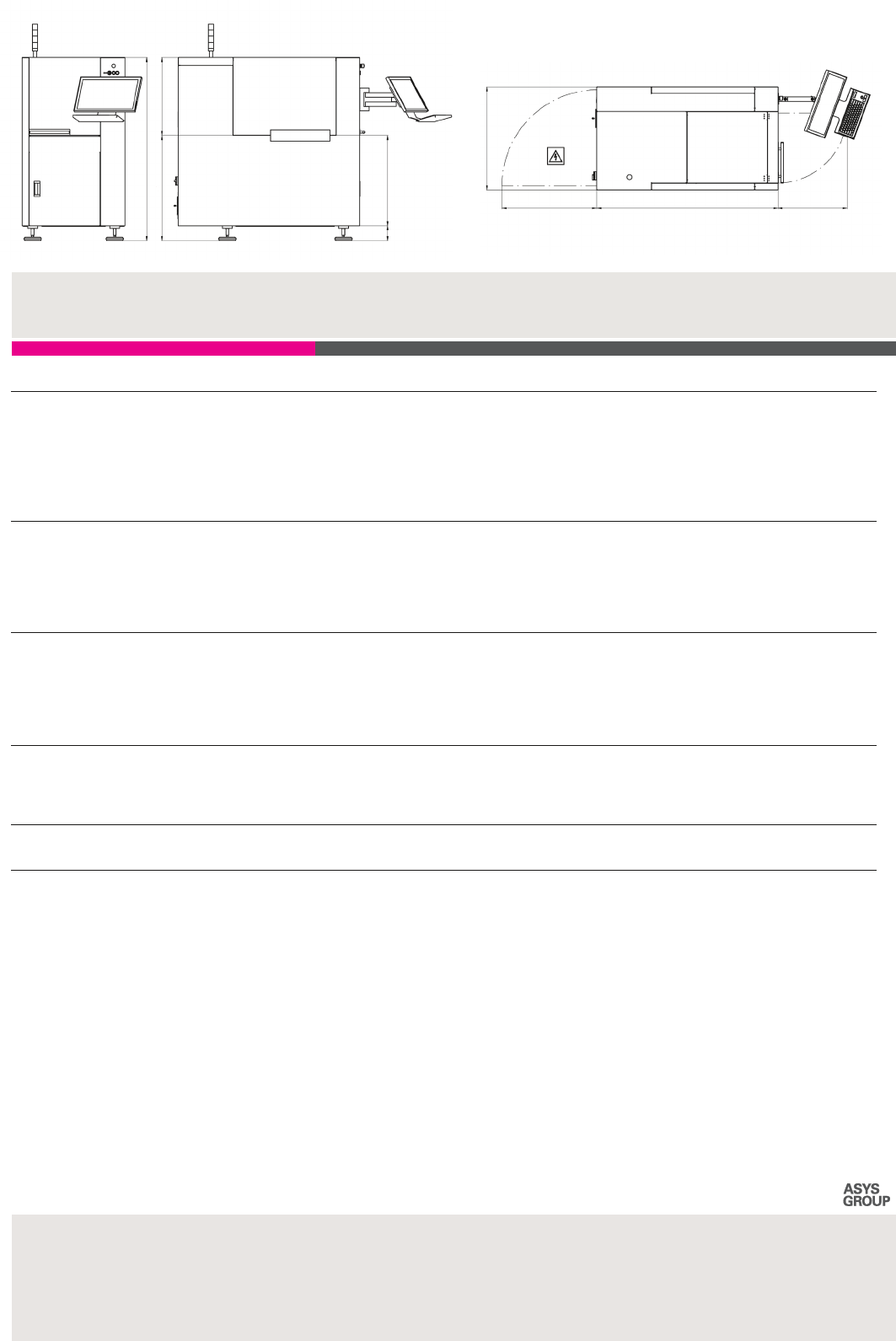

1480
630TH 850
730120
768 5611468
832
Top view:
