Page +$1:+$ 10 SM481 PLUS Feeder Base Ass’y - DC (3/4) CAN FEEDER EXTENSION B OARD CAN CONVEYO R BOARD 5 5 6 2 1 4 3
Page
+$1:+$
9
SM481
PLUS
Feeder Base Ass’y - DC (2/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-006815A ASSY,FEEDER BASE-DC BLOCK L 1
1-1 HP06-900093 STRAIGHT FITTING 1
1-2 HP06-900299 COUPLER 1
1-3 HP14-900089 SPEED CON 1
1-4 HP14-900090 SPEED CON 1
1-5 HP06-900293 ELBOW FITTING 2
1-6 AM03-001731C CABLE ASSY-DOCKING CART IF CABLE ASSY 2
2 HP14-900026 SOLENOID VALVE 1
2-1 HP06-900027 FITTING 1 HP06-900047
2-2 HP06-900050 UNION Y FITTING 1
2-3 HP09-900162 SILENCER 2
3 AM03-006816A ASSY,FEEDER BASE-DC BLOCK R 1
3-1 FC09-002061A DC SME SENSOR BKT 1
4 J71570100C GUIDE BLOCK 2
5 J7057247A POSITIONNING GUIDE 2
Page
+$1:+$
10
SM481
PLUS

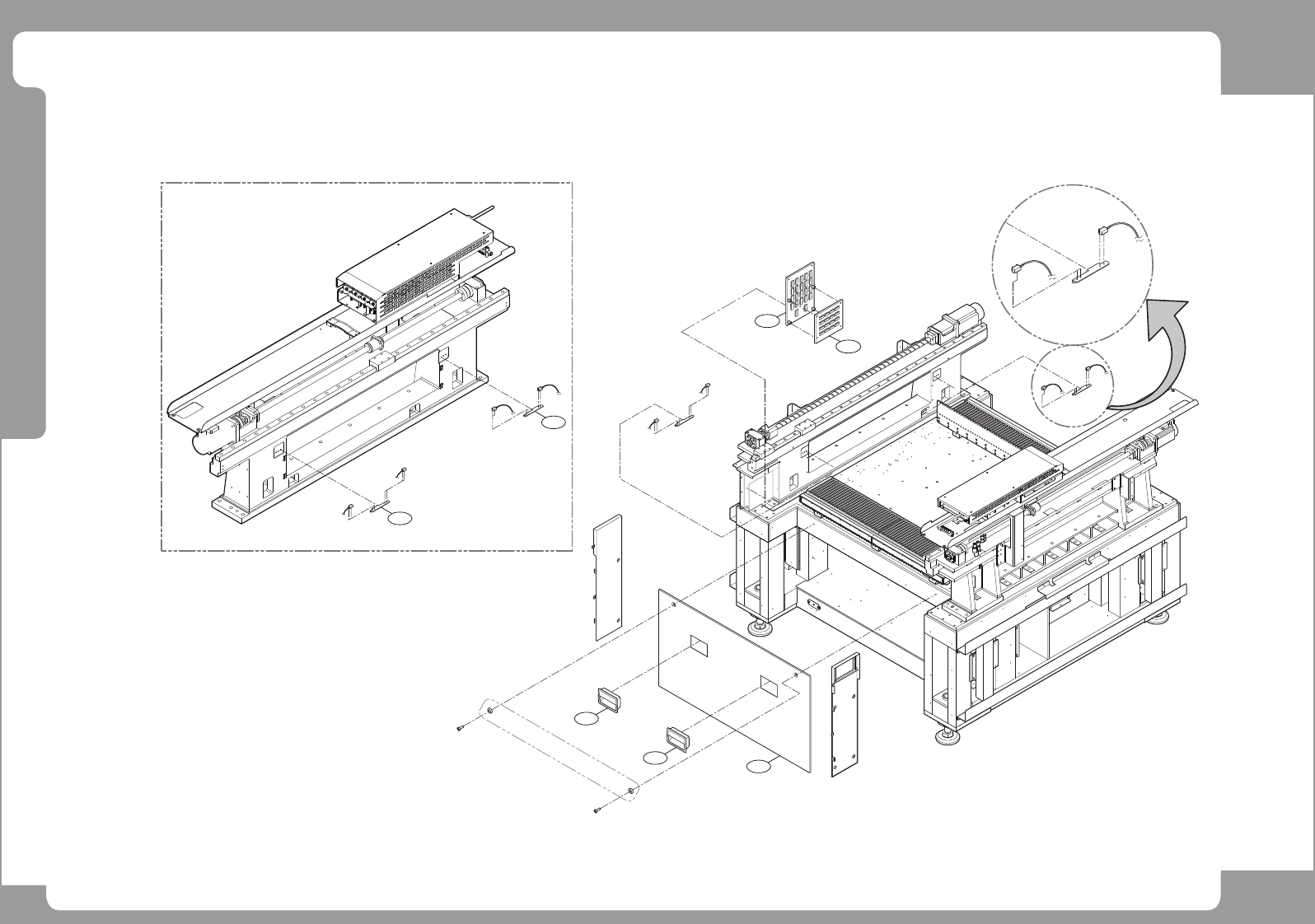

Feeder Base Ass’y - DC (3/4)
CAN FEEDER EXTENSION B
OARD
CAN CONVEYO
R BOARD
5
5
6
2
1
4
3
Page
+$1:+$
11
SM481
PLUS
Feeder Base Ass’y - DC (3/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Reference
1 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1
2 AM03-015857E ASSY,BOARD-FEEDER IO VER 2.0 1 (AM03-000819A / AM03-000819B/
AM03-000819C/ AM03-000819C/ AM03-000819E: ~2016.12)
Old: Version 1.6
New: Version 2.0 (2017.01~)
3 FC09-000977A FRONT SENSOR BKT2 1 J70540267B
4 FC09-000976A FRONT SENSOR BKT1 1 J70540266B/ J70540266C
5 FC29-900144 DRAWER PULL 2
6 FC15-001297A COVER-COVER LFM DC 1
