Page +$1:+$ 20 SM481 PLUS Cover Ass’y (1/3) 22 3 17 23 18 12 14 19 20 16 5 B E A 4 6 4 4 29 6 21 22 15 D 6 1 12 10 8 7 2 11 11 13 9 28 4 26 24 6 A 18 C D 28 C E A 26 B A 1 27 25
Page
+$1:+$
19
SM481
PLUS
Stage CAM Ass’y
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J70590095C CAMERA BOARD COVER 2
2 J91741051A SSA_VIS_FIX_IF_BOARD LEDIF02 2
3 FC15-001295A LIGHT_COVER 1
4 FC09-002220A BRACKET-LIGHT 1
5 AM03-026489B ASSY,BOARD-STAGE SIDE LIGHT BOARD 1
6 AM03-026488B ASSY,BOARD-STAGE OUTER LIGHT 4
7 FC09-002219A BRACKET-LIGHT_G_2 1
8 FC15-001491A COVER-LIGHT COVER 1
9 FC29-900611 HEX SUPPORT 8
10 FC15-001294A COVER-PROFILE 1
11 FC09-002218A BRACKET-GLASS_STOP 2
12 EP12-000044A GLASS,OPTICS-GLASS 1
13 PT02-000048A DIFFUSER,OPTIC-DIFFUSER 1
14 FC29-900610 HEX SUPPORT 4
15 J90600073C LED BOARD ASSY STAGE INNER LIGHT 1
16 FC09-002222A BRACKET-PCB_BASE_2 1
17 FC09-002221A BRACKET-PCB_BASE_1 1
18 FC05-000225A BASE 1
19 FC15-001293A COVER-PROFILE_1 1
20 J9059118A LENS ASSY 1
21 PT02-900001 CCD CAMERA 1
22 FC15-001290A COVER-COVER_1 1
23 FC15-001292A COVER-COVER_COMP 1
24 J7066008D LINK_SHAFT_1 1
25 FC15-001291A COVER_2 1
26 FC18-902837 SEMUS NABE SCREW 8
27 AM03-015218A ASSY,OPTICS-SM482_STAGE_MEGA_35_ASSY 1 AM03-007707B MEGA 35
AM03-015217A ASSY,OPTICS-SM482_STAGE_MEGA_45_ASSY 1 AM03-007727B MEGA 45
28 FC29-900611 HEX SUPPORT 8
29 FC18-902837 SEMUS NABE SCREW 8
30 AM03-015348A ASSY,BOARD-STAGE_INNER_ILL 1
Page
+$1:+$
20
SM481
PLUS

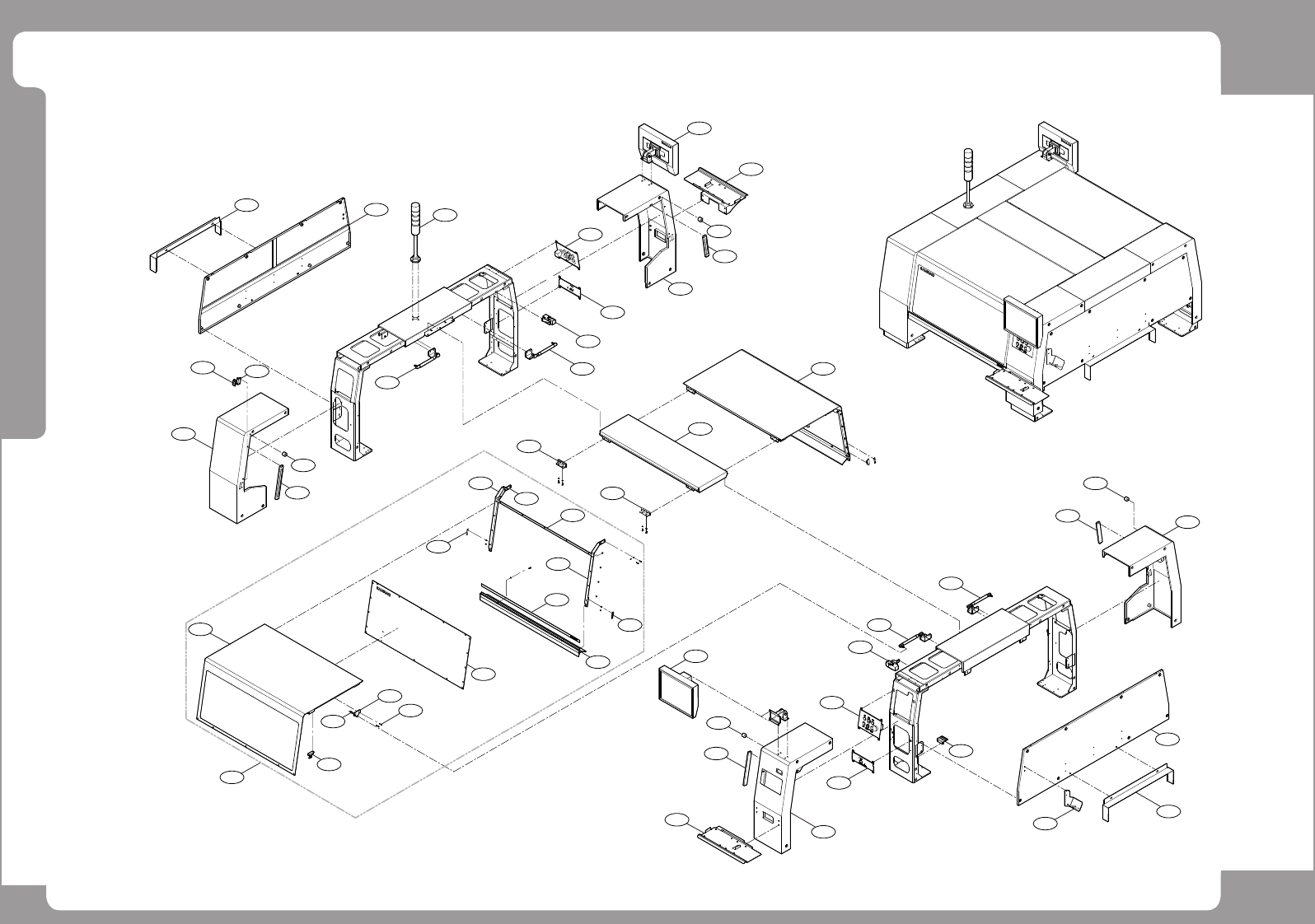

Cover Ass’y (1/3)
22
3
17
23
18
12
14
19
20
16
5
B
E
A
4
6
4
4
29
6
21
22
15
D
6
1
12
10
8
7
2
11
11
13
9
28
4
26
24
6
A
18
C
D
28
C
E
A
26
B
A
1
27
25
Page
+$1:+$
21
SM481
PLUS
Cover Ass’y (1/3)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC15-001006A COVER-CONVEYOR_COVER 2
FC15-001786A COVER-CONVEYOR_COVER_S_TRAY 2 LTS Tray Option
2 FC15-000959A COVER-TOP_SIDE_L 1
3 J7070352A CONNECTOR BRACKET 1
4 AM03-018696A AREA_SENSOR_ASSY 3 J91731033A
5 EP13-900134 TOWER_LAMP 1
6 FC29-004382A DOOR CUSHION 4 J73520001B
7 FC15-000946B COVER-UPPER FL 1 FC15-000946A
8 FC15-000947B UCOVER-UPPER RL 1 FC15-000947A
9 AM03-002143B ASSY,COVER-BARCODE_HANGER3_ASSY_01 1 J9072146A: BARCODE READER
10 FC15-000955A COVER-TOP_CENTER 1
11 J70521087A WINDOW_HINGE 2
12 FC15-000953A COVER-UPPER_SIDE_R 2
13 FC09-001707D BRACKET-WINDOWS_SIDE_GUIDE_L 1
14 FC09-001711A WINDOWS_SIDE_CLAMP 4
15 FC30-000881A PLATE-PC_FIXED_PLATE 1
16 FC09-001706B BRACKET-WINDOWS_SIDE_GUIDE_R 1
17 EP20-900156 DOOR KEY 1
18 FC30-000908B PLATE-MAGNETIC_PLATE 2
19 FC09-001709A HANDLE_PLATE 1
20 FC09-001708B BRACKET-COVER_HANDLE_C 1
21 FC09-000705A BRACKET-GAS_SPRING_BRACKET2 2
22 FC15-001031D COVER-WINDOW_MAIN_PLATE 1
23 CM01-000057B ACRYLIC,RESIN-SM471_PC_COVER ESD 1
24 EP19-900124 AREA_SENSOR 2 OPTION
25 J70521075D GAS_SPRING_BRACKET1 1
26 J70521025A LOWER_IP_PANEL 2
27 FC15-000945B UPPER_FR_RR 1
28 AM03-007149A ASSY,COVER 2
