Page +$1:+$ 25 SM481 PLUS Cover Ass’y (3/3) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 EP07-901 528 F AN_FIL TER 2 2 J90833316A F A N_CABLE_AS SY SM- F AN 00 4 3 FC15-000943B COVER-…
Page
+$1:+$
24
SM481
PLUS

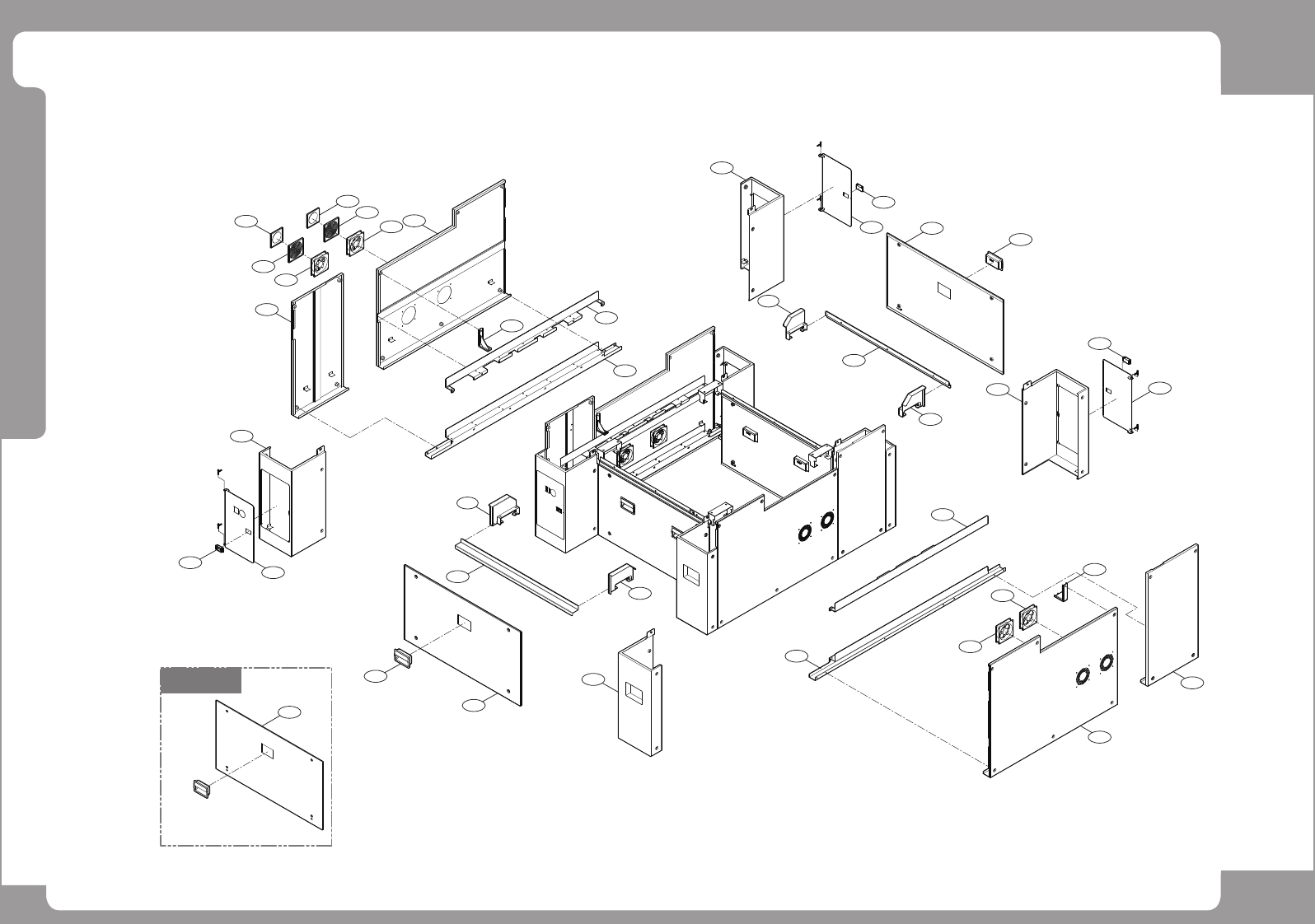

Cover Ass’y (3/3)
6
15
14-2
22
20
2
21
7
4
23
18
5
13
17
29
3
16
2
1
12
9
10
11
9
8
16
19
12
24
25
27
14-1
15
26
2
2
1
8
Option
28
Page
+$1:+$
25
SM481
PLUS
Cover Ass’y (3/3)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 EP07-901528 FAN_FILTER 2
2 J90833316A FAN_CABLE_ASSY SM-FAN00 4
3 FC15-000943B COVER-LOWER_SIDE_2_L 1 FC15-000943A
4 FC15-000952A COVER-LOWER_SIDE_1 1
5 FC15-000949B COVER-LOWER FL 1 FC15-000949A
6 FC29-900217 SLIDE_LATCH 1
7 FC15-000960A LOWER_OPEN_DOOR-A 1
8 FC29-900144 DRAWER PULL 2
9 FC15-003194A COVER-LFM_AL_COVER 2
10 FC15-001341A COVER-FB SIDE COVER FL 1
11 FC15-001344A COVER-FB COVER FRONT 1
12 HP04-000075 FILTER,AIR-fan filter 2
13 FC15-000948B COVER-LOWER FR 1 FC15-000948A
14-1 J70521387A LOWER_CABLE_DUCT-L-2 1
14-2 J70521386A LOWER_CABLE_DUCT-R-2 1
15 FC09-001027B BRACKET-CABLE DUCT S-V 2 J70511018B
16 J70521049A SIDE_COVER_SUPPORT 1
17 FC15-000944B LOWER_SIDE_2_R 1 FC15-000944A
18 FC15-000949B COVER-LOWER FL 1 FC15-000949A
19 FC15-000961A COVER-OPEN_DOOR_B 1
20 FC29-900217 SLIDE_LATCH 1
21 FC15-000961A COVER-OPEN_DOOR_B 1
22 FC29-900217 SLIDE_LATCH 1
23 FC15-000951B COVER-LOWER RR 1 FC15-000951A
24 FC15-001340A COVER-FB SIDE COVER FR 1
25 FC15-001342A COVER-FB SIDE COVER RR 1
26 FC15-001345A COVER-FB COVER REAR 1
27 FC15-001343A COVER-FB SIDE COVER RL 1
28 FC15-001297A COVER-COVER LFM DC 2 OPTION
29 FC15-001744A COVER-LOWER_SIDE_R2;SPCC 1
Page
+$1:+$
26
SM481
PLUS

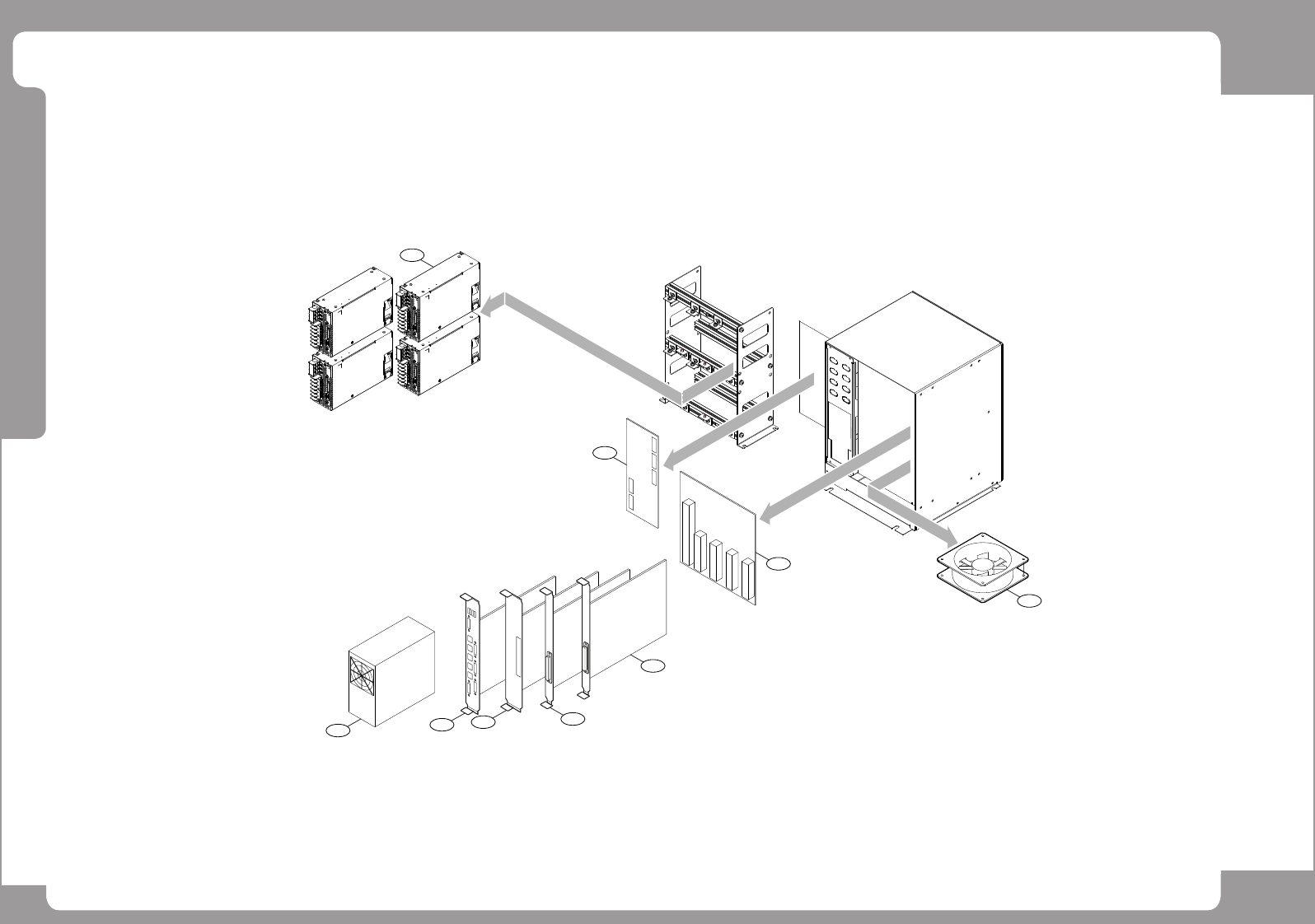

Control Rack Ass’y
1
8
6
7
5
5
4
3
2
