Page +$1:+$ 29 SM481 PLUS Base Frame Ass’y NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 FC05-000218G BASE-FRAME 1 FC05-0002 18F 2 FC15-000983A COVER BOTT OM FR 1 3 FC15-000984A COVER …

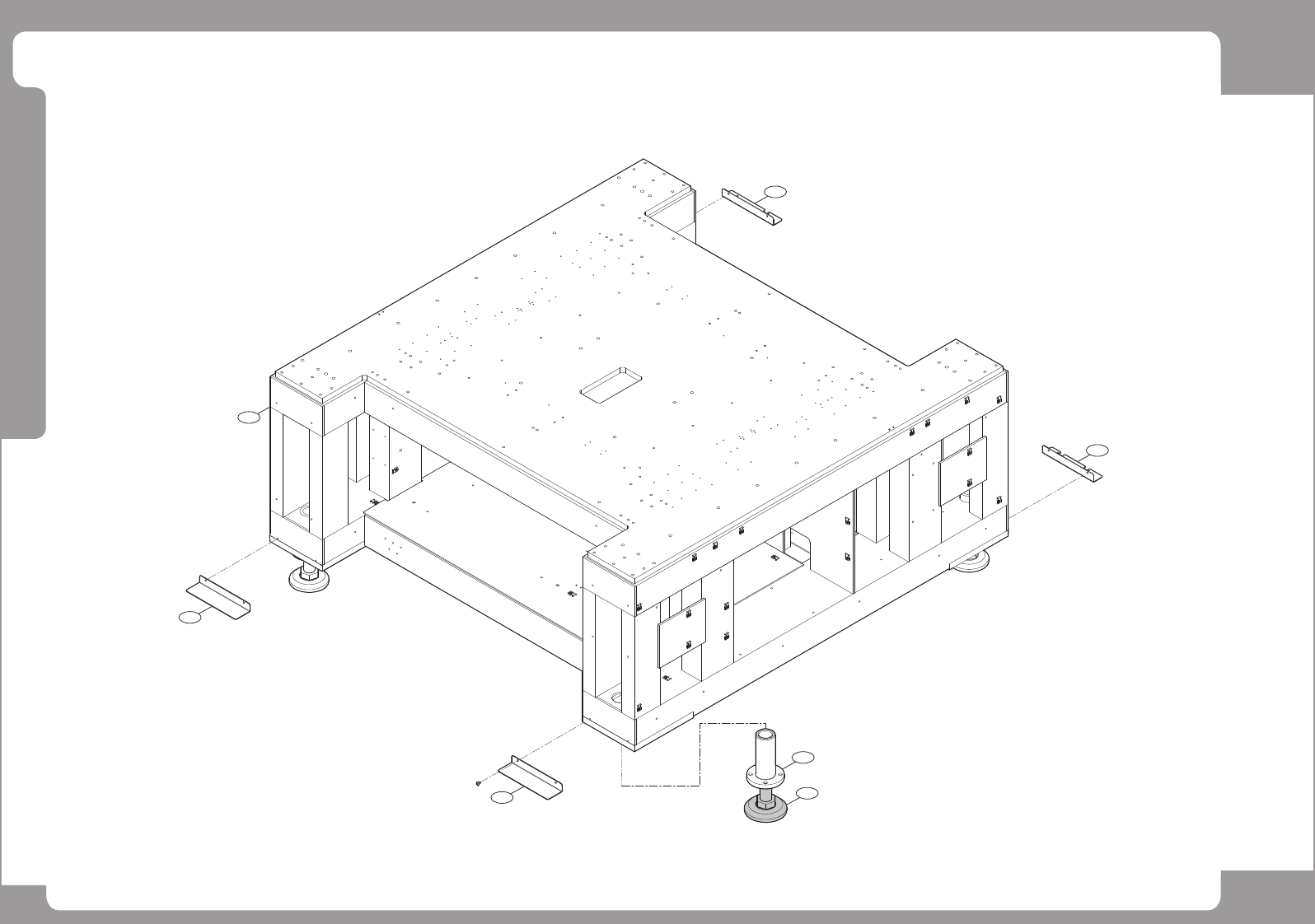

Page
+$1:+$
28
SM481
PLUS
Base Frame Ass’y
2
4
5
6
7
3
1
Page
+$1:+$
29
SM481
PLUS
Base Frame Ass’y
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC05-000218G BASE-FRAME 1 FC05-000218F
2 FC15-000983A COVER BOTTOM FR 1
3 FC15-000984A COVER BOTTOM FL 1
4 FC15-000985A COVER BOTTOM RR 1
5 FC15-000986A COVER-BOTTOM RL 1
6 J7051010D HOUSING-FOOT 4
7 FC28-000176 FOOT 4 AM03-000098
Page

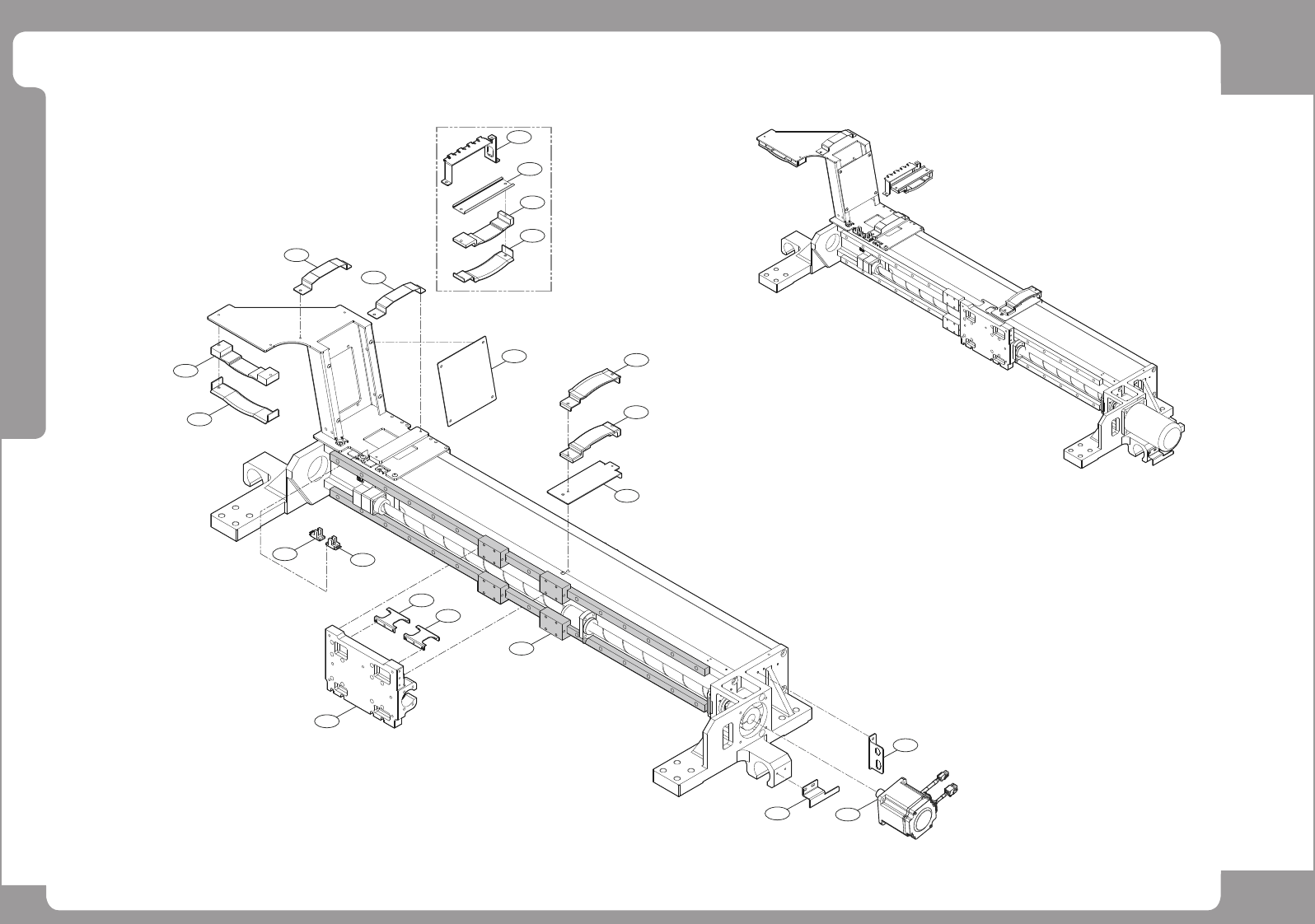

+$1:+$
30
SM481
PLUS
X-Y Frame Ass’y(1/4)
1
2
3
4
4
3
6
12
12
7
10
5
5
8
9
13
10
11
14
15
16
