SM481_PLUS_TRM(Ver2.0_CS20.11) - 第56页
Page +$1:+$ 40 SM481 PLUS ANC Ass’y 5 14 5 6 11 1 2 9 26 27 7 10 16 12 13 15 14 8 13 12 11 3 4 17 18 5 5 19 23 22 20 9 21 24 25
Page
+$1:+$
39
SM481
PLUS
Page
+$1:+$
40
SM481
PLUS

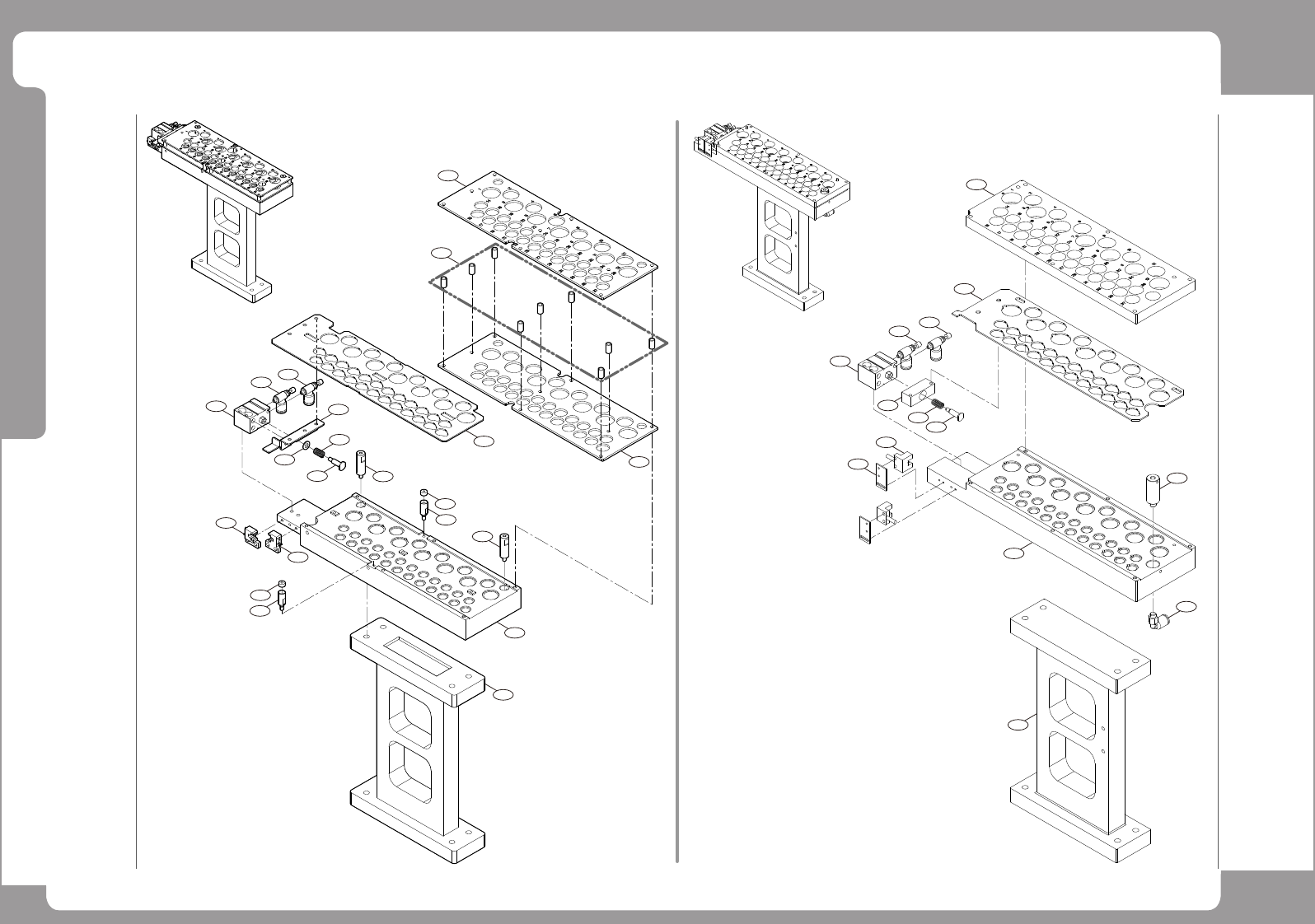

ANC Ass’y
5
14
5
6
11
1
2
9
26
27
7
10
16
12
13
15
14
8
13
12
11
3
4
17
18
5
5
19
23
22
20
9
21
24
25
Page
+$1:+$
41
SM481
PLUS
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC05-000212A TOP_COVER 1
2 FC18-000621A COVER_SPACE 9
3 FC09-002208A TOP_COVER_L 1
4 FC29-001527A SHUTTER 1
5 HP14-900087 SPEED CONTROLLER 2
6 AM03-004198A ANC SENSOR CABLE ASSY[SM-CV010] 1
7 FC09-002171A SHUTTER_BKT 1
8 FC05-000215A BASE-ANC_BASE 1
9 FC38-000093A SPRING 1
10 FC18-000619A SPACE_PIN 1
11 AM03-000621A DRAIN SENSOR HARNESS ASSY V8 2
12 J7153373A FIDUCIAL DISK 2
13 FC09-002173A REF_SHAFT 2
14 FC09-002172A FID_SHAFT 2
15 FC05-000214A PLATE 1
16 1
17 FC15-002505A COVER-ANC COVER 37HOLE 1
18 FC15-002506A COVER-SHUTTER 37HOLE 1
19 HP03-000083 CYLINDER 1
20 FC05-000306A BASE-SHUTTER_SPT 1
21 FC18-000894A PIN-SPACE_PIN 1
22 J3212027A MICRO PHOTO SENSOR 2
23 FC30-001554B PLATE-ANC_SNS_PLATE 2
24 FC30-002050B PLATE-ANC_PLATE_37HOLE 1
25 FC05-000518A BASE-37HOLE_ANC_BASE 1
26 J1301188 FITTING 1
27 FC05-000307A BASE-TOOL_BASE 1
